Application Examples

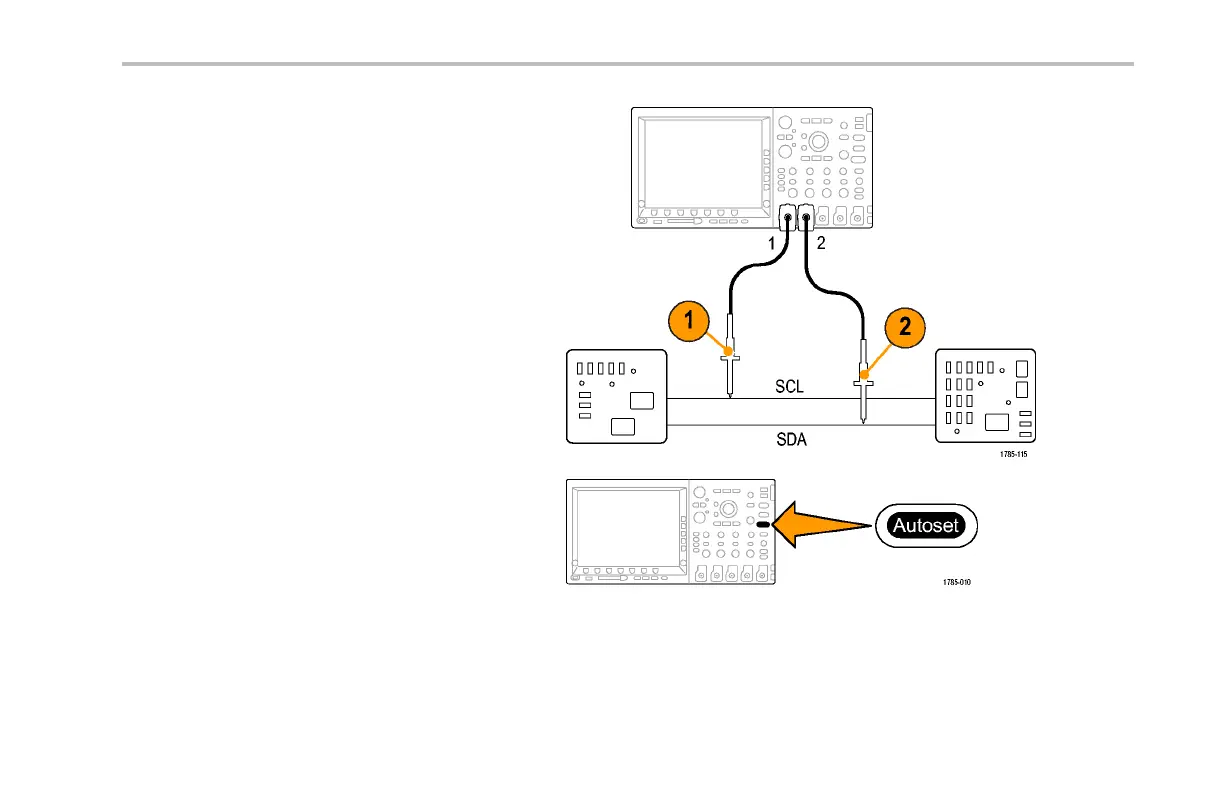

1. Connect the channel 1 probe to the clock line.
2. Connect the channel 2 probe to the data line.
3. Push Autoset.
DPO4000 Series User Manual 239
