Application E xamp les

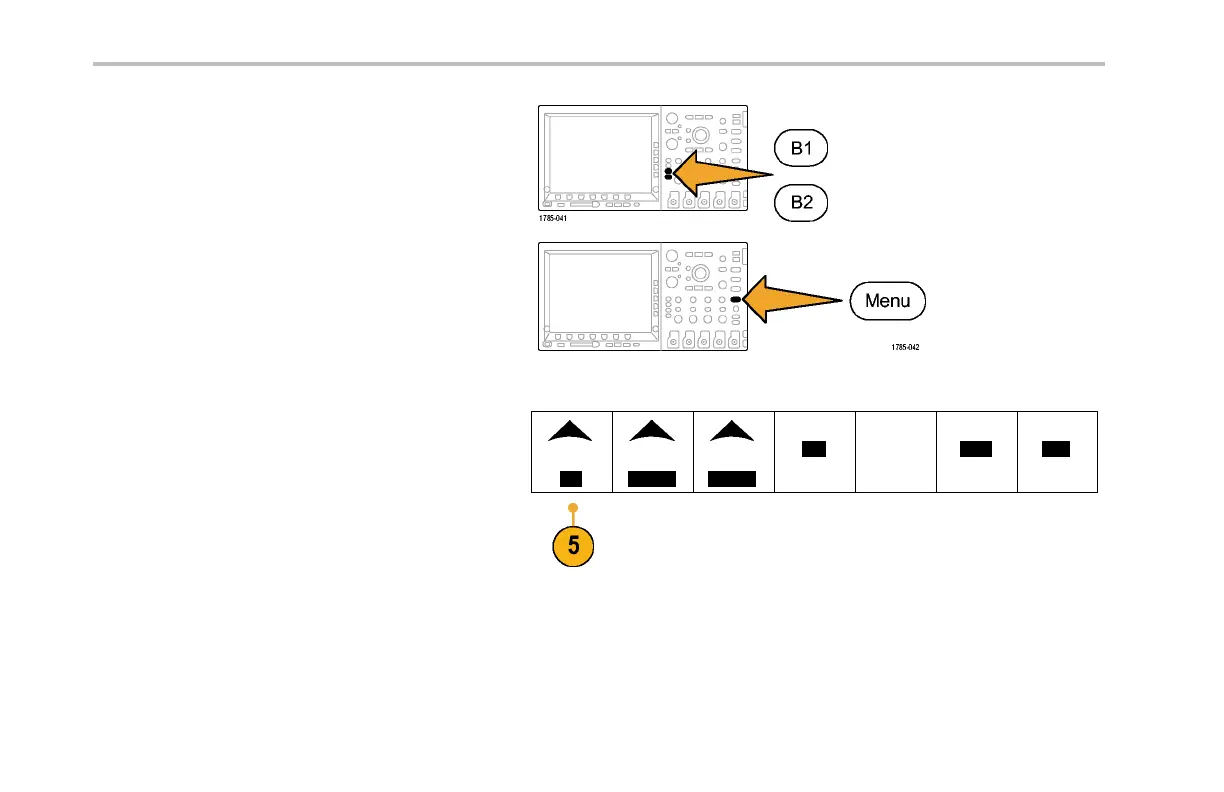

4. Push the B1 button and enter the parameters
of your I
2
C bus in the resulting screen menus.
5. Push Trigger Menu.
6. Push Type to select Bus. Enter trigger
parameters in the resulting screen menus.
Type
Bus
Source Bus
B1 (I2C)
Trigger On
Address
Address
07F
Direction
Read
Mode
Auto
& Holdoff
240 DPO4000 Series User Manual
