Get Acquainted with the Instrument

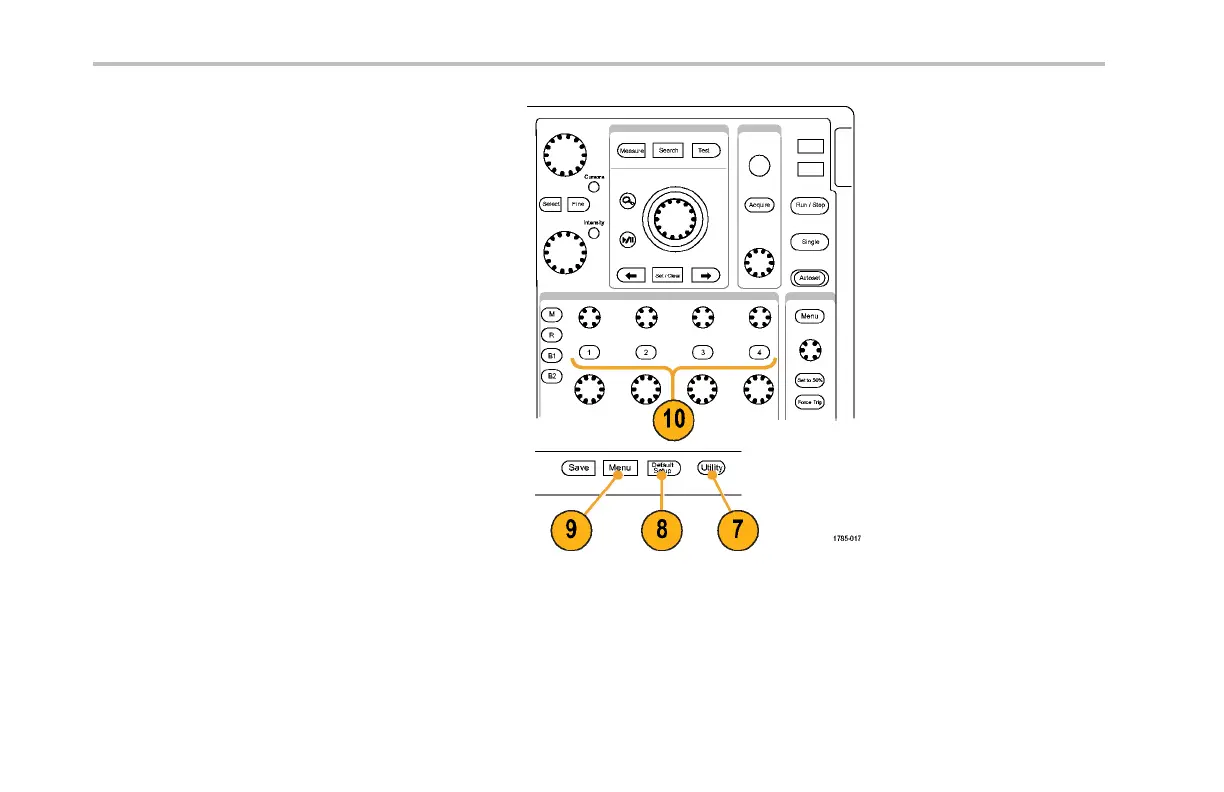

7. Utility. Push to activate the system utility
functions, such as selecting a language or
setting the date/time.
8. Default Setup. Push to restore the
oscilloscope to the default settings.
9. Save / Recall Menu. Pushtosave
and recall setups, waveforms, and
screen images to internal memory, a
CompactFlash card, or a USB storage
device.
10. Channel 1,2,3,or4. Push to set vertical
parameters for input waveforms and to
display or remove the corresponding
waveform from the display.
50 DPO4000 Series User Manual
