Get Acquainted with the Instrument

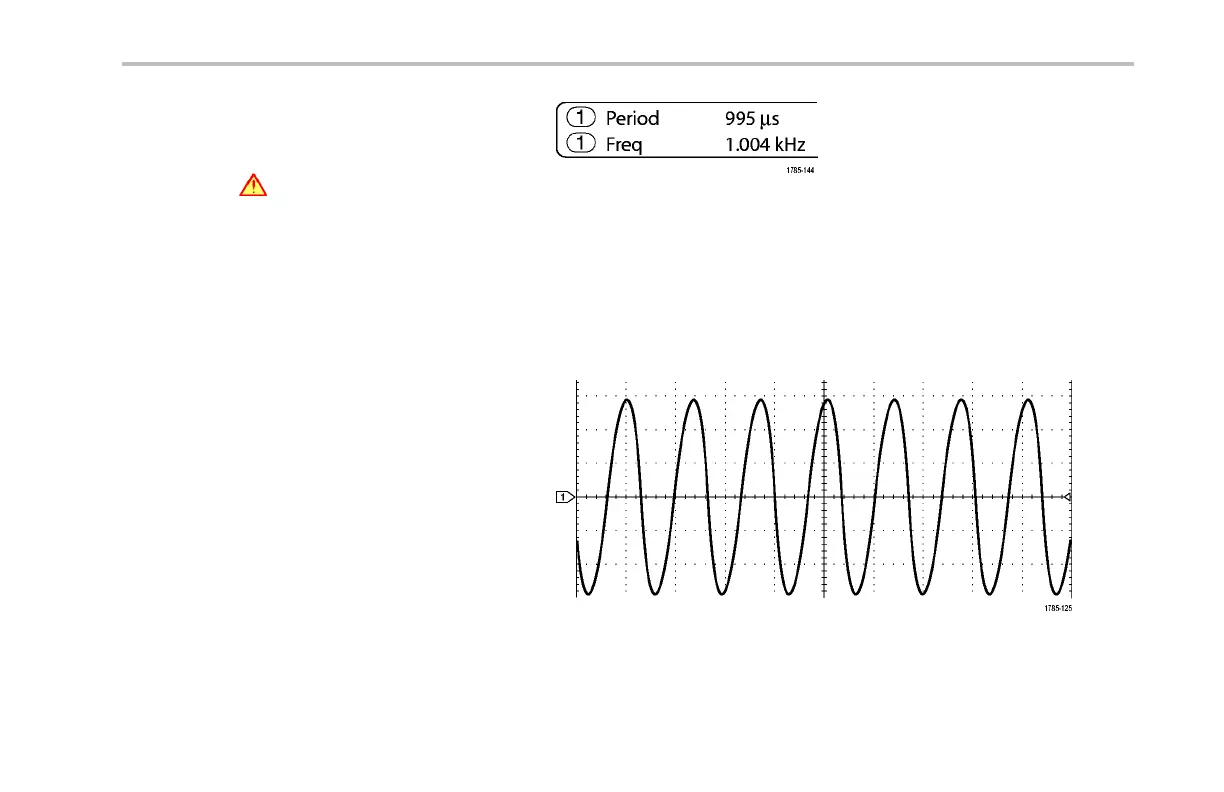

13. Measurem ent readouts show the select ed
measurements. You can select up to four
measurements to display at one time.
A
symbol appears instead of the
expected numerical measurement if a
vertical clipping condition exists. Part of the
waveform is above or below the display. To
obtain a proper numerical measurem ent,
turn the vertical scale and position knobs
to make all of the waveform appear in the
display.
14. The waveform baseline indicator shows
the zero-volt level of a waveform (ignoring
the effect of offset). The icon colors
correspond to the waveform colors.
DPO4000 Series User Manual 65
