Reference

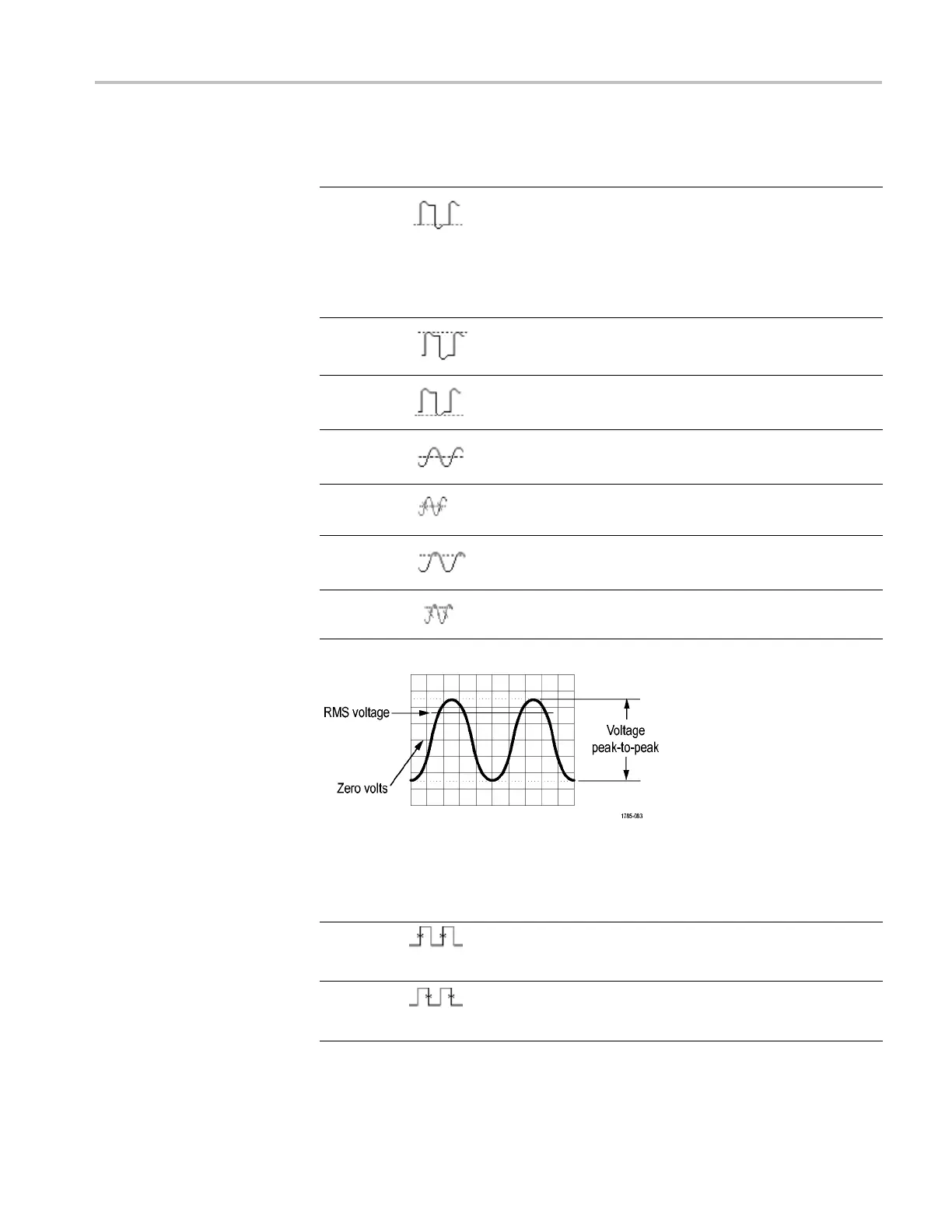

Amplitude measurements (cont.)
Measurement Description
Low
This value is used as 0% whenever high reference, mid reference,
or low r eference values are needed, such as in fall time or
rise time measurements. Calculate using either the min/max
or histogram method. The min/max method uses the minimum
value found. The histogram method uses the most common value
found below the midpoint. This value is measured over the entire
waveform or gated region.
Max The most positive peak voltage. Max is measured over the entire
waveform or gated region.
Min The most n
egative peak voltage. Min is m easured over the entire
waveform or gated region.
Mean
The arithmetic mean amplitude over the entire waveform or gated
region.
Cycle
Mean
The arithmetic mean over the first cycle in the waveform or the
first cycle in the gated region.
RMS The tru
e Root Mean Square voltage over the entire waveform or
gated region.
Cycle
RMS
The tru
e Root Mean S quare voltage over the firstcycleinthe
waveform or the first cycle in the gated region.
Mis
cellaneous measurements
Mea
surement
Des
cription
Rising
Edg
e
Count
The
number of positive transitions from the low reference value to
the high reference value in the waveform or gated region.
Fa
lling
Edge
Count
The number of negative transitions from the high reference value to
the low reference value in the waveform or gated region.
TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual 89
