Operating Basics
Position (1 and
2). Positions a waveform vertically.
1&2Menu. Displays the Vertical menu selections and toggles the display of the
channel waveform on and off.
Scale (1 & 2). Selects vertical scale factors.

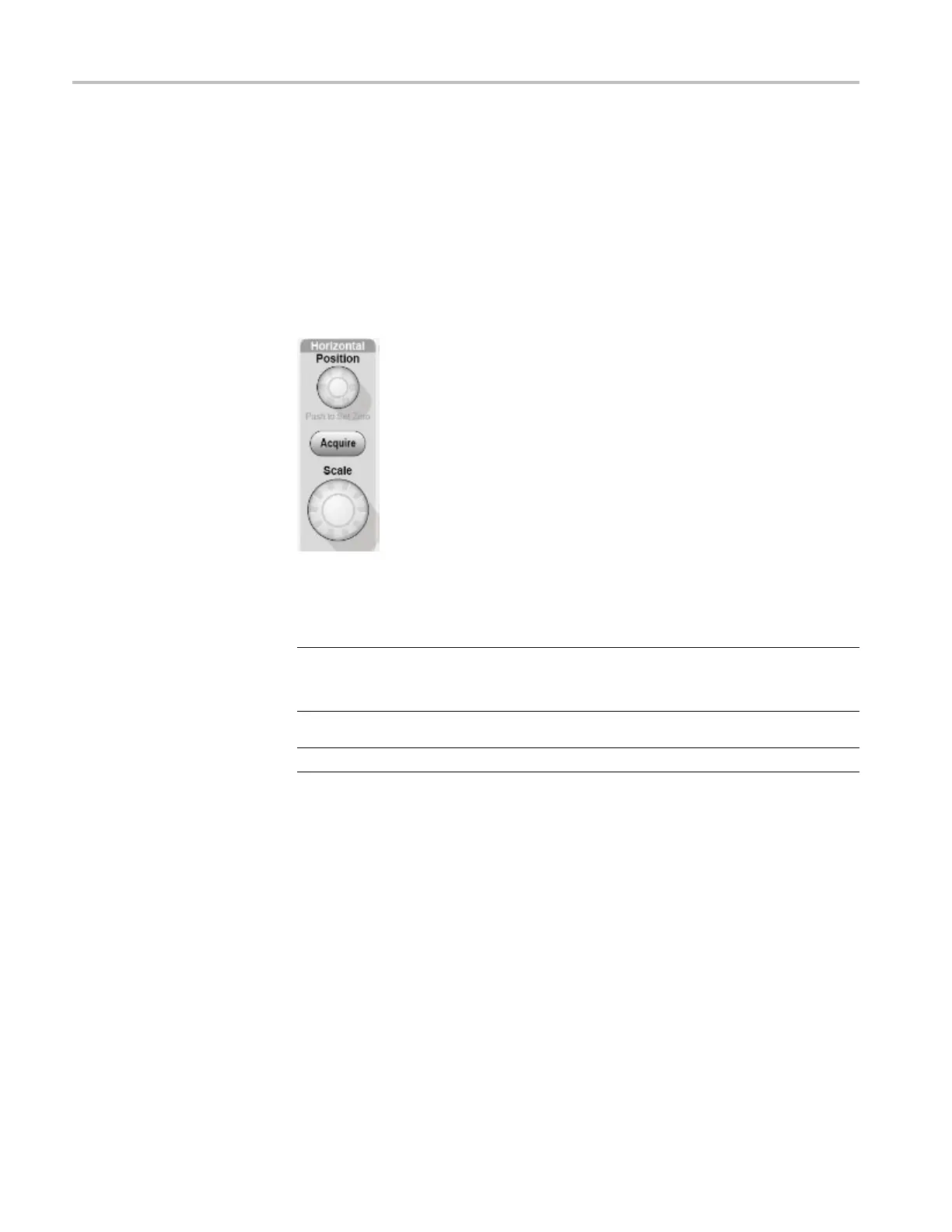

Horizontal Controls
Position. Adjusts the horizontal position of all channel and math waveforms. The
resolution of this control varies with the time base setting.
NOTE.
To make a large adjustment to the horizontal position, turn the Horizontal
Scale knob to a larger value, c hange the horizontal position, and then turn the
Horizontal Scale knob back to the previous value.
NOTE
. To set the horizontal position to zero, push the horizontal position knob.
Acquire. Displays the acquisition modes — Sample, Peak Detect, and Average.
Sc
ale. Selects the horizontal time/division (scale factor).
12 TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual
