USB Flash Drive and Device Ports
This chapter describes how to use the Universal Serial Bus (USB) ports on the
oscilloscope to do the following tasks:
Save and recall waveform data or setup data, or save a screen image
Transfer waveform data, setup data, or a screen image to a PC
Control the oscilloscope with remote commands
To use the PC Communications software, launch and refer to the online help
from the software.
USB Flash Drive Port
ThefrontoftheoscilloscopehasaUSBFlashDriveporttoaccommodateaUSB
ash drive for le storage. The oscilloscope can save data to and retrieve data
from the ash drive.

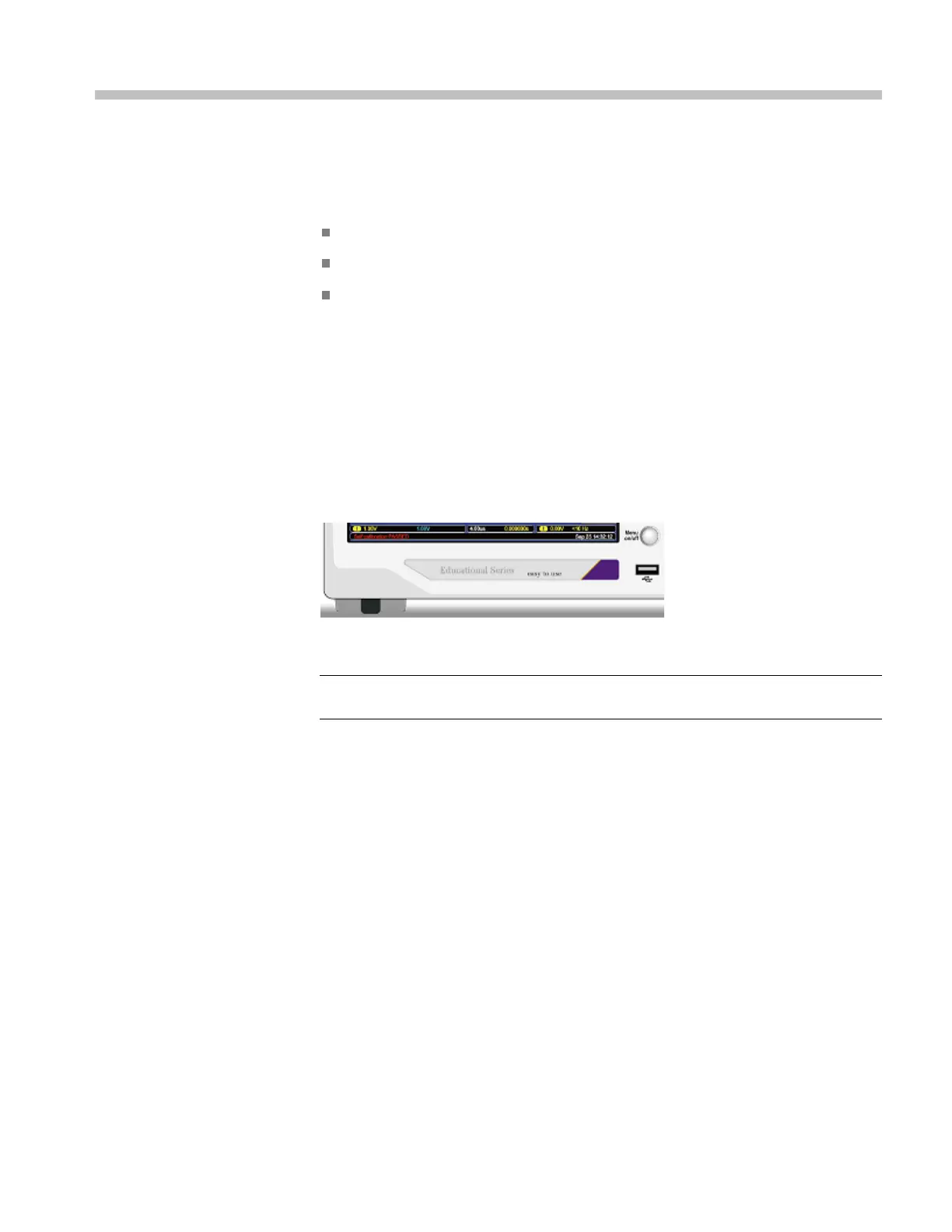

USB Flash Drive port
NOTE. The oscilloscope can only support ash drives with a storage capacity
of 64 GB or less.
To connect a USB ash drive, follow these steps:
1. Align the USB ash drive with the USB Flash Drive port on the o scilloscope.
Flash drives are shaped for p roper installation.
2. Insert the ash drive into the port until the drive is fully inserted.
For ash drives with an LED, the drive "blinks" while the oscilloscope writes
data to or reads data from the drive. The oscilloscope also displays a clock
symbol to indicate when the ash drive is active.
After a le i
s saved or retrieved, the LED on the drive (if any) stops blinking,
and the oscilloscope removes the clock. A hint line also displays to notify you
that the save or recall operation is c omplete.
ToremoveaUSBash drive, wait until the LED on the drive (if any) stops
blinking or until the hint line appears that says the operation is complete, grab the
edge of the drive, a nd extract the drive from the port.
TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual 59
