Appendix B: TPP0051, TPP0101 and TPP0201 Series 10X
Passive Probes Information
The TPP0051, TPP0101 & TPP0201 Series 10X Passive Probes are high
impedance, passive probes with 10X attenuation. They are designed for use with
TBS1000B oscilloscopes. These oscilloscopes have 20 pF of input capacitance.
The compensation range of these probes is 15 – 25 pF.
The probes have no user- or Tektronix-serviceable parts.
WARNING. Do not float the TPP0051, TPP0101 and TPP0201 probes on any
oscilloscope.

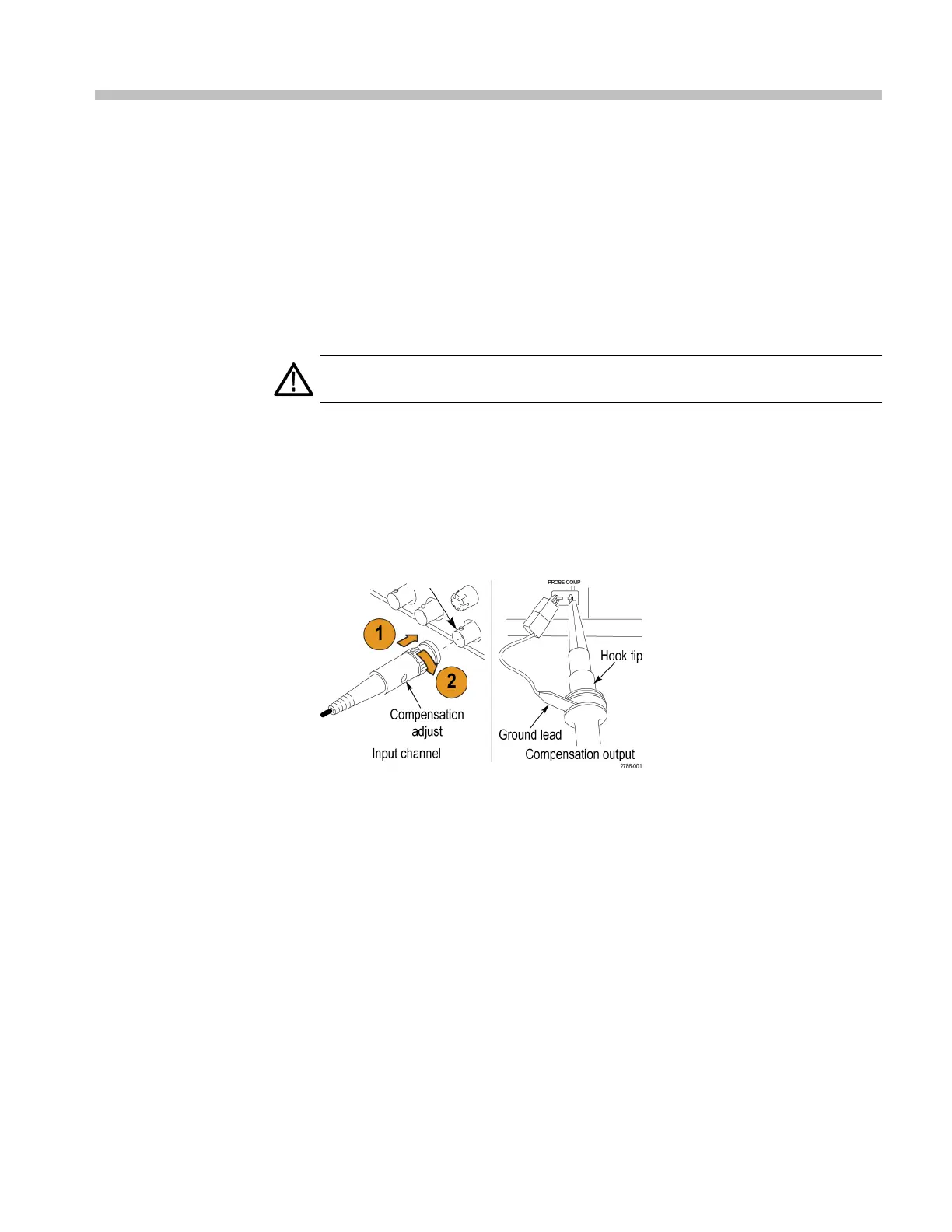

Connecting the Probe to the Oscilloscope
Connect the p robe as shown i n the illustrations below.
Compensating the Probe
Due to variations in oscilloscope input characteristics, the low-frequency
compensation of the probe may need adjustment after moving the probe from
one oscilloscope channel to another.
If a 1 kHz calibrated square wave displayed at 1 ms/division shows significant
differences between the leading and trailing edges, perform the following steps to
optimize low-frequency compensation:
TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual 113
