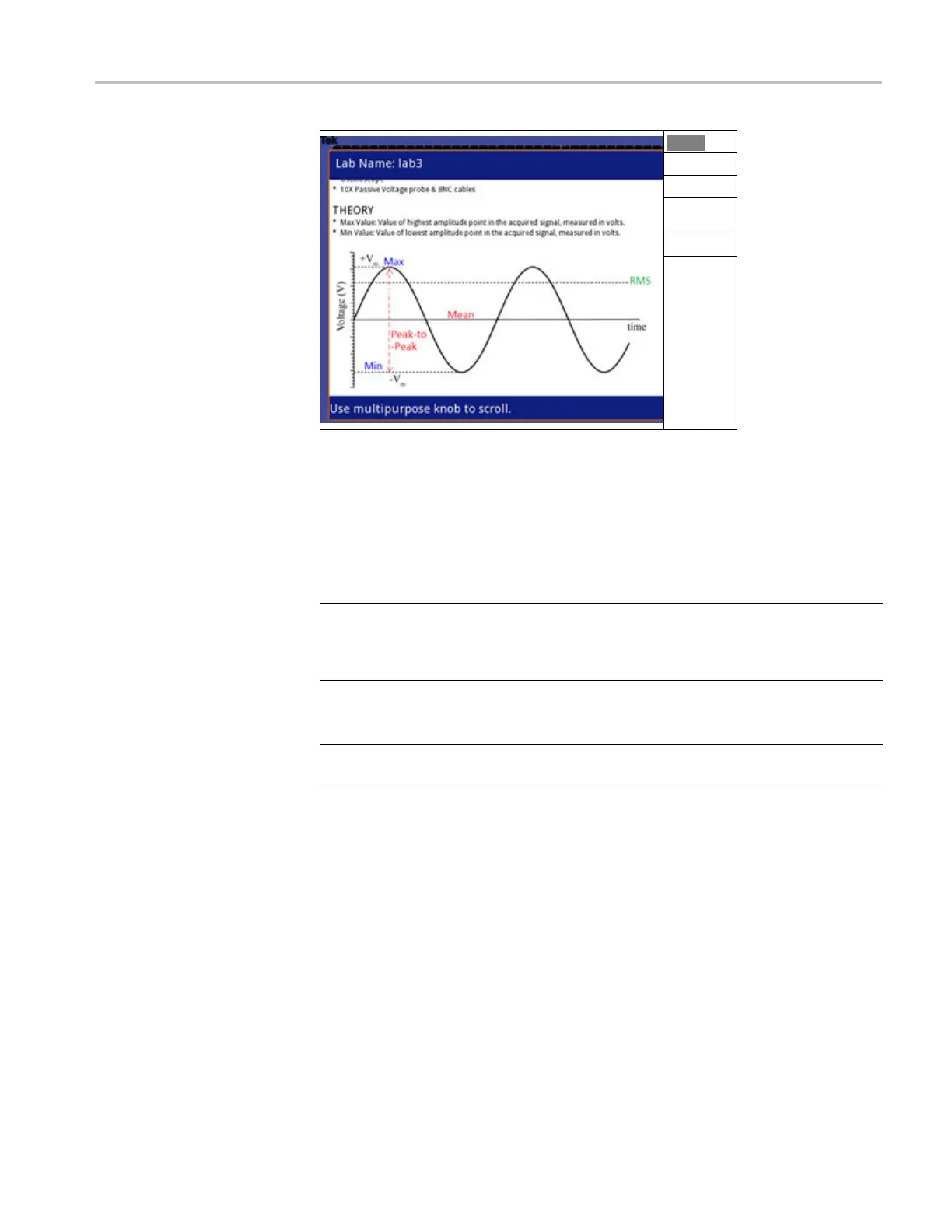

Reference
Course
Overview
Procedure
Data
Collection
Reports
Back
Cursor
Push the Cursor button to display the measurement cursors and Cursor Menu,
andthenturntheMultipurpose knob to change the position of a cursor.
Options Settings Comments
Type
1
Time, Amplitude, Off Select and display the measurement
cursors; Time measures time, frequency,
and amplitude; Amplitude measures
amplitude, such as current or voltage
Source Ch1, Ch2, FFT, Math, Ref
A, Ref B
Choose the waveform on which to take
the cursor measurements
Cursor readouts display the measurement
Δ
Displays the absolute value of the
difference (delta) between the cursors
TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual 79
