Getting Started
Manual Probe C
ompensation

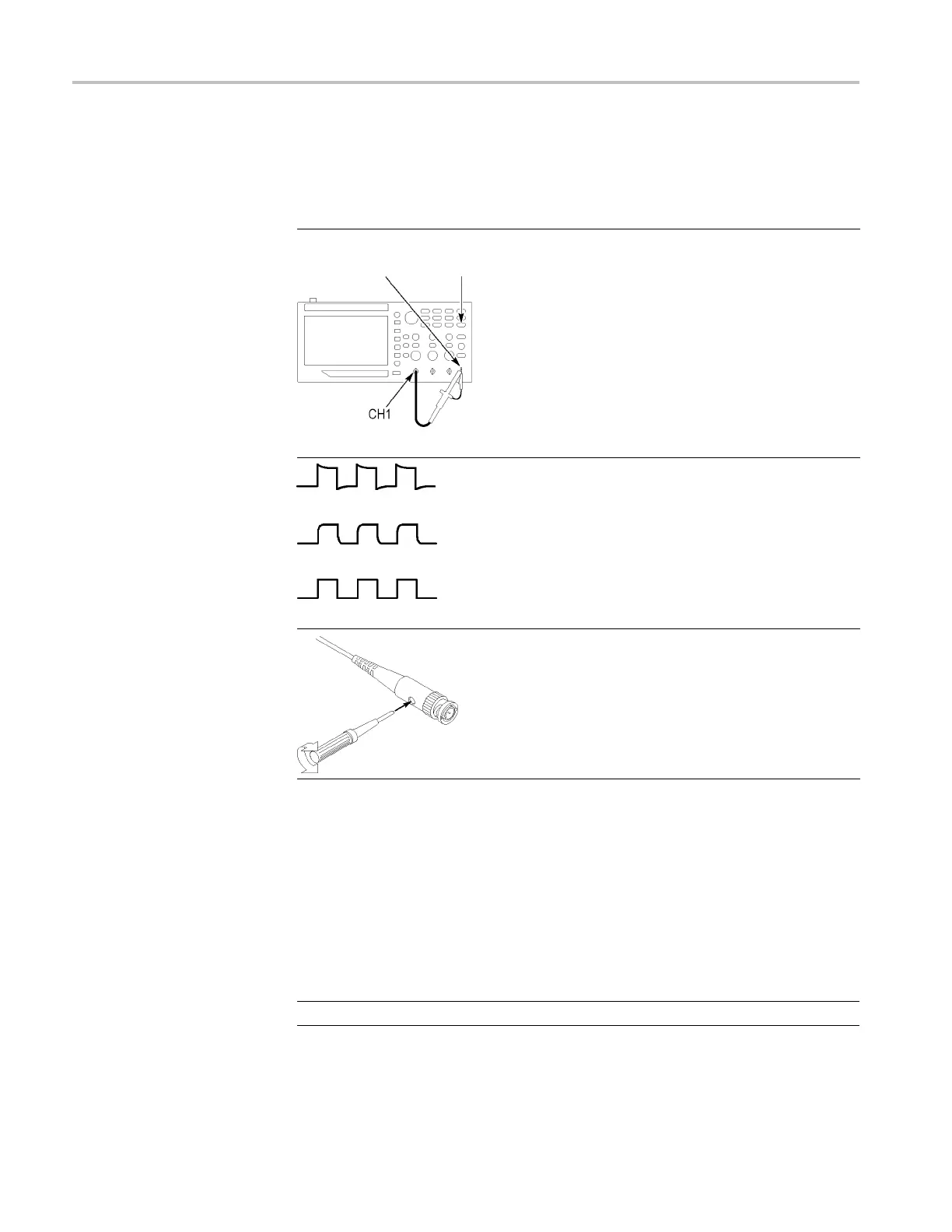

You can manually perform this adjustment to match your probe to the input
channel.
PROBE COMP
Autoset
button
1. Push the 1 ► Probe ► Voltage ► Attenuation
option and select 10X. Connect the appropriate
TPP0051, TP
P0101, or TPP0201 probe to
channel 1 on the oscillos cope. If you u se the
probe hook-tip, ensure a proper connection by
firmly inse
rting the tip onto the probe.
2. Attach the probe tip to the P RO BE C OM P
~5V@1kHz terminal and the reference lead to
the PROBE C
OMP chassis terminal. Display the
channel, and then push the Autoset button.
Overcompen sated
Undercompensated
Compensate d c orrectly
3. Check the shape of the displayed waveform.
4. If necessary, adjust your probe.
Repea
t as necessary.
Probe Attenuation Setting
Probes are available with various attenuation factors which affect the vertical
scale of the signal.
Select the factor that matches the attenuation of your probe. For example, to
match a probe set to 10X connected to CH 1, push the 1 ► Probe ► Voltage ►
Attenuation option, and select 10X.
NOTE. The default setting for the Attenuation option is 10X.
6 TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual
