Application Examples
5. Push the Source
side-menu button. A pop-out menu should appear showing a
scroll-able list of the available sources.
6. Turn the Multi
purpose knob to highlight Ch1.
7. Push the Multipurpose knobtoselectCh1.
8. Push the Cursor 1 option button.
9. Turn the Multipurpose knob to place a cursor on the first peak of the ring.
10. Push the Cursor 2 option button.
11. Turn the Multipurpose knob to place a cursor on the second peak of the ring.

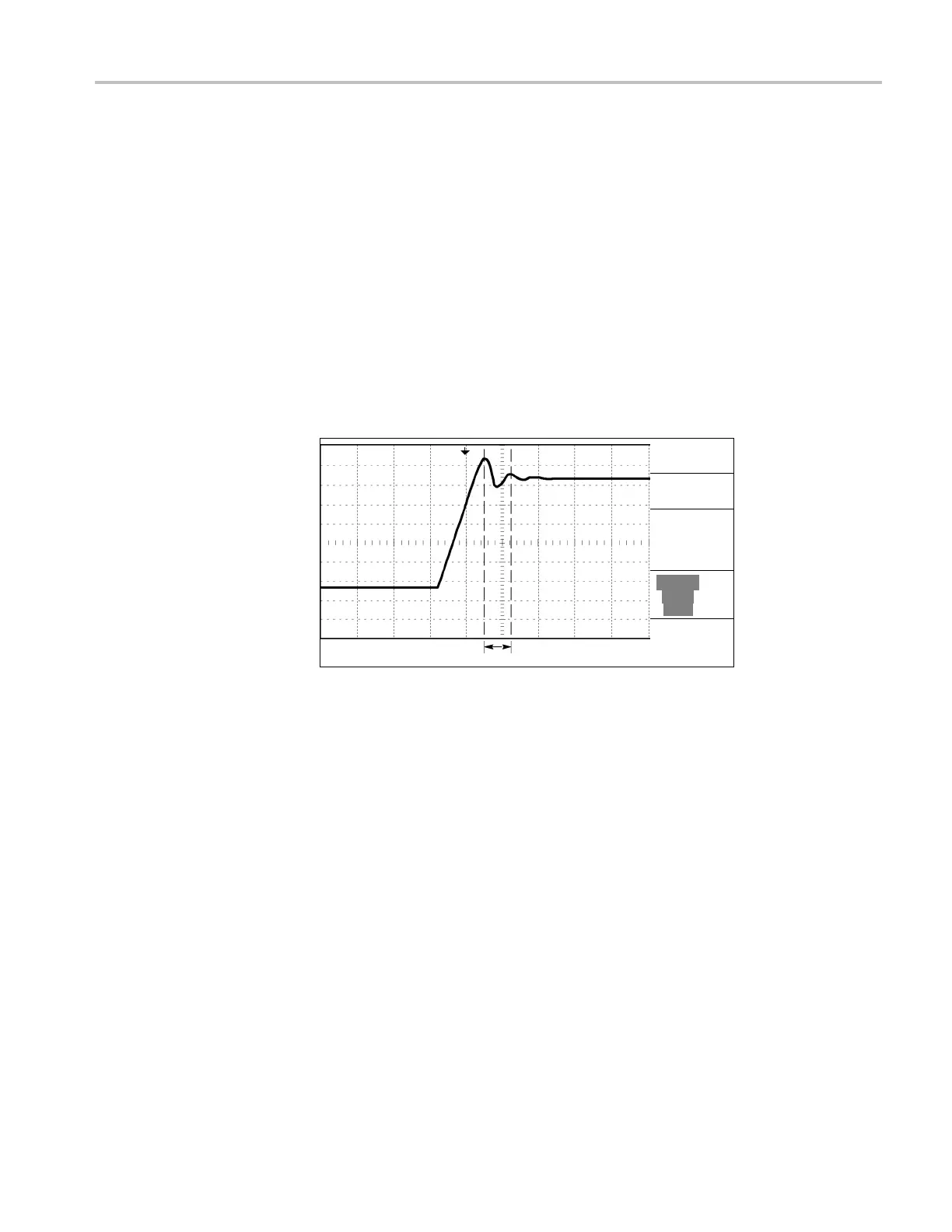

You ca n se
etheΔ (delta) time and frequency (the measured ring fre quency)
in the Cursor Menu.
Type
Time
Source
Ch1
Δt 540.0ns
1/Δt
1.852MHz
ΔV 0.44V
Cursor1
180ns
1.40V
Cursor2
720ns
0.96V
12. Push the Type side-menu button. A pop-out menu should appear showing a
scroll-able list of the available cursor types.
13. Turn the Multipurpose knob to highlight Amplitude.
14. Push the Multipurpose knob to select Amplitude.
15. Push the Cursor 1 option button.
16. Turn the Multipurpose knob to place a cursor on the first peak of the ring.
17. Push the Cursor 2 option button.
18. Turn the Multipurpose knob to place Cursor 2 on the lowest part of the ring.
You can see the amplitude of the ring in the Cursor Menu.
TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual 31
