Application Examples
Type
Amplitude
Source

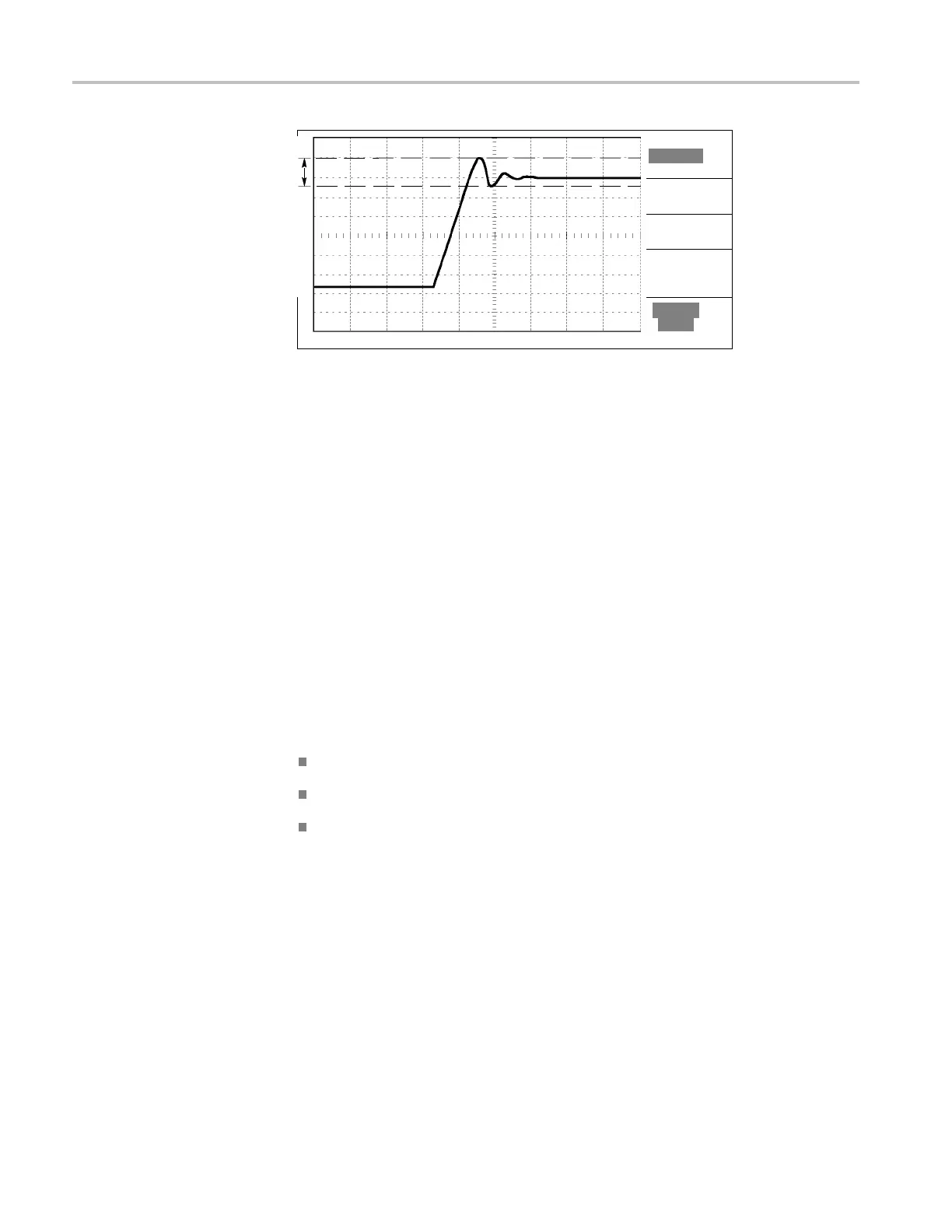

Ch1
ΔV 640mV
Cursor 1
1.46V
Cursor 2
820mV
Measuring Pulse Wid th
If you are analyzing a pulse waveform and you want to know the width of the
pulse, fol
low these steps:
1. Push the Cursor button to see the Cursor Menu.
2. Push the Type side-menu button. A pop-out menu should appear showing a
scroll-able list of the available cursor types.
3. Turn the Multipurpose knob to highlight Time.
4. Push the Multipurpose knob to select Time.
5. Push the Cursor 1 option button.
6. Turn the Multipurpose knob to place a cursor on the rising edge of the pulse.
7. Push t
he Cursor 2 option button.
8. Turn the Multipurpose knob to place a cursor on the falling edge of the pulse.
You can see the following measurements in the Cursor Menu:
The time at Cursor 1, relative to the trigger.
The time at Cursor 2, relative to the trigger.
The Δ (delta) time, which is the pulse width measurement.
