Analyzing Wavef
orms

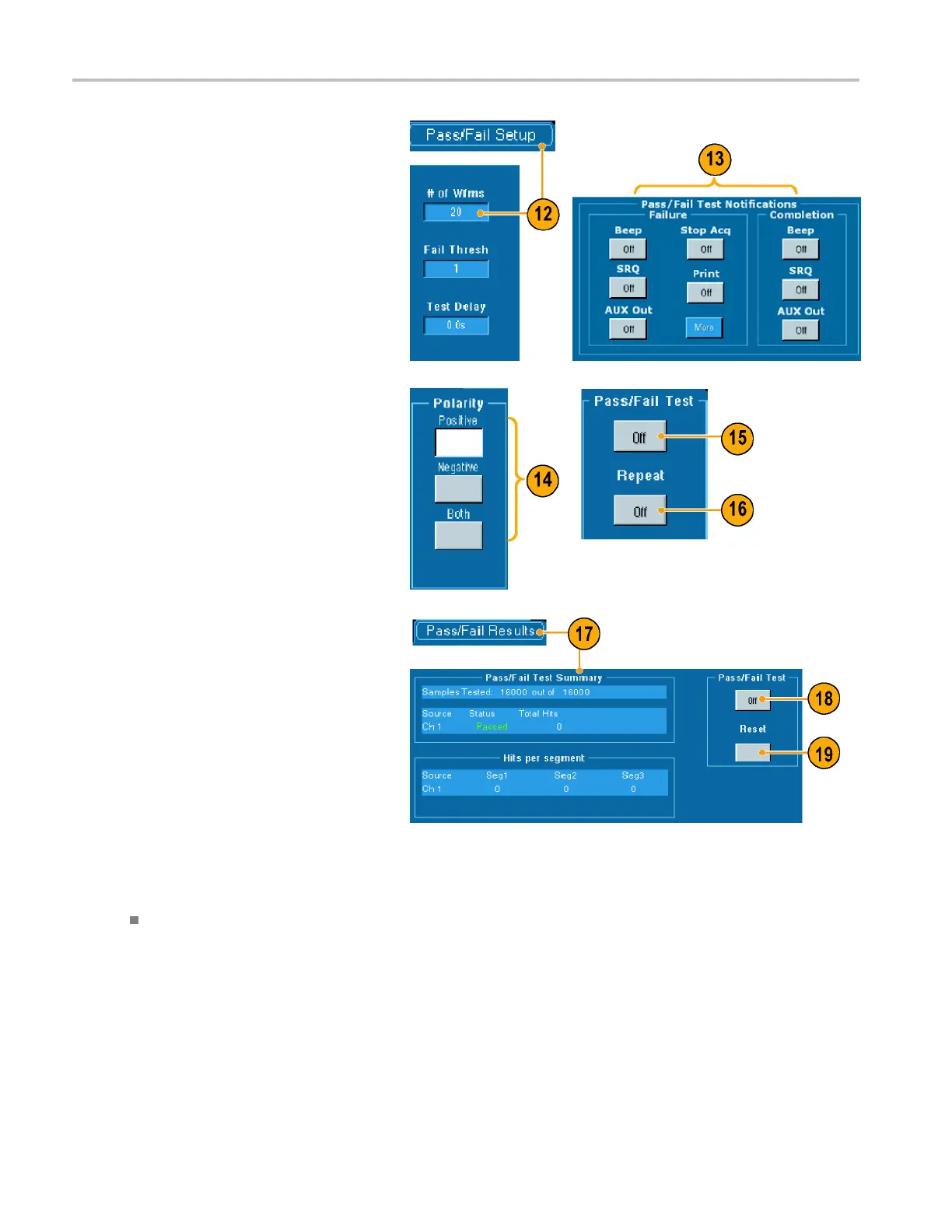

12. Select the Pass/Fail Setup tab, and then
set up the pass/fail parameters. (When
acquisition m
ode is Waveform Database,
the # of Wfms label becomes Samples.)
13. Select your Pass/Fail Test Notifications.
14. Select the polarity you want to test.
15. Click Pass/Fail Test On to start the mask
test.
16. Click Repeat On to run the mask test
continuou
sly.
17. Click the
Pass/Fail Results tab to view
the test r esults.
18. Click Pass/Fail Test On to start the mask
test.
19. Click Reset to reset the totals and clear
any viol
ations.
Quick Tips
If the signal is not within the mask, enable Autoset to center the waveform in the mask.
64 TDS6000B & TDS6000C Series Quick Start User Manual
