Telephone Line Emulator User’s Manual
40-400-00020, Rev. M
31
Clone
Clone is used when configuring the TLE for 2x2 operation. Enabling this feature will clone
(or copy) an exact duplicate of the settings for Lines 1 & 2 to Lines 3 & 4 so that the Edit
Configuration is split into two identical setups. After the 2x2 Ports is selected, and the
screen is closed (OK) the Clone feature is disabled. To enable the Clone feature again,
select 4 Ports, then 2x2 Ports. A dialog box will appear. To Clone lines 1 & 2 to Lines 3
& 4, select Yes.
Reorder
The Reorder signal is an indication that trunk circuits are not available. Reorder Tone has
several variables, including: Single Tone or Dual Tone, Output Level, and a Simple or
Complex Cadence.

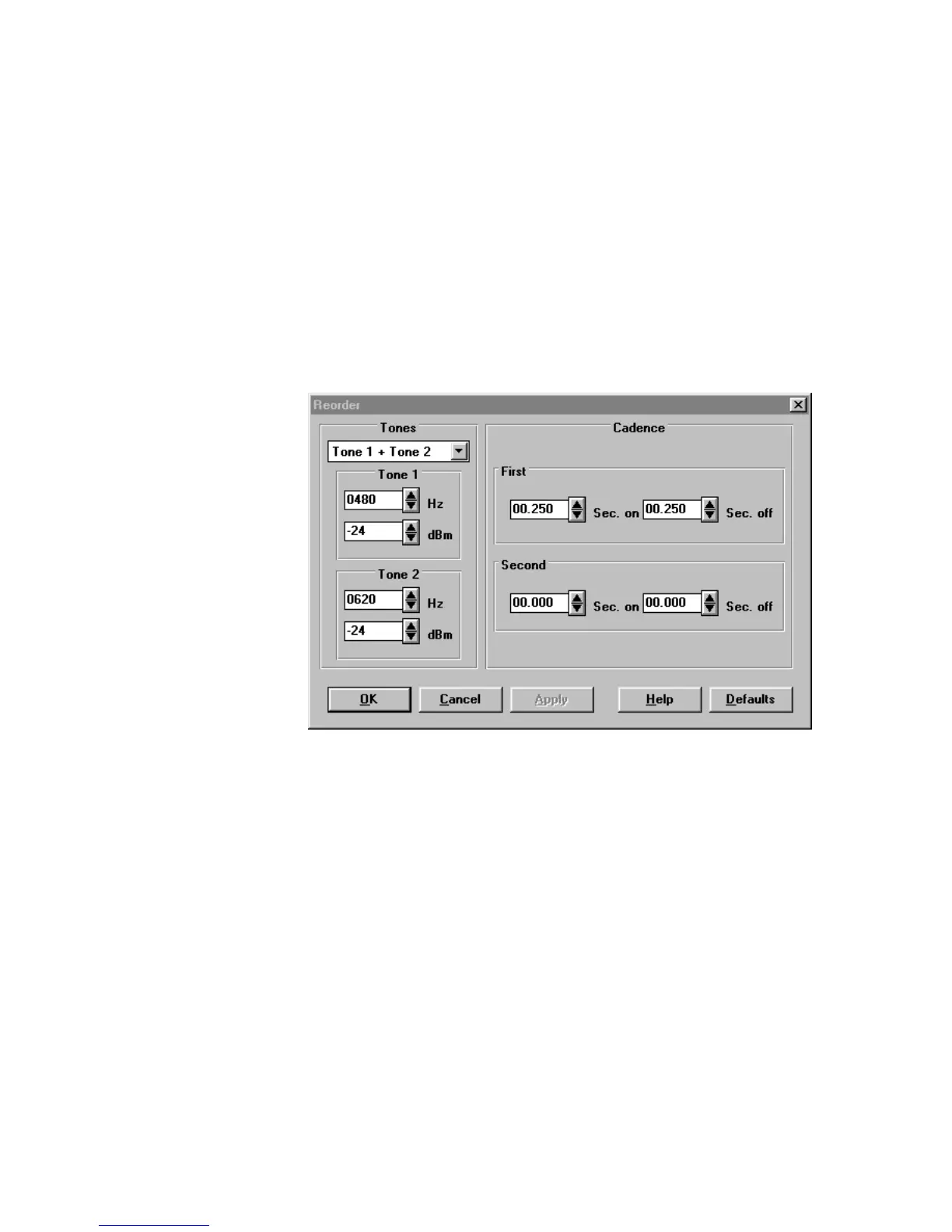

Figure 19. Reorder Screen
Reorder
Reorder tones may be single or dual frequencies with individually adjustable amplitudes.
With a selection of Single Tone the system will only generate the first tone. With a
selection of Tone 1 + Tone 2 the system will generate both tones with the specified
frequencies and amplitudes. Purchase of the TLE-INTL Software Module adds the
selection of Tone 1 x Tone 2. The system will generate Tone 1 modulation by Tone 2. In
this implementation only the fundamental and upper side tone are generated, both at the
amplitude programmed for Tone 1.
Frequency range for both tones may be set from 10 Hz to 1000 Hz in 1 Hz increments.
Output level may be set from -6 dBm to -60 dBm per tone in 1 dB increments.
Reorder Cadence
First Cadence on time may be set from 100 mS to 1000 mS in 5 mS increments.
