Telephone Line Emulator User’s Manual
40-400-00020, Rev. M 34
Frequency range for all three tones may be set from 10 Hz to 2000 Hz in 1 Hz increments.
Signal level may be set from -6 dBm to -60 dBm in 1 dBm increments.
On duration may be set from 0 to 10.000 seconds in 5 mS increments.
Off duration may be set from 0 to 10.000 seconds in 5 mS increments.
Note: For Number Unobtainable Tone Information, go to TLE-INTL Software Module
section.
Voice Messages
Voice Messages are audible signals that are stored internally in the TLE in a 8.000 kHz 8-
bit µ-law WAV file format. These are capable of being imported via the serial port. Initial
support is for 4 messages with a maximum total length of 8 seconds broken into 0.5
second blocks. Message names include Invalid Number, Disconnect, Dial Access, and
Alternate.

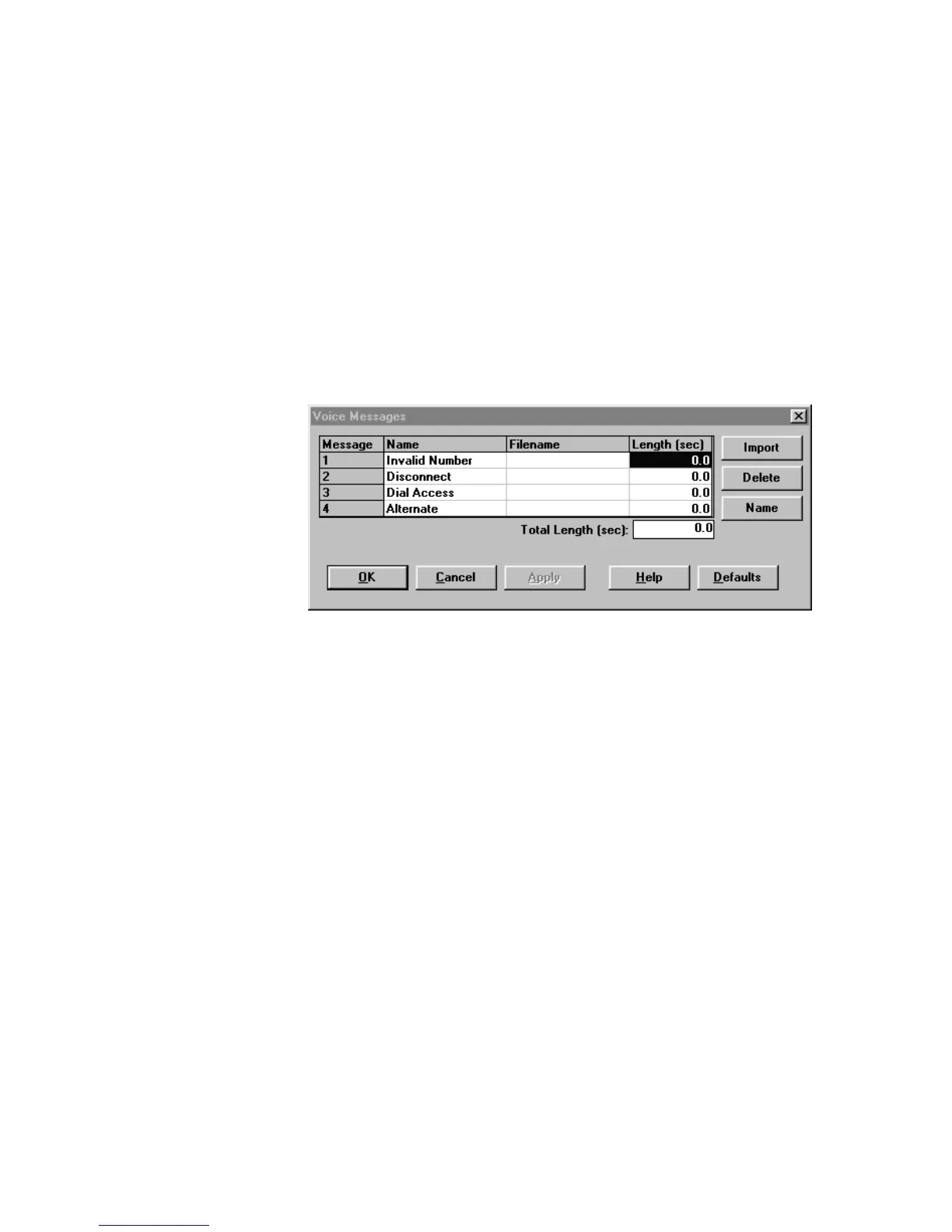

Figure 22. Voice Messages Screen
Invalid Number
The default message for Invalid Number is:
“The number you have dialed is incorrect. Please hang up and dial again.”
This message will be played when any invalid phone number is dialed.
Disconnect
The default message for Disconnect is:
“Please hang up.”
Dial Access
The default for Dial Access is:
“Today’s message is: Buy Teltone products.”
Alternate
The Alternate message is programmable with no default set.
