Telephone Line Emulator User’s Manual
40-400-00020, Rev. M 30
Special Test Tone - Test Number
This is the telephone number dialed to access the Special Test Tone programmed in the
Miscellaneous screen under Test Tones. It is programmable from 0 to 16 digits in length
and the default setting is 83785. The default test tone is 1004 Hz at -10 dBm.
Stuttered Dial Tone - Test Number
This is the telephone number dialed to access the Stuttered Dial Tone programmed in
the Dial Tone screen under Confirmation. It is programmable from 0 to 16 digits in
length and the default setting is 83786.
Port Configuration
By default the TLE operates as a 4 line unit with a single Active Configuration. Under this
scenario there are certain global parameters which apply to all lines, for example, Call
Progress frequencies, such as Dial Tone or SIT.
Independent switch operation, ports 2 & 4 is a special mode to allow for more versatile
programming of the TLE. When this mode is selected, the unit will operate with one
configuration for ports 1 and 3 and a second configuration for ports 2 and 4. To edit a
port’s parameters, the appropriate configuration must first be selected as the Edit
Configuration. However, for certain global parameters, such as date/time for Caller ID, the
TLE can only accept one value. In these cases, the unit will always use the values from
the first configuration – the edit function is disabled for these parameters in the second
configuration.
Port Configuration allows the user to change the Edit Configuration from 4 Port (normal)
operation to 2x2 Port (dual two-port) operation with Lines 1 and 2 acting as a separate
platform that is isolated from Lines 3 and 4. The Clone operation can be used to make
the two-port platforms identical by copying the non-global parameters from Lines 1 and 2
over to Lines 3 and 4.

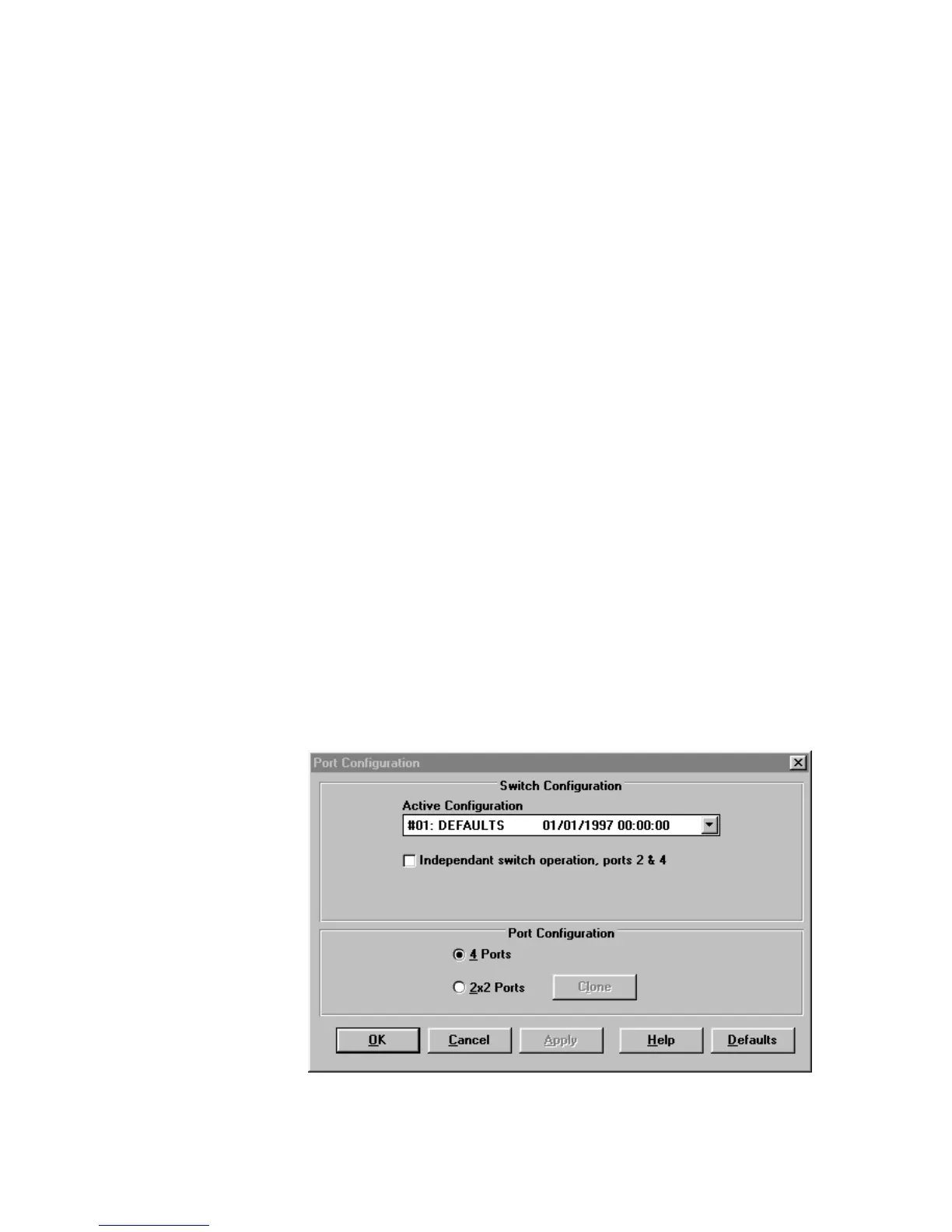

Figure 18. Port Configuration Screen
