Calling Line Group Assignment Group 1 Phone Numbers
Call Forward Group Assignment Group 1 Phone Numbers
Redirect Number Group Assignment Group 1 Phone Numbers
Calling Line Prefix Enable Disable
Call Forward Prefix Enable Disable
Dialable Directory Prefix Enable Disable
Called Line Prefix Enable Disable
Note: Caller ID phones and adjunct units may display some unique characters based upon
national character sets. The characters displayed by the TLE_PC program are based
upon the language settings of the Windows operating system and in most cases should
match the characters used by the Caller ID box for a given country. Refer to the
documentation for the Caller ID unit that you are using, the Windows operating system
documentation, and CCITT Recommendation T.50 for more information.
Caller ID and Call Waiting Tones

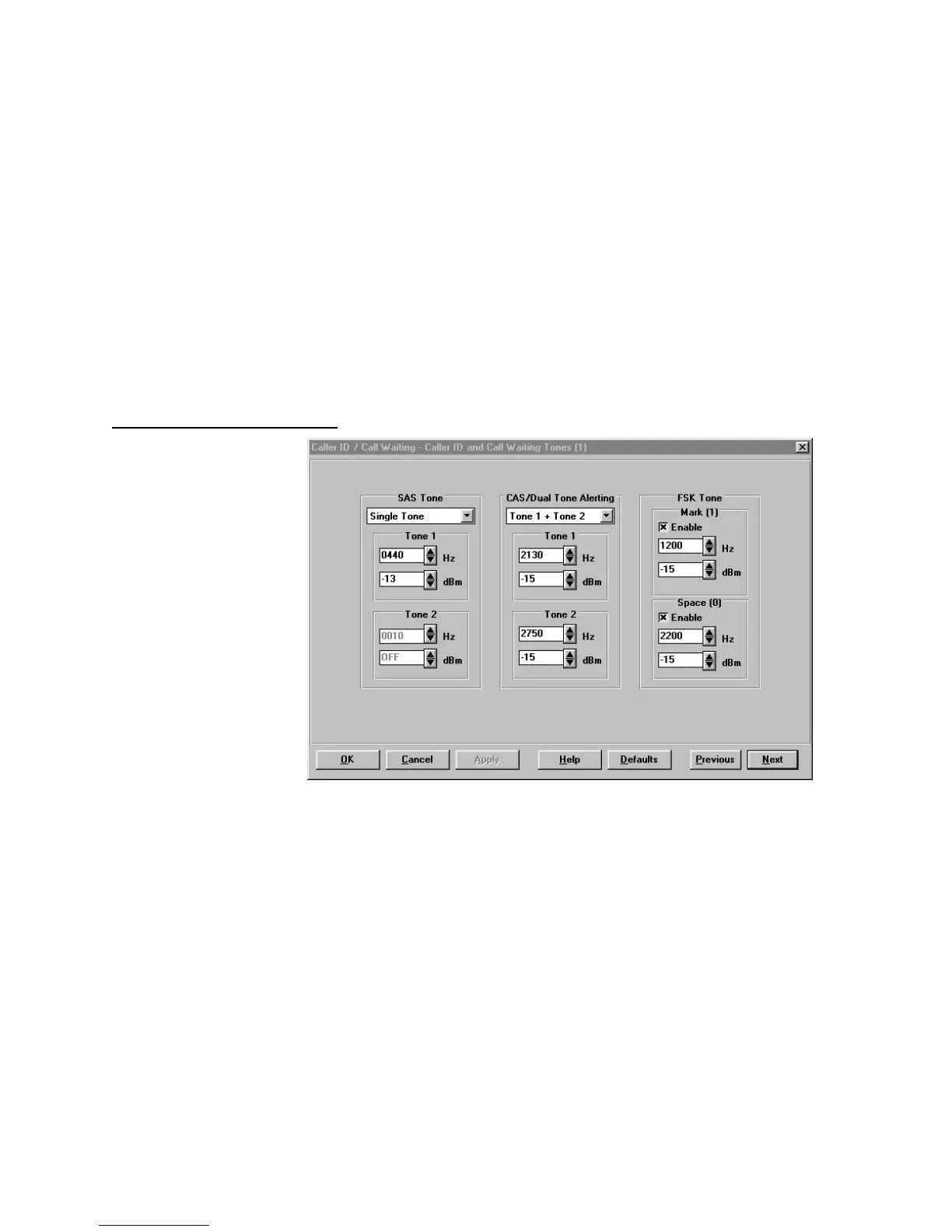

Figure 39. Caller ID/Call Waiting - Caller ID and Call Waiting Tones
The TLE-ICID module allows the user to configure the different parameters associated
with the SAS Tone, CAS / Dual Tone Alerting (CPE Alerting Sequence or CIDCW) tone,
and the FSK Tones.
SAS Tone
The Subscriber Alerting Sequence (SAS) or Call Waiting Tone is an Alerting Signal sent
down a telephone line to inform a user that another call is waiting. The SAS tone is
programmable as Disabled, Single Tone, Tone 1 + Tone 2 or Tone 1 x Tone 2. The
frequency is programmable from 10 to 1800 Hz in 1 Hz increments and the signal level is
programmable from -6 to -60 dBm in 1 dB increments.
To Next Page
