Tenda i9 User Manual

6
2.2 Large scale WiFi network deployment
If you need to deploy a large scale WiFi network in hotels, enterprises, or stations, you are
recommended to use a wired router, a PoE switch, a Tenda AP controller, and several APs.

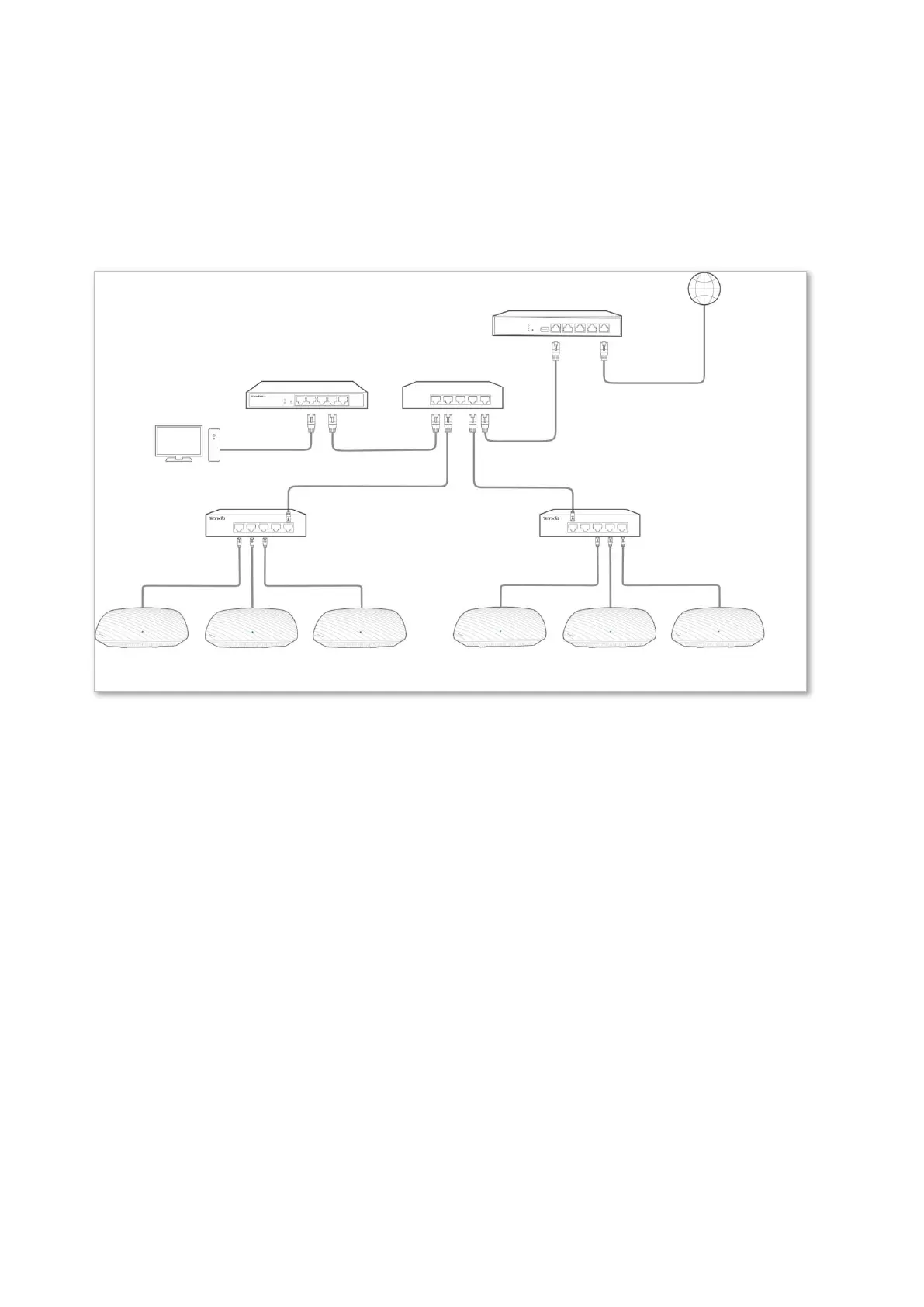

Networking topology
− Connect the computer used to configure APs to the Tenda AP controller.
− Connect the LAN port of the AP to the PoE port of the switch.
Setting up the AP
Log in to the web UI of the Tenda AP controller, and set up the APs in batch. Refer to the user guide
of the Tenda AP controller for details.
…
Computer
Used to configure APs
PoE Switch
PoE Switch
Tenda AP Controller
Core Switch
Router
Internet
Uplink port
LAN port
WAN port
AP1
AP2
AP3
AP n
AP n+1
AP n+2

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Height	38 mm
