4.2 Configuring AP mode
The Mixed WPA/WPA2-PSK security mode and AES encryption algorithm are used as an example to
describe the configuration procedure. If you need to use another security mode, refer to Section
7.1 Basic settings.
Configuration procedure:

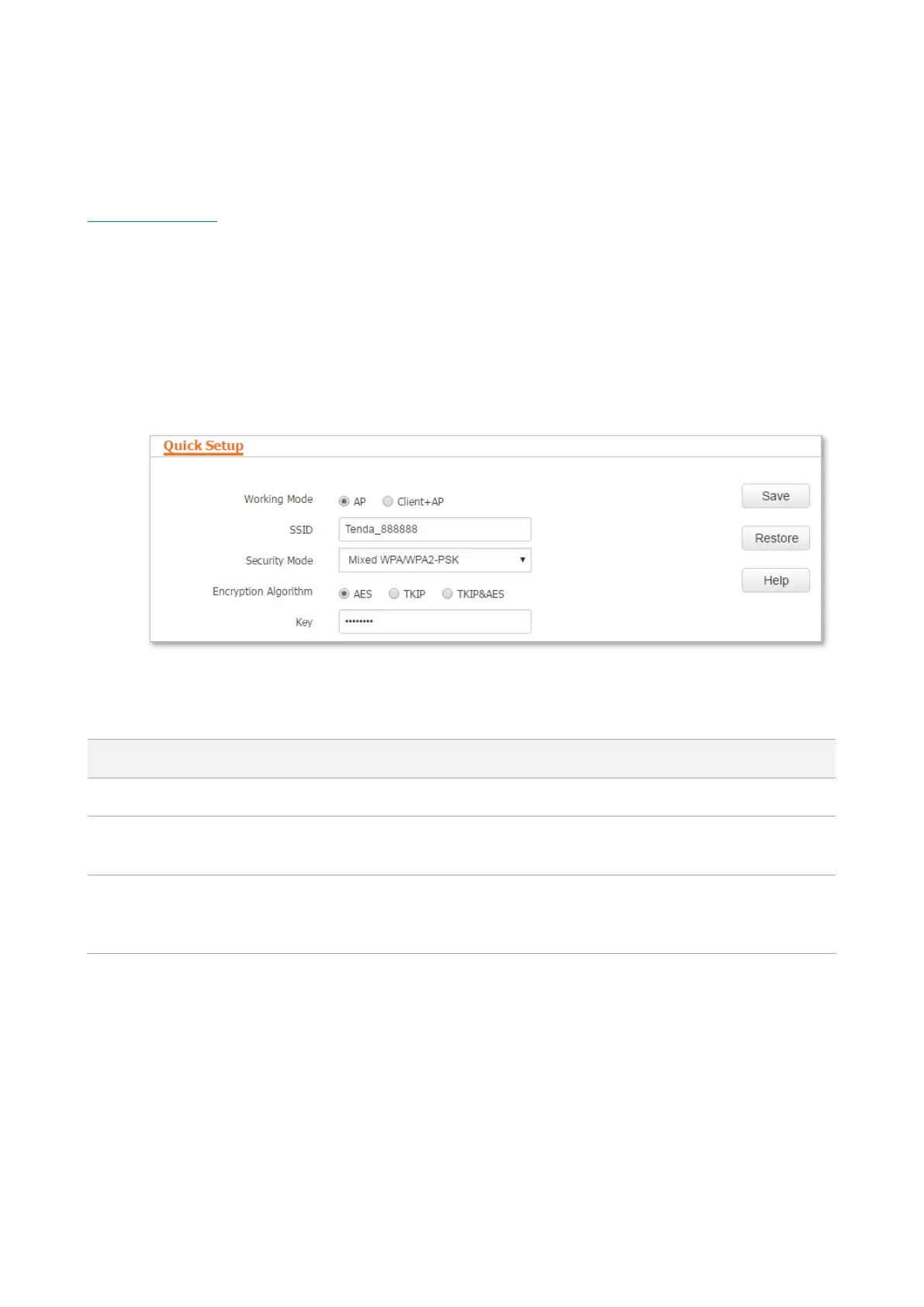

Step 1 Set Working Mode to AP.
Step 2 (Optional) Set SSID to a wireless network name.
Step 3 Set Security Mode to Mixed WPA/WPA2-PSK, Encryption Algorithm to AES, and Key to
the password of the wireless network.
Step 4 Click Save.
--End
Parameter description
Parameter
Description
Working Mode
It specifies the working mode of the AP, including AP mode and Client+AP mode.
SSID
It specifies the primary SSID (wireless network name) of the wireless network at the
corresponding radio band.
Security Mode
It specifies the security mode of the wireless network, including: None, WEP, WPA-PSK,
WPA2-PSK, Mixed WPA/WPA2-PSK, WPA, and WPA2. Clicking the hyperlink navigates
you to the elaborated description of the corresponding security mode.
After the configuration, you can select the SSID on your wireless devices such as smart phones and
enter your wireless network password to connect to the wireless network of the AP and access the
internet through the AP.

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Height	38 mm
