Tenda i9 User Manual

9
3.2 Logging out of the web UI of the AP
After you log in to the web UI of the AP, the system logs you out if you perform no operation on
the web UI within the Login Timeout interval. (The default interval is 5 minutes and can be changed.)
When you close the web browser, the system logs you out as well.
When you are logged out, the system does not save the current configuration. Therefore, you are
recommended to save the current configuration before logging out.
If you close the web browser tab page used to log in to the web UI of the AP instead of the web
browser, you are not logged out.
3.3 Web UI layout

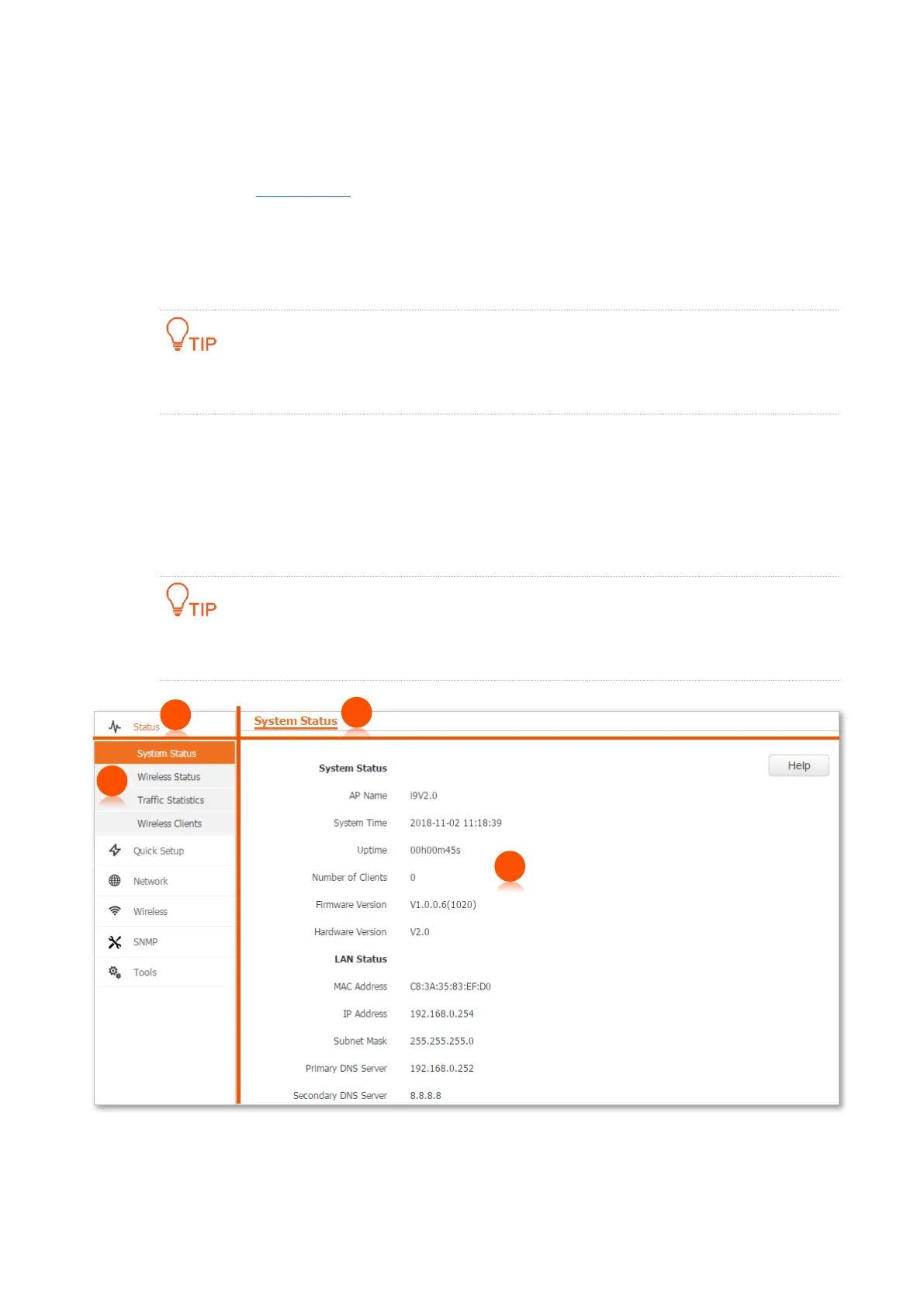

The web UI of the AP is composed of 4 parts, including the level-1 navigation tree, level-2
navigation tree, tab page area, and configuration area. See the following figure.
The functions and parameters dimmed on the web UI indicates that they are not supported by the AP
or cannot be changed in the current configuration.
3
1
2
4

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990
