Tenda i9 User Manual

23

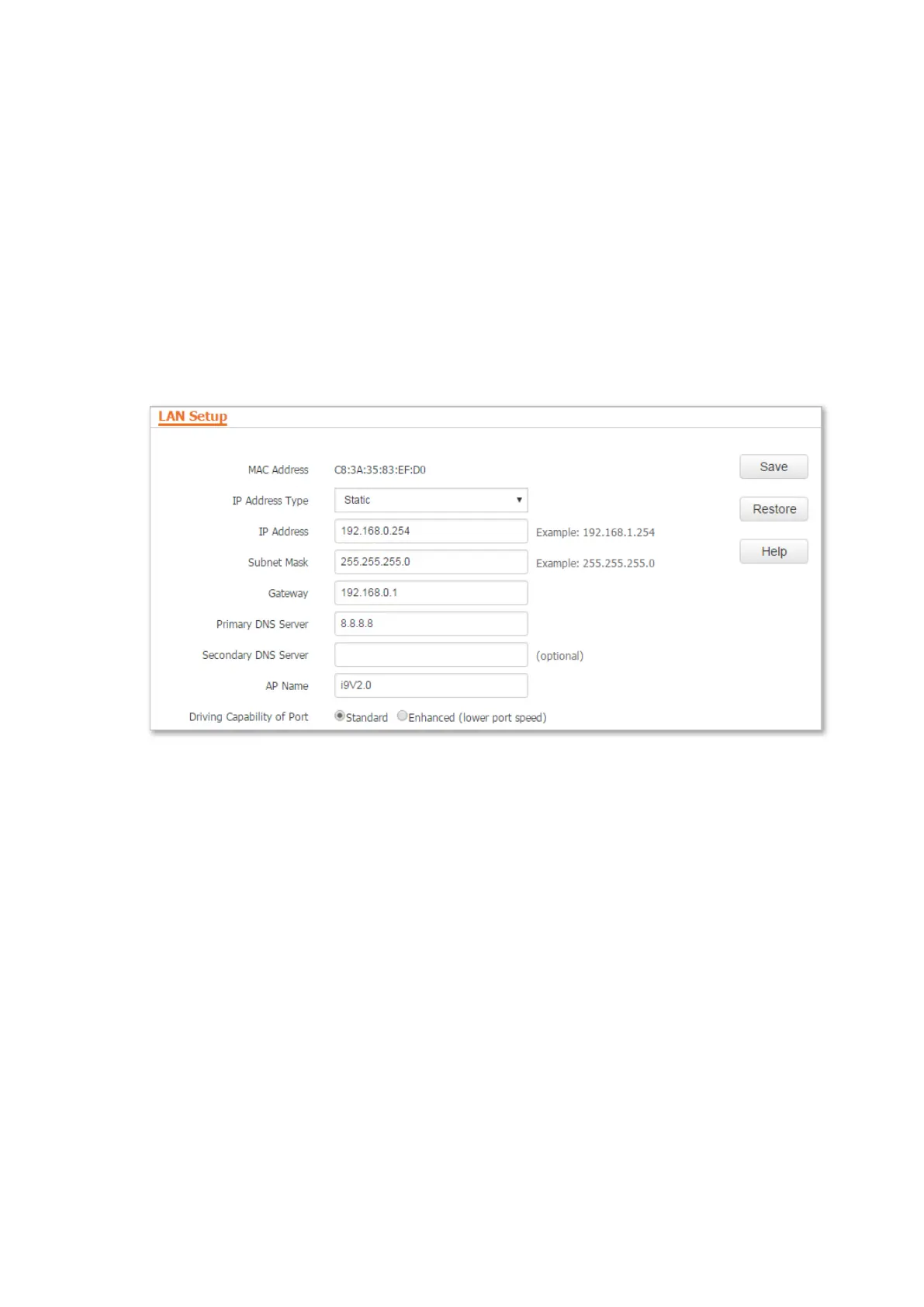

Configuration procedure:
Step 1 Set IP Address Type to Static.
Step 2 Set IP Address.
Step 3 Set Subnet Mask to the subnet mask of the IP address. Generally the subnet mask is
255.255.255.0.
Step 4 Set Gateway to the IP address of the gateway of the AP.
Step 5 Set Primary DNS Server to the IP address of the primary DNS server of the AP. If another
DNS server is available, set Secondary DNS Server to the IP address of the additional DNS
server.
Step 6 Click Save.
--End
6.1.2 IP address obtaining mode – dynamic IP address
This mode enables the AP to automatically obtain an IP address, subnet mask, gateway IP address,
primary DNS server IP address, and secondary DNS server IP address from a DHCP server in the
network. If a large number of APs are deployed, you can adopt this mode to prevent IP address
conflicts and effectively reduce your workload.
Configuration procedure:
Step 1 Set IP Address Type to Dynamic.
Step 2 Click Save.

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Height	38 mm
