Tenda i9 User Manual

76
--End

Configure the NMS

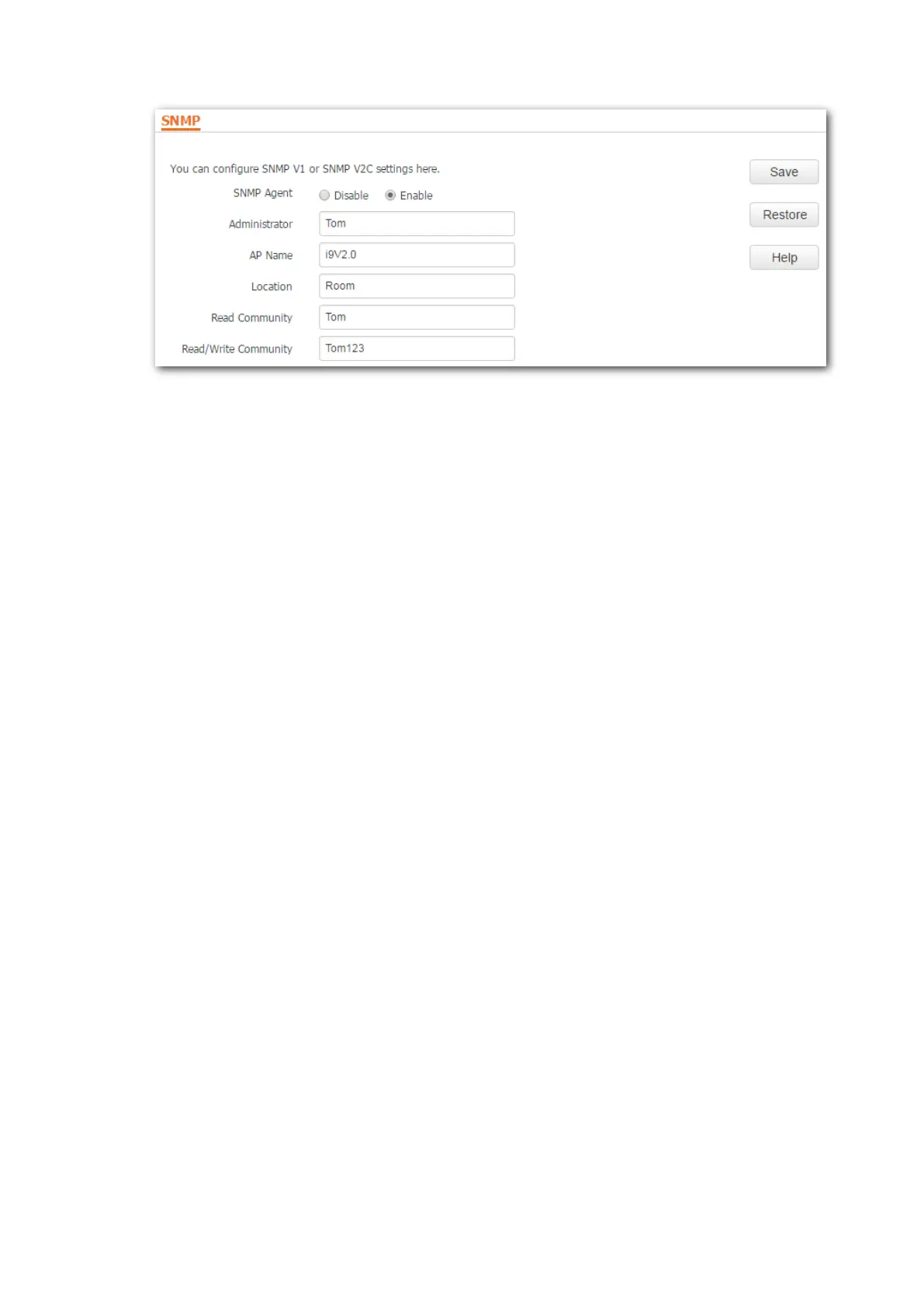

On an NMS that uses SNMP V1 or SNMP V2C, set the read community to Tom and read/write
community to Tom 123. For details about how to configure the NMS, refer to the configuration
guide for the NMS.
Verification
After the configuration, the NMS can connect to the SNMP agent of the AP and can query and set
some parameters on the SNMP agent through the MIB.

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Height	38 mm
