Tenda i9 User Manual

81

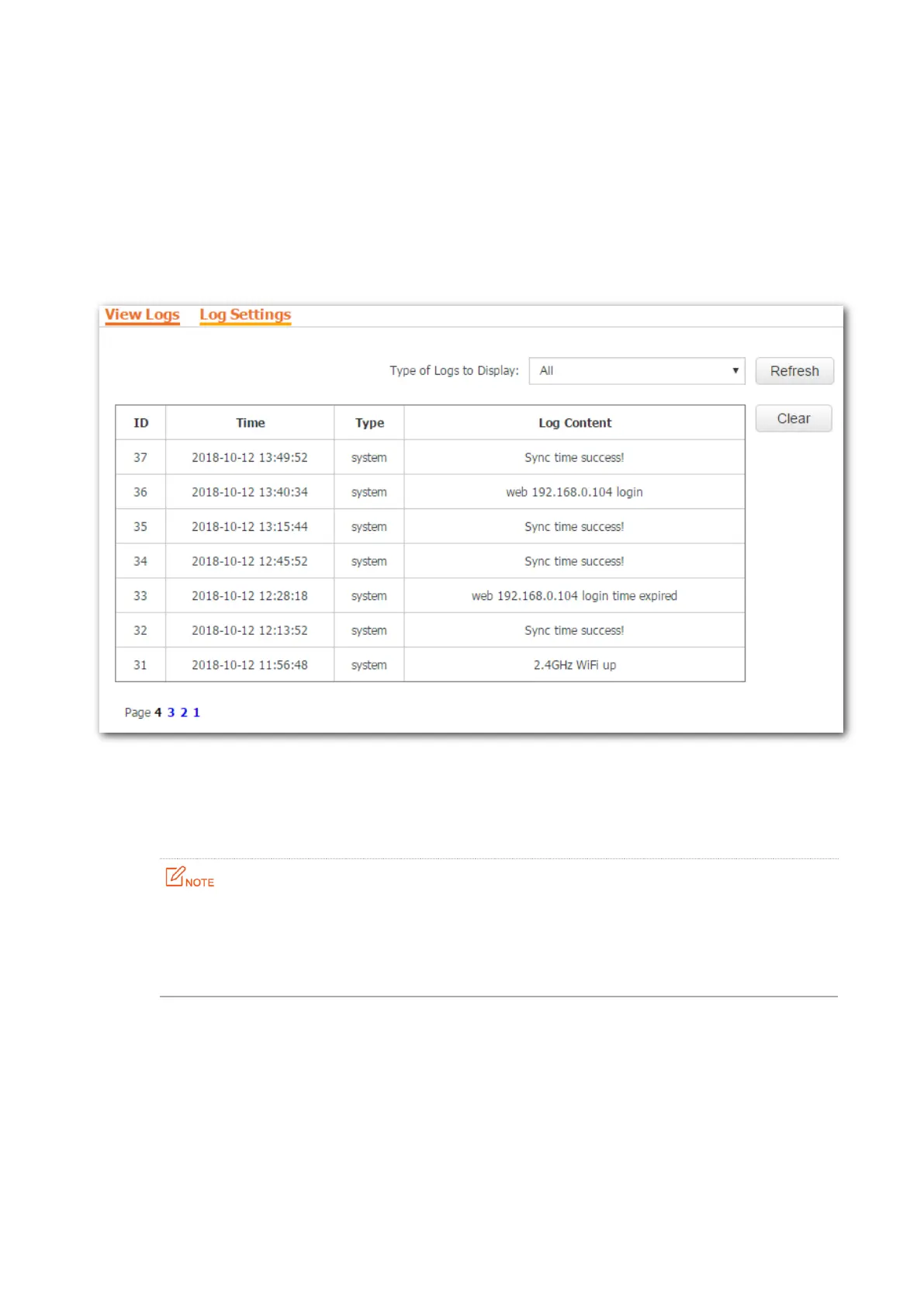

9.3 Logs
9.3.1 View Logs
The logs of the AP record various events that occur and the operations that users perform after the
AP starts. In case of a system fault, you can refer to the logs during troubleshooting.
To access the page, choose Tools > Logs and click View Logs.
To ensure that the logs are recorded correctly, verify the system time of the AP. You can correct the
system time of the AP by choosing Tools > Date & Time > System Time.
To view the latest logs of the AP, click Refresh. To clear the existing logs of the AP, click Clear.

When the AP reboots, the previous logs are lost.

The AP reboots when the AP is powered on after a power failure, the QVLAN function is
configured, the firmware is upgraded, an AP configuration is backed up or restored, or the factory
settings are restored.

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Height	38 mm
