Tenda i9 User Manual

68
7.7 QVLAN Settings
7.7.1 Overview
The AP supports 802.1Q VLANs and is applicable in a network environment where 802.1Q VLANs
have been defined. By default, the QVLAN function is disabled.
7.7.2 Configuring the QVLAN function

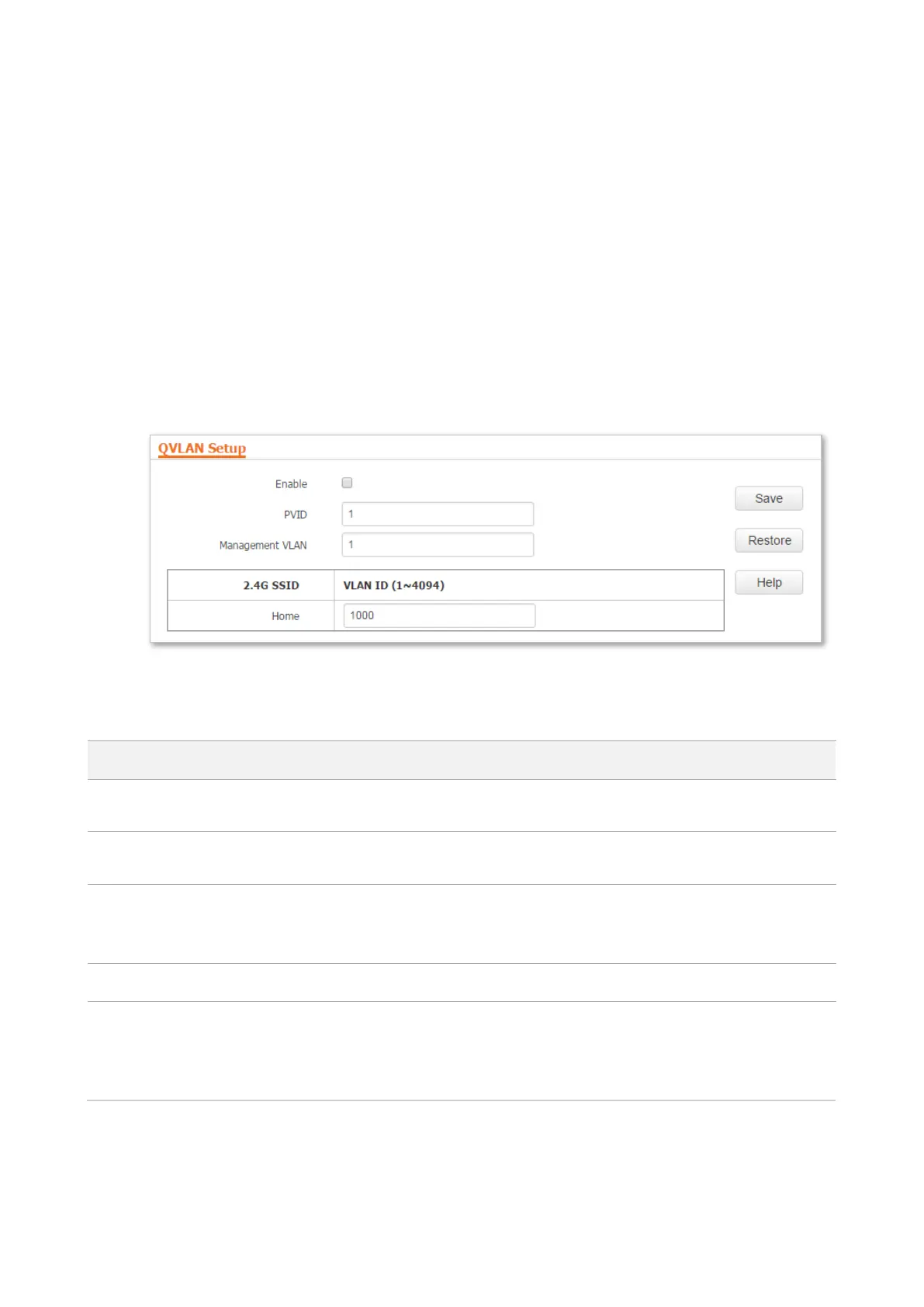

Step 1 Choose Wireless > QVLAN Setup.
Step 2 Change the parameters as required. Generally, you only need to change the Enable, and
VLAN ID settings.
Step 3 Click Save.
--End
Parameter description
Parameter
Description
Enable
It specifies whether to enable the QVLAN function of the AP. By default, it is
disabled.
PVID
It specifies the ID of the default native VLAN of the trunk port of the AP. The
default value is 1.
Management VLAN
It specifies the ID of the AP management VLAN. The default value is 1.
After changing the management VLAN, you can manage the AP only after
connecting your computer or AP controller to the new management VLAN.
2.4G SSID
It specifies the currently enabled 2.4 GHz SSIDs of the AP.
VLAN ID
It specifies VLAN IDs corresponding to SSIDs. The default value is 1000.
After the QVLAN function is enabled, the wireless interfaces corresponding to
SSIDs functions as access ports. The PVID and VLAN ID of an access port are the
same.
*
*

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Height	38 mm
