Tenda i9 User Manual

2
1.2.2 Button and port
Button & Port
Connection Description
LAN port
10/100 Mbps auto negotiation port

If the AP is powered using a DC adapter, connect this port to a switch.

If the AP is powered through PoE, connect this port to an IEEE 802.3af PoE
switch.
Power jack
The power jack is used to connect to a DC adapter for supplying power to the AP.
Input: 12 V 1 A
Reset button
After the AP is powered on, you can hold down this button for about 8 seconds to
restore the factory settings.
1.2.3 Label

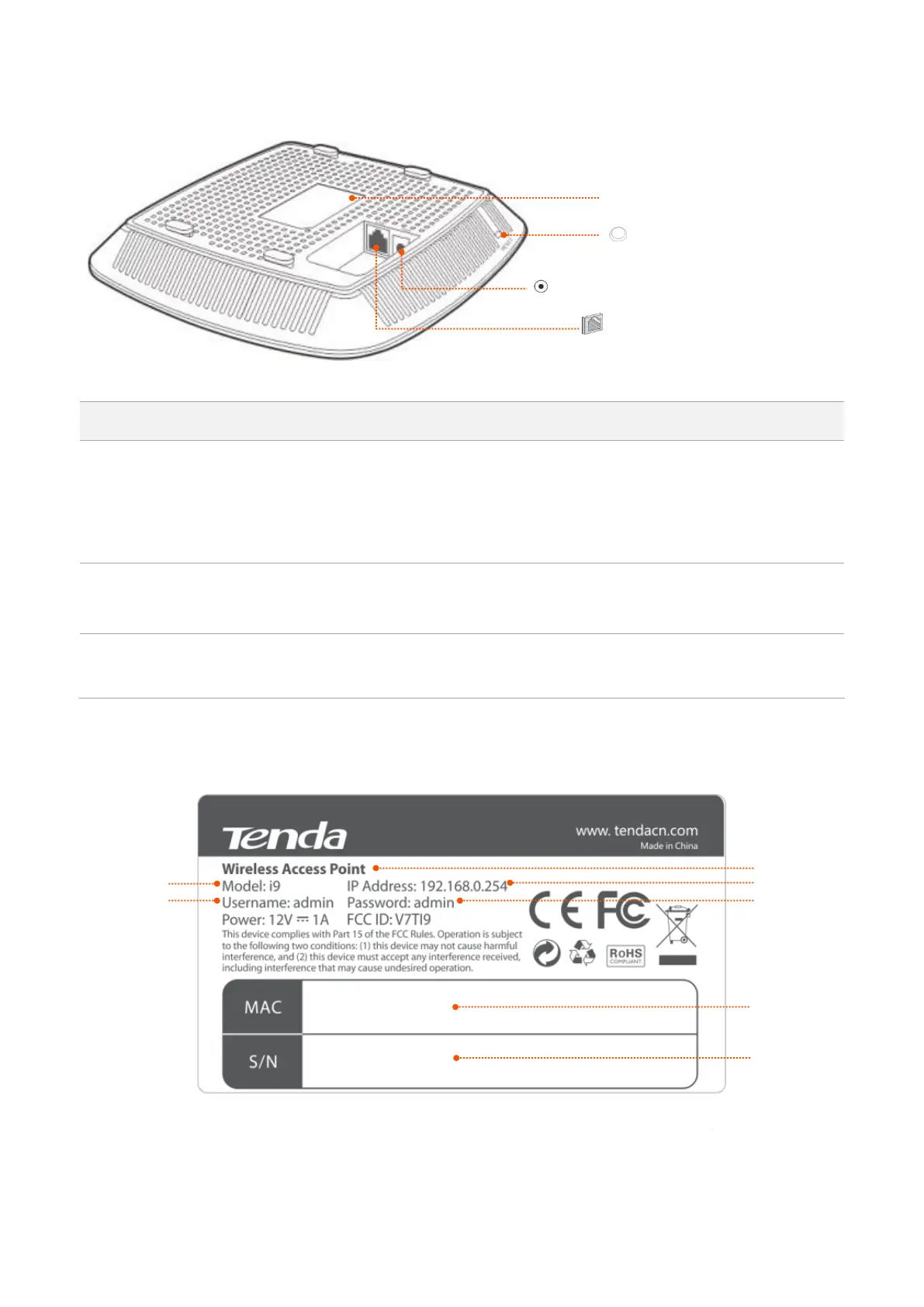

The label is located on the rear panel of the AP. For details of the label, see the following figure.
Reset button
Power jack
LAN port
Position of the label
(1)
(3)
(4)
(5)
(6)
(2)
(4)

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Height	38 mm
