Tenda i9 User Manual

11
4 Quick Setup
4.1 Overview
This module enables you to quickly configure the AP so that wireless devices such as smart phones
and pads can access the internet through the wireless network of the AP.
This AP can work in AP or Client+AP mode.

AP mode
By default, the AP works in this mode. In this mode, the AP connects to the internet using an
Ethernet cable and converts wired signals into wireless signals to provide wireless network

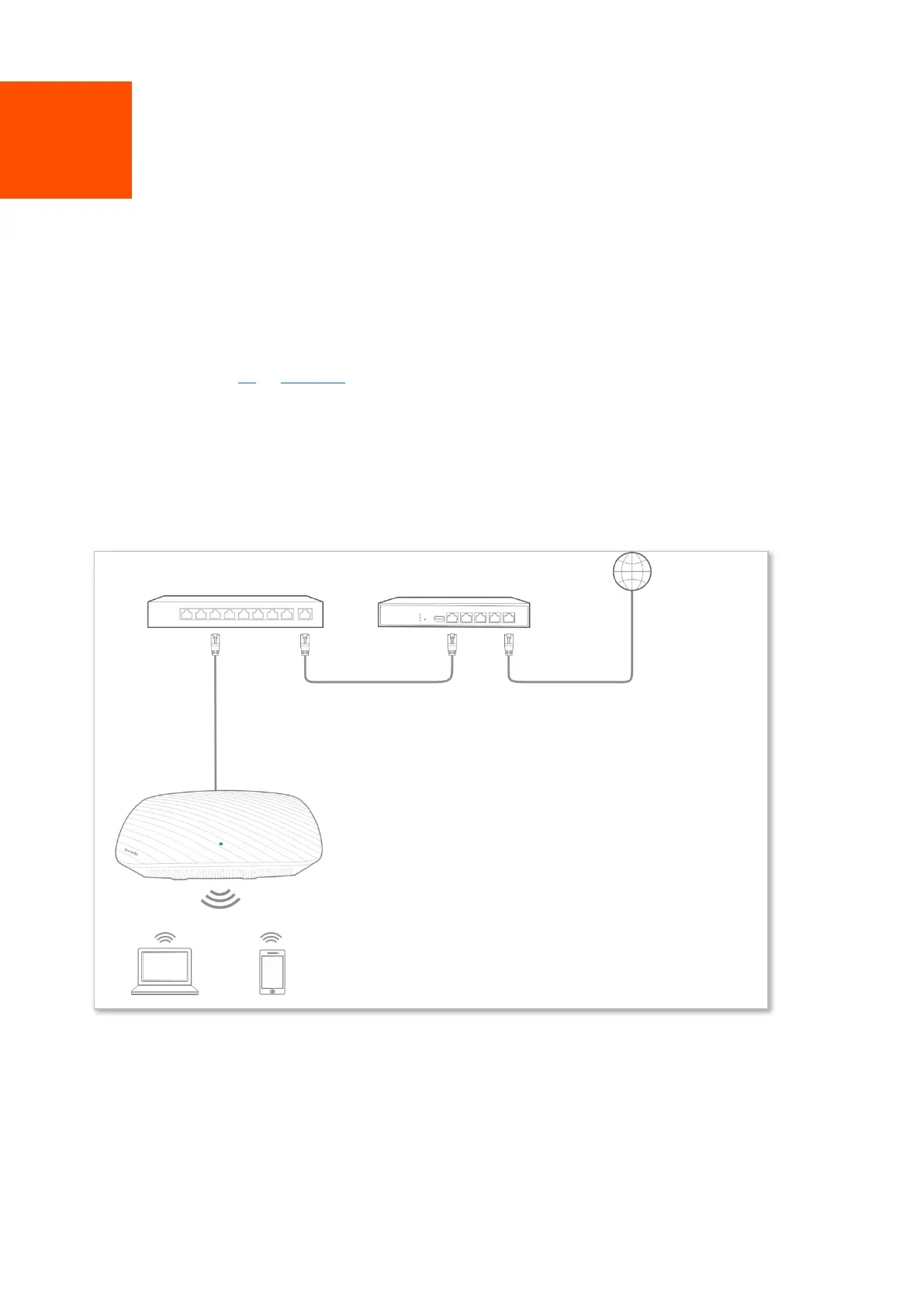

coverage. See the following topology.
Internet
Router
PoE Switch
i9 in AP mode

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Height	38 mm
