Tenda i9 User Manual

73
8.1.3 SNMP protocol version
The AP is compatible with SNMP V1 and SNMP V2C and adopts the community authentication
mechanism. Community name is used to define the relationship between an SNMP agent and
an SNMP manager. If the community name contained in an SNMP packet is rejected by a
device, the packet is discarded. A community name functions as a password to control SNMP
agent access attempts of SNMP managers.
SNMP V2C is compatible with SNMP V1 and provides more functions than SNMP V1.
Compared with SNMP V1, SNMP V2C supports more operations (GetBulk and InformRequest)
and data types (such as Counter64), and provides more error codes for better distinguishing
errors.
8.1.4 MIB introduction

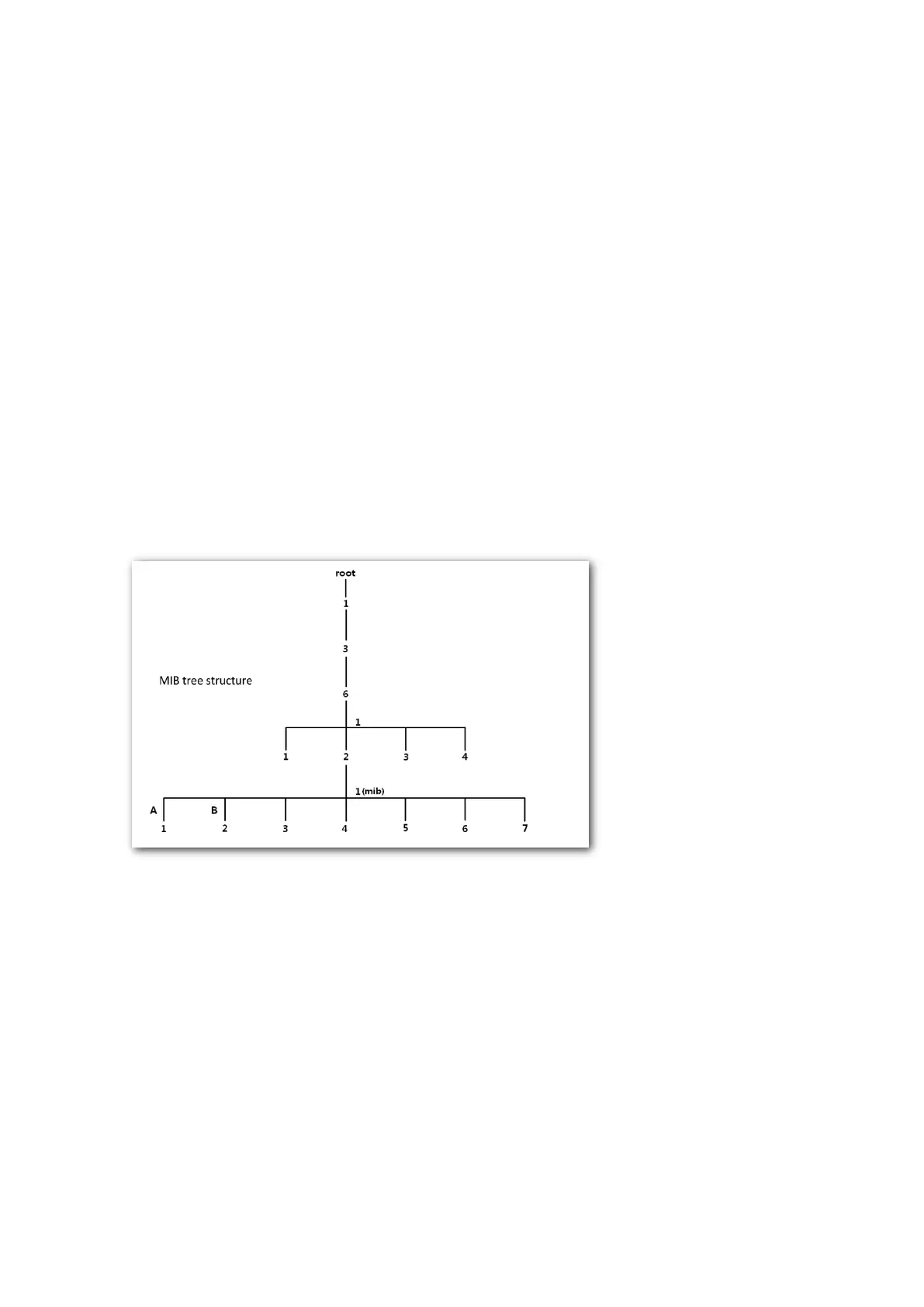

An MIB adopts a tree structure. The nodes of the tree indicate managed objects. A path
consisting of digits and starting from the root can be used to uniquely identify a node. This
path is calling an object identifier (OID).The following figure shows the structure of an MIB. In
the figure, the OID of A is 1.3.6.1.2.1.1, whereas the OID of B is 1.3.6.1.2.1.2.

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Height	38 mm
