Tenda i9 User Manual

37
Setting up a wireless network encrypted using WPA/WPA2-PSK
Network requirement
A company wireless network with a certain level of security must be set up through a simply
procedure. In this case, WPA/WPA2 pre-shared key mode is recommended.
Configuration procedure:
Assume that the second SSID of the AP, the WPA2-PSK security mode, and AES encryption
algorithm are used.
Step 1 Choose Wireless > Basic.
Step 2 Select the second SSID from the SSID drop-down list box.
Step 3 Select the Enable check box.
Step 4 Change the value of the SSID text box to Hotspot.
Step 5 Set Security Mode to WPA2-PSK and Encryption Algorithm to AES.
Step 6 Set Key to 87654321.
Step 7 Click Save.

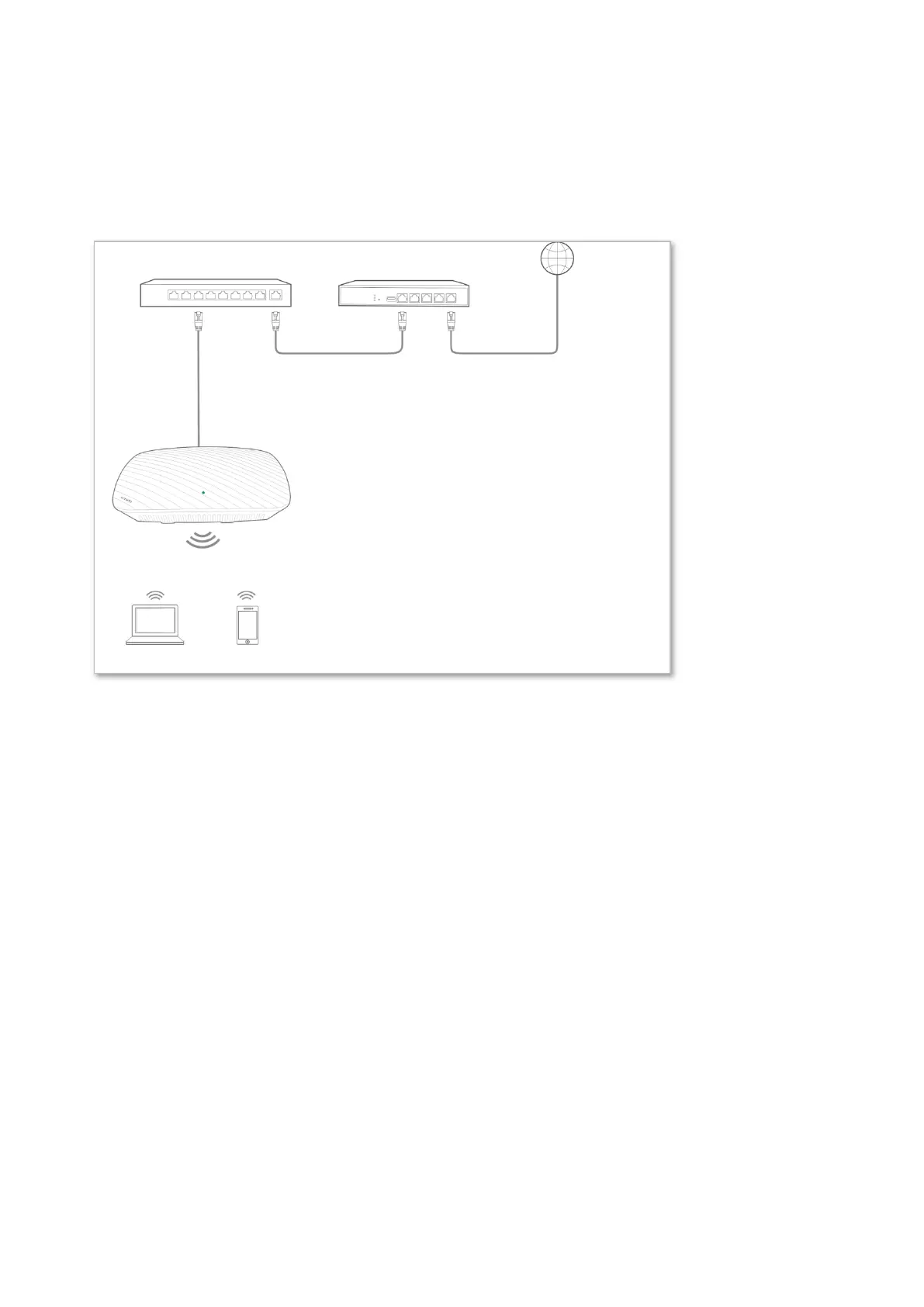

Internet
Router
PoE Switch
AP
SSID: Hotspot
Password: 87654321

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Height	38 mm
