Setting up a wireless network encrypted using WPA or WPA2
Network requirement
A highly secure wireless network is required and a RADIUS server is available. In this case, WPA or
WPA2 mode is recommended.
Configuration procedure:

Configuring the AP
Assume that the IP address of the RADIUS server is 192.168.0.200, the RADIUS password is
12345678, and the port number for authentication is 1812.
Assume that the second SSID of the AP is used.
Step 1 Choose Wireless > Basic.
Step 2 Select the second SSID from the SSID drop-down list box.
Step 3 Select the Enable check box.
Step 4 Change the value of the SSID text box to hot_spot.
Step 5 Set Security Mode to WPA2.
Step 6 Set RADIUS Server IP, RADIUS Port, and RADIUS Password to 192.168.0.200, 1812, and
12345678 respectively.
Step 7 Set Encryption Algorithm to AES.
Step 8 Click Save.

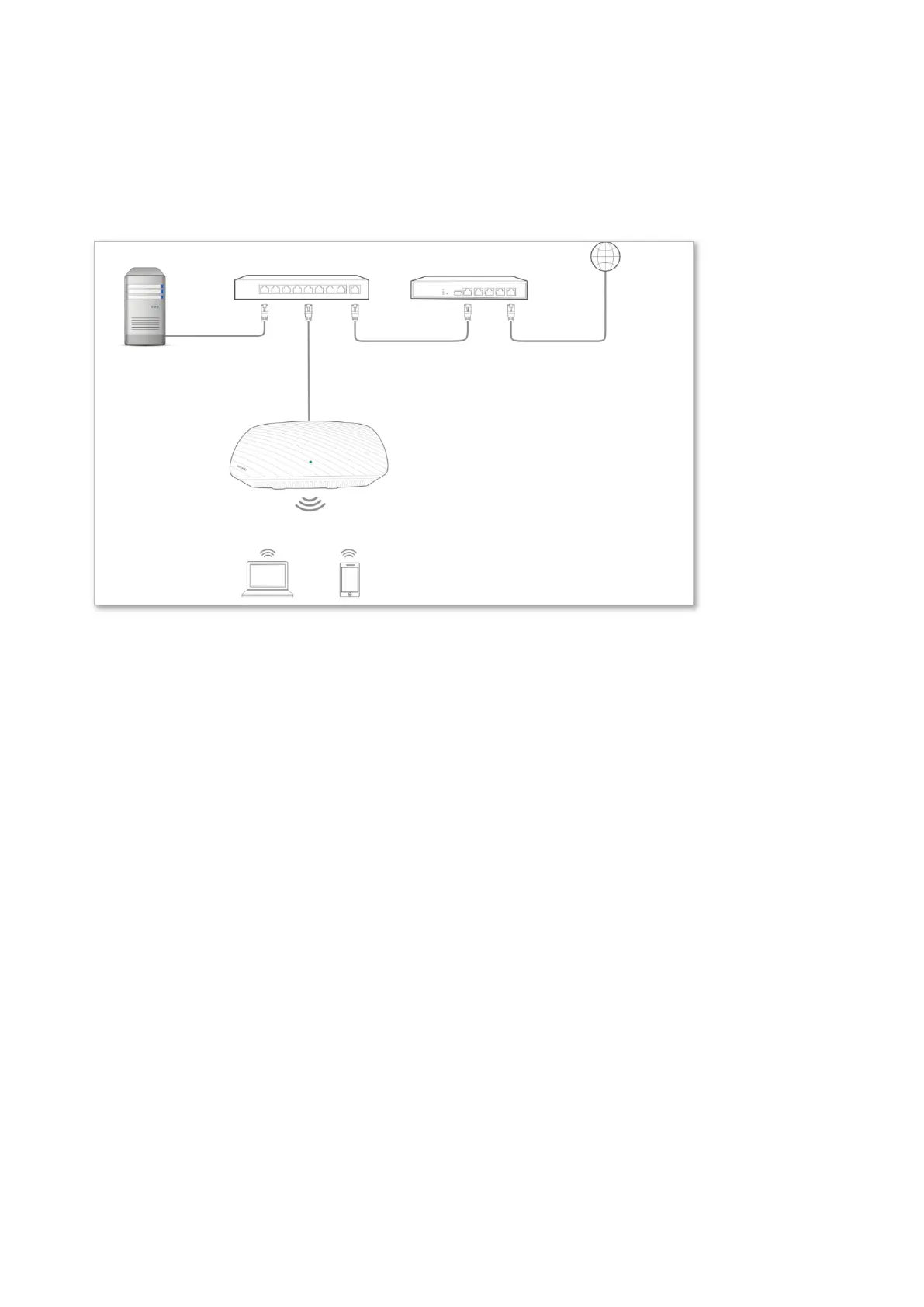

Internet
Router
PoE Switch
RADIUS server
IP address: 192.168.0.200
AP
IP address: 192.168.0.254
SSID: hot_spot

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Height	38 mm
