47
Click
Edit Profile
, click the
Authentication

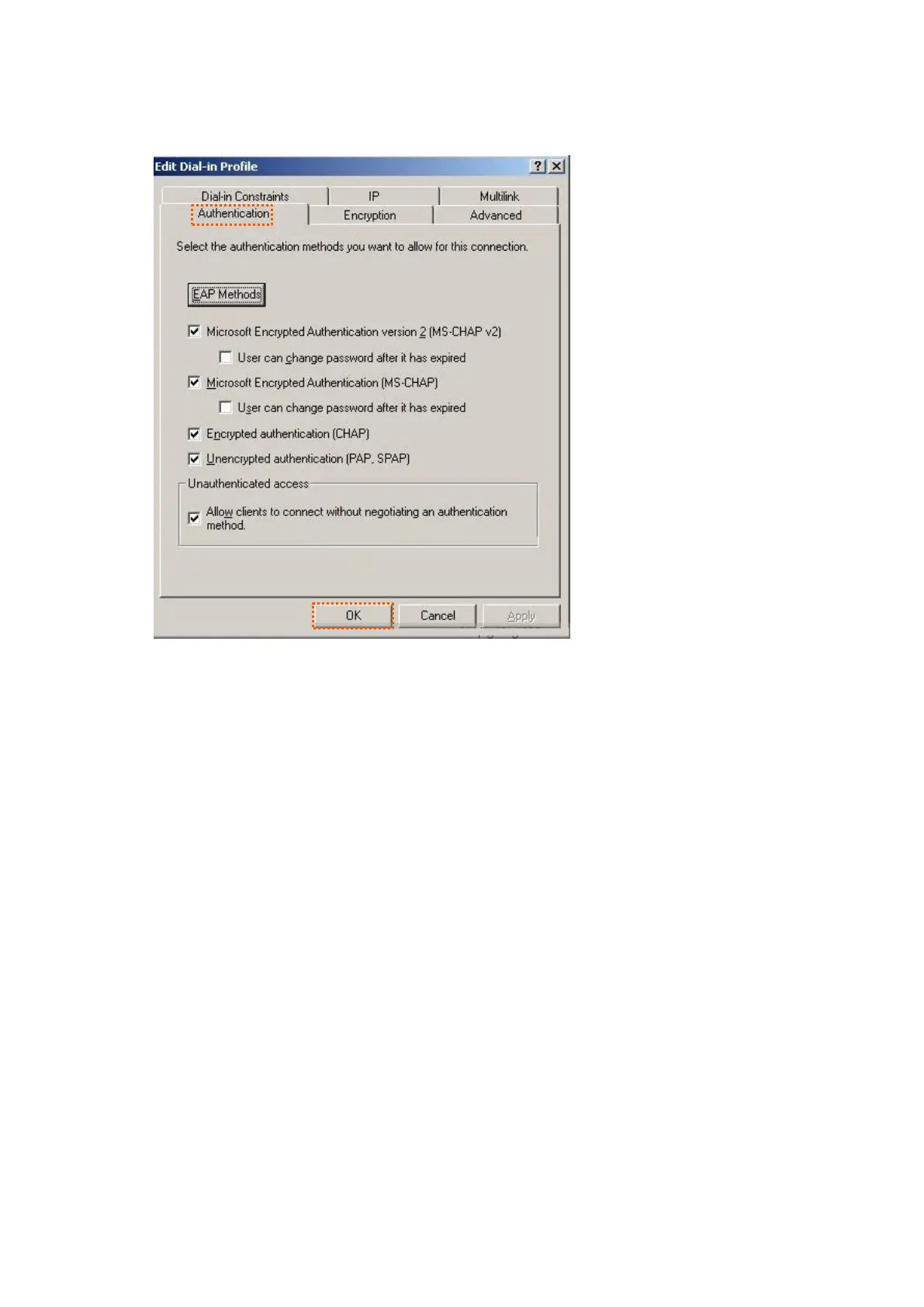

tab, configure settings as shown in the
following figure, and click
OK
.
When a message appears, click
No
.
Step 3
Configure user inf
ormation. Crea
te a user and add the user to gr
oup
802.1x
.
--
End
