9 Basic Mode
The basic mode provides simple and direct measurement. The complexity is reduced, leaving just the basic
functionality. It is the best way to perform a fast and straight to the point measurement. For more complex or
automated measurements the Advanced mode is recommend. For assisted measurement the Guided Mode is
recommended..
9.1 Basic Mode Screen

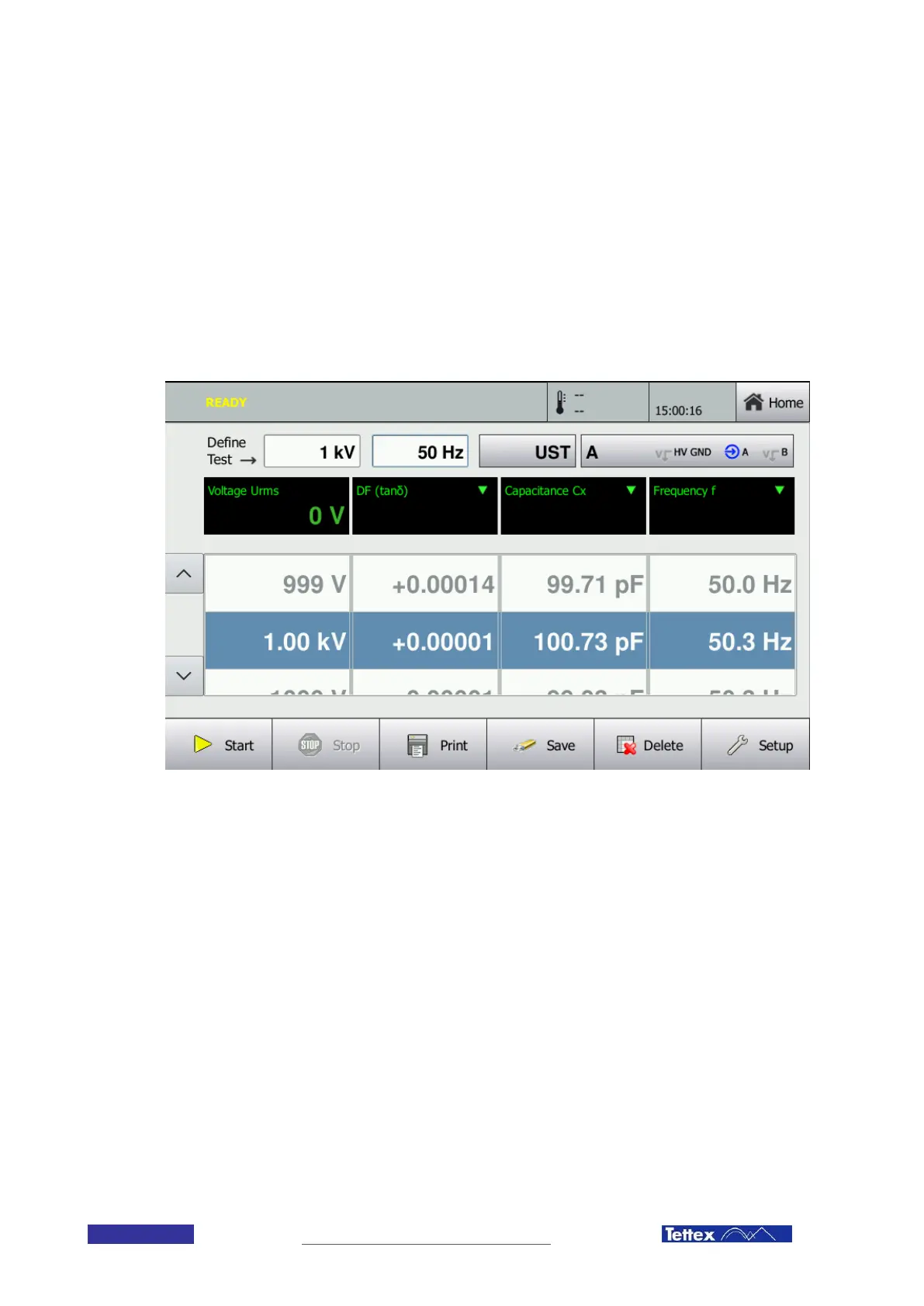

The basic mode screen can be seen above. A test begins with the definition of the parameters. When starting a
measurement the Midas micro 2883 will source high voltage to the DUT with the values set in the test definition
area. As soon as a stable and valid value has been measured, the measurement will be added to the measured
values area and high voltage will be turned off. The toolbar gives the user multiple options to process the data. In
the following chapters the different areas of the basic mode screen are explained in further detail.
