14 Measurement Values
14.1 Description

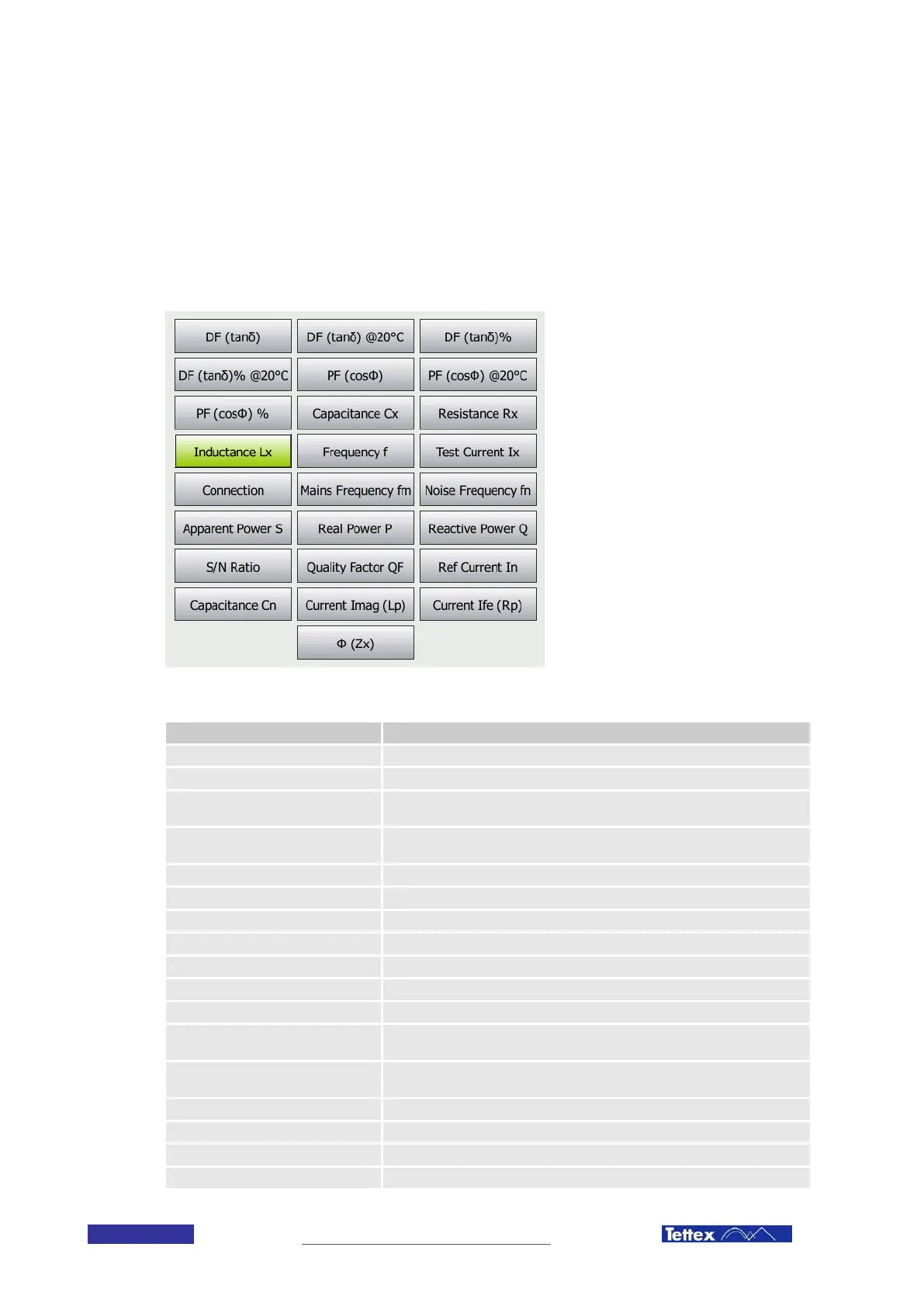

The measurement values as they can be selected in the Midas micro software
DF (tan delta) The dissipation factor or tan delta of the DUT
DF (tan delta) @ 20°C The dissipation factor or tan delta of the DUT with temperature correction
DF (tan delta) %
The dissipation factor or tan delta of the DUT in percentage notation for
better readability.
DF (tan delta) % @ 20°C
The dissipation factor or tan delta of the DUT with temperature correction
in percentage notation for better readability.
PF (cos phi) Power factor of the DUT
PF (cos phi) @ 20°C Power factor of the DUT with temperature compensation
PF (cos phi) % Power factor of the DUT in percentage notation for better readability.
Capacitance Cx Capacitance of the DUT
Resistance Rx Resistance of the DUT
Inductance Lx Inductance of the DUT
Frequency f Frequency of the test voltage
Test current Ix
Current flowing through the Rx Shunt resistor and therefore also through
the DUT.
Connection
Connection which is currently set. (UST A, B, A+B, GST A+B, gA, gB,
g(A+B))
Mains frequency fm Frequency of the mains power.
Noise frequency fn Frequency of interfering noise.
Apparent Power S Apparent power dissipated at the DUT
Real Power P Real Power dissipated at the DUT
