Guided Mode
37
10 Guided Mode
The guided mode provides extended assistance in setting up a test. The user is guided through the selection of all
relevant test parameters as well as through the test itself. Instruction screens are shown to help with the
connections. All the common test devices are supported in Midas micro 2883 software. This is the best mode for
users who want to make quick and correct measurements, without having to obtain in-depth knowledge of the
functionality of tan delta measurement. The guide leads you step by step through test definition as described in the
following sub-chapters.
10.1 DUT and Test selection
10.1.1 Define Test Parameters

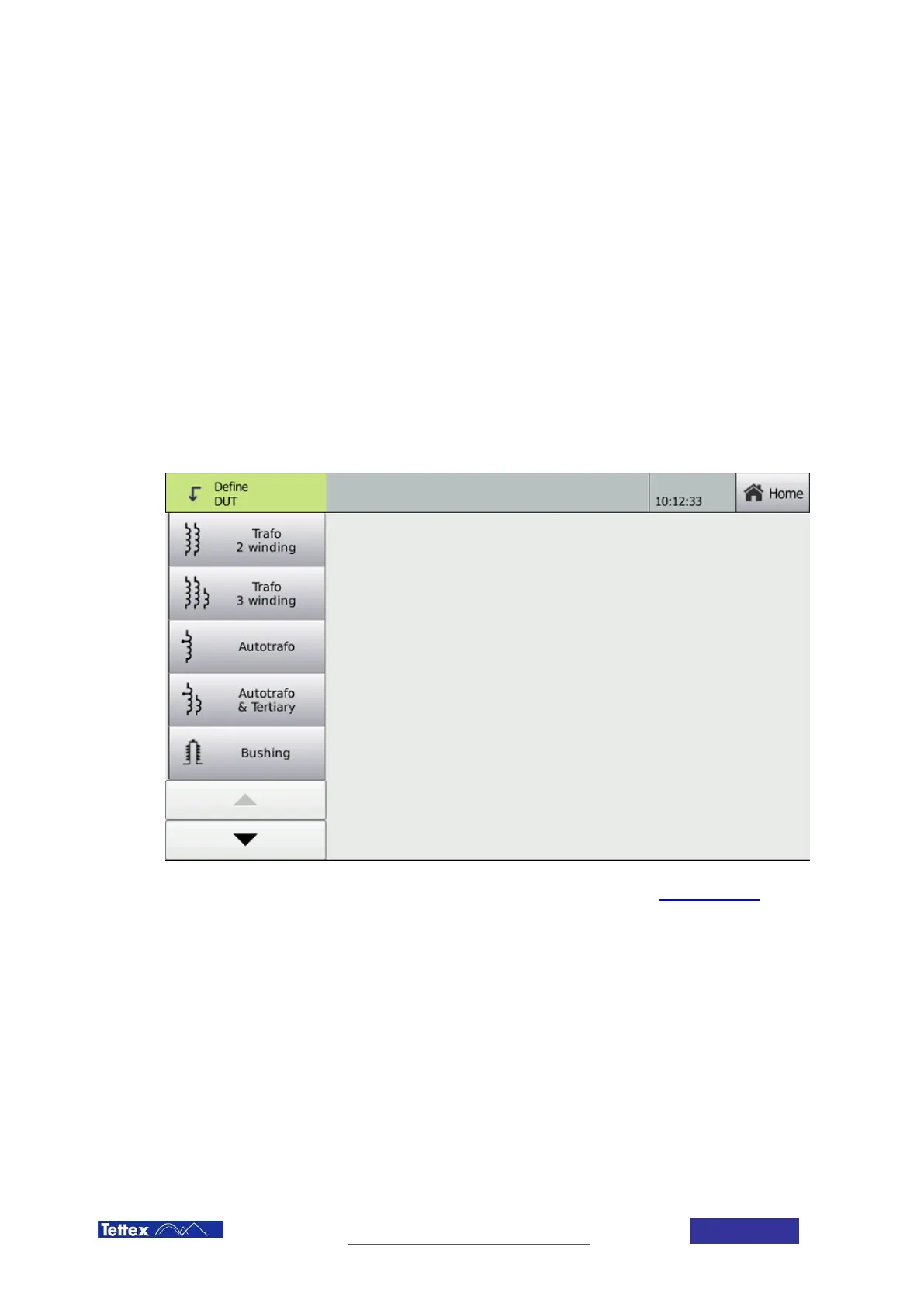

In the first step select the type of DUT you want to perform the measurements on. Use the arrows to scroll through
the options. If you cannot find the type of device you wish to test in the list, please contact support@tettex.ch
. See
chapter 20 Applications Guide to see more detailed description of the supported types of DUT.
