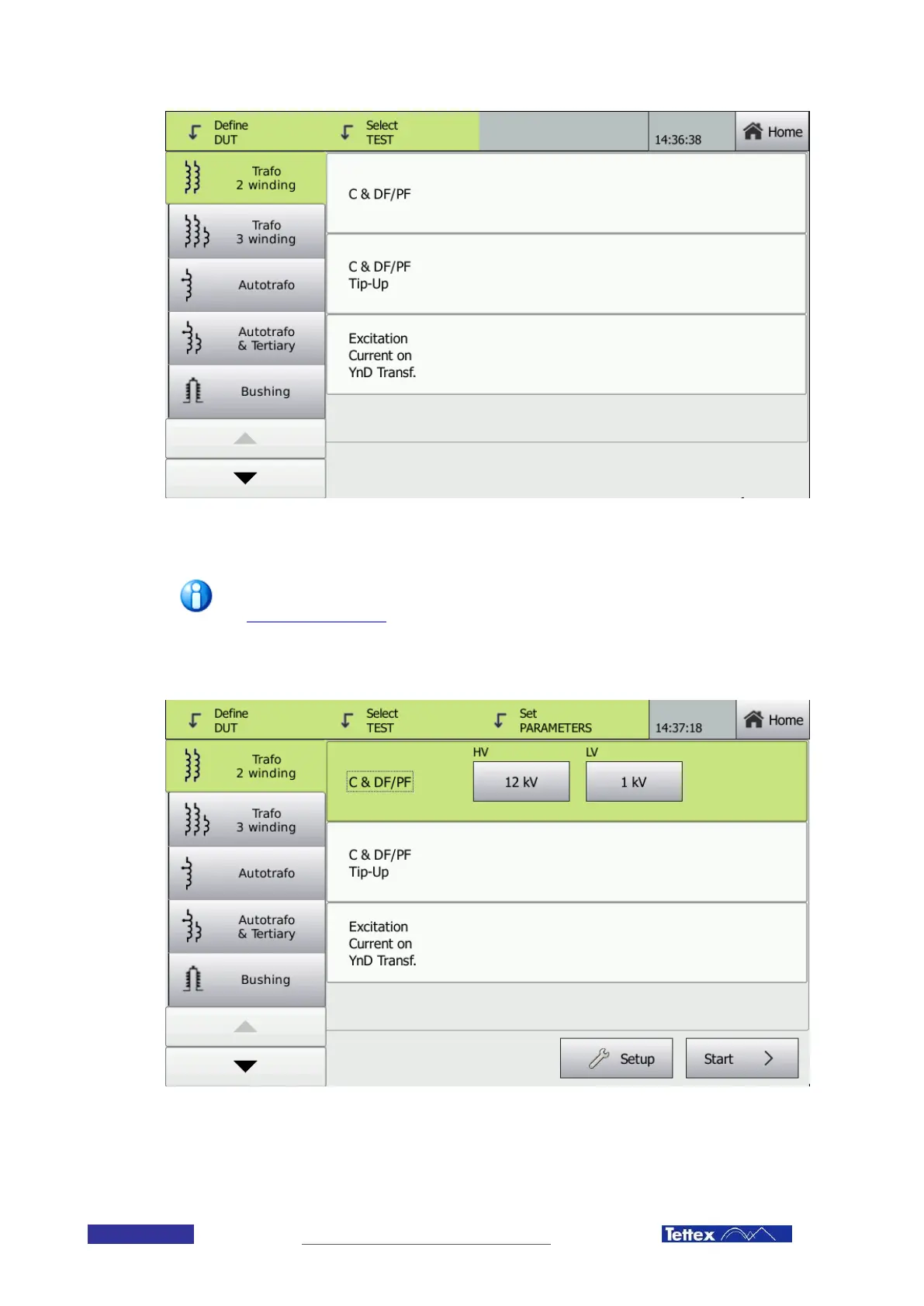

In the next step the desired test is selected. For each type of DUT there are predefined tests available which cover
the most common tests for the selected test objet. Select a test.
Not all possible tests are available for every type of DUT. In order to keep the
choice more clear, only the commonly used tests for each type of DUT are
implemented. If you are missing a specific test please inform us at
support@tettex.com
. If you want complete freedom of test definition please use
advanced mode.
In the next step the test parameters are defined.
You can now determine the voltages you want to apply for measurement. If there is more than one winding where
the HV will be applied during the test, you have to select the test voltage for every winding. Make sure the test
voltages are within the rated values of the corresponding windings.
Example: If the HV side of a transformer is rated 36 kV and the LV winding is rated 2 kV, you can chose whatever
voltage you like for the HV side. When connecting to the LV winding you have to select voltages <= 2 kV.
