10.4.1 Status Bar

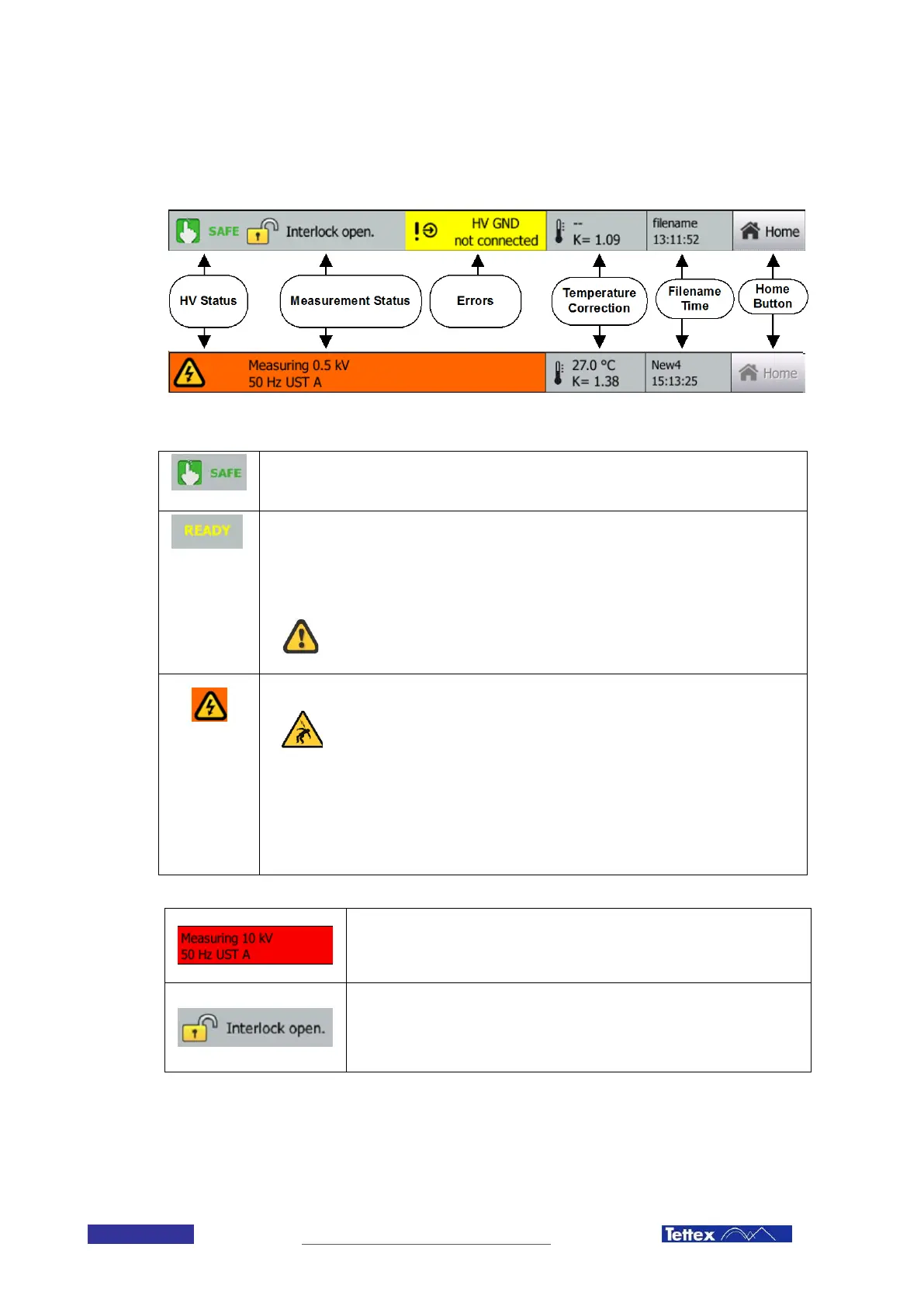

The status bar is common to all measurement modes. It informs the user about the safety status of the device.
Information about the current file, time and the temperature correction are also displayed.
HV Status
The HV status informs the user if the high voltage is on, and if there is any danger for electrical shock.
Safe
High voltage output is short-circuited. No danger from the device.
Ready
Device is ready to start high voltage output. No warnings or errors are present. Pressing the
start button will turn on high voltage.
Do not touch any parts that may be under high voltage, because one action will start up high
voltage.
Caution: High Voltage possible anytime! The system is
ready to switch high voltage on anytime. You have only to
press the “Start” button to switch high voltage on.
High Voltage ON
Warning: High Voltage is live!
The High Voltage is switched ON and active. Never attempt
to disconnect the high voltage test cable or the low voltage
lead(s) from either the terminals of the test specimen to
which they are connected at the outboard end, or from the
receptacles on the instrument at the inboard end. Attempts
to disconnect leads while the MIDAS micro 2883 is
energized may result in a serious and possibly lethal
Measurement Status, Errors and Warnings
Measurement Information
Informs the user about the voltage, frequency and connection which is currently
measured
Interlock Open
The Interlock open status indicates, that either the handheld device or the foot
switch (whichever is used) is not pressed at the moment, preventing the user
from starting high voltage output.
