15.1.3 Bushing Adapters for Measurement of C1

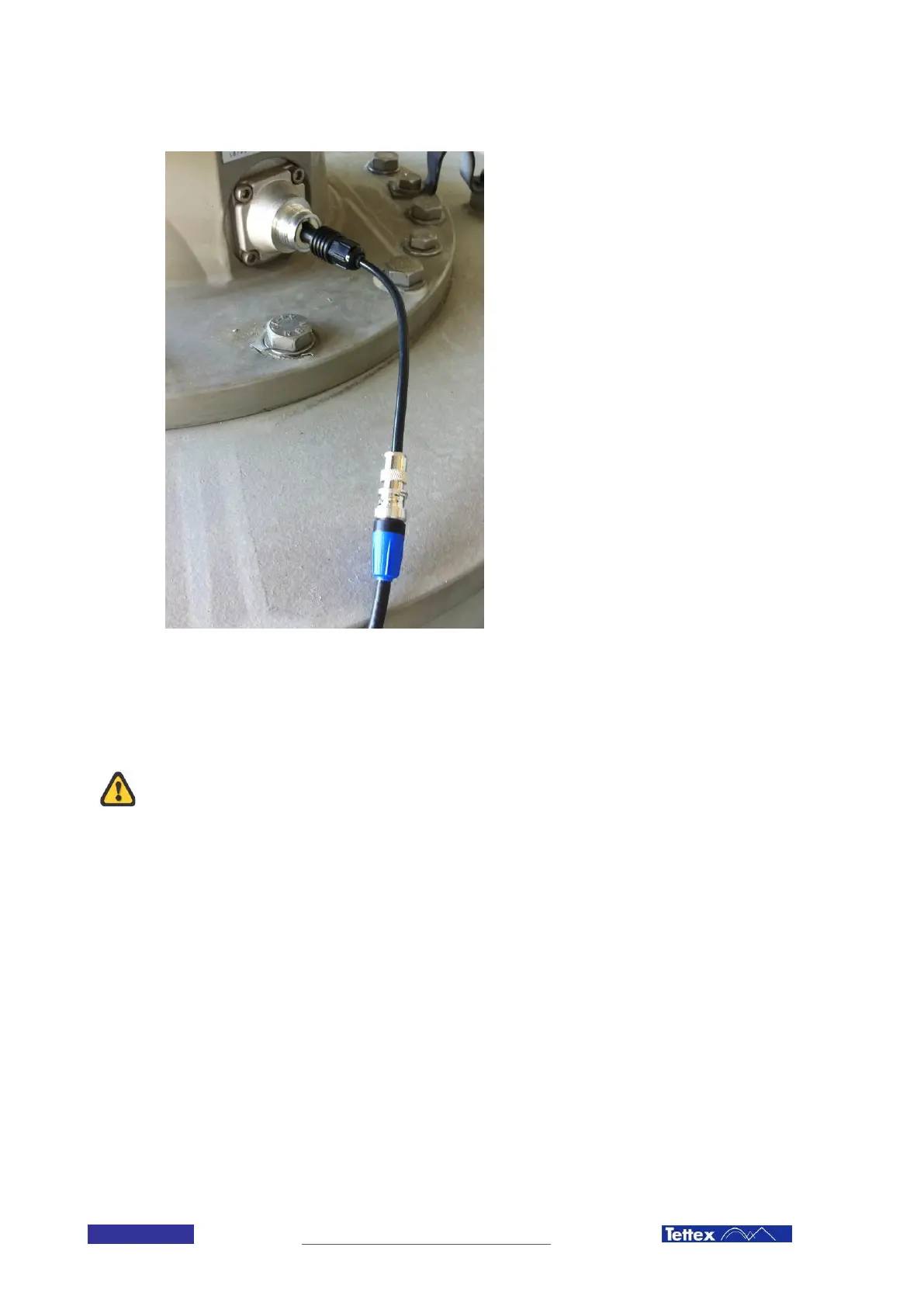

Connecting to a bushing tap using the adapter cable.
The standard scope of supply includes two adapter cables (part number 4843453). They can be used to connect to bushings
with a 4 mm test tap (i.e. Micafil type). Measured is the C1 of the bushing, see chapter 20.1 Bushings for more details.
The adapter cable is connected on one side to the bushing test tap and on the other side to the BNC connector of the
measurement cable.
Only use these adapter cables together with the measurement cables for C1
measurements.
Do not use them for C2 measurements with High Voltage.
