12.5 Limits Tab

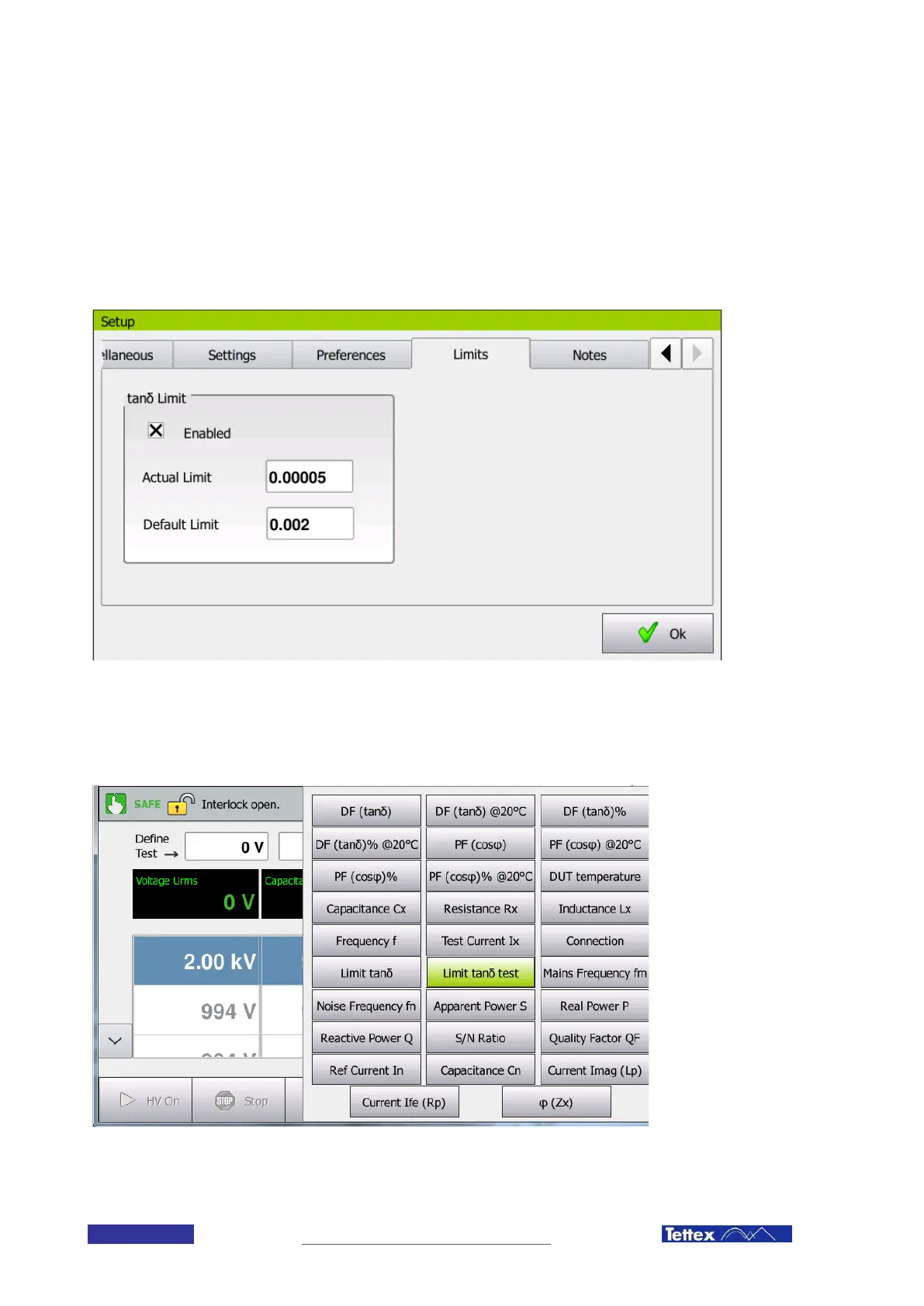

It is possible to define a tan delta limit as a pass/fail flag for the test, on this screen the Actual Limit and the default Limit can be
defined. If the limits are enable a pass fail flag column will be added to the results after selected
Actual limit is the value to be used on the actual test
Default limit is the default limt defined when a new test is selected
Limits are defined for a complete test, and should not be changed during the measurement.
12.5.1 Limits in Basic mode
To see the pass/Fail flag, select “Limit tanδ test” in one of the indicators. Then a Green “Pass” or a red “Fail square will be
shown after a measuring point is finalized in the corresponding column
