Guided Mode
47
10.4.4 Special Symbols in Measurement Values
Symbol Explanation
r
Stands for reduced voltage. Occurs when the desired voltage cannot be reached because of one
of the following reasons:
No Signal at Cx The voltage is limited to 5 kV in order to prevent high voltages when cables are
not connected correctly.
Voltage is limited over frequency. The full 12kV are only available between 40 and 75Hz. See
chapter 3 Technical Data for more details.
Voltage is limited when the output current is higher than 180mA.
~
Stands for reduced accuracy. Occurs when a measurement was performed in very difficult
conditions (i.e. very low signal over noise ratio). The swung dash indicates that the specified
accuracy cannot be guaranteed for this measurement value.
*
The star indicates that the stray capacitance compensation was active during the tagged
measurement.

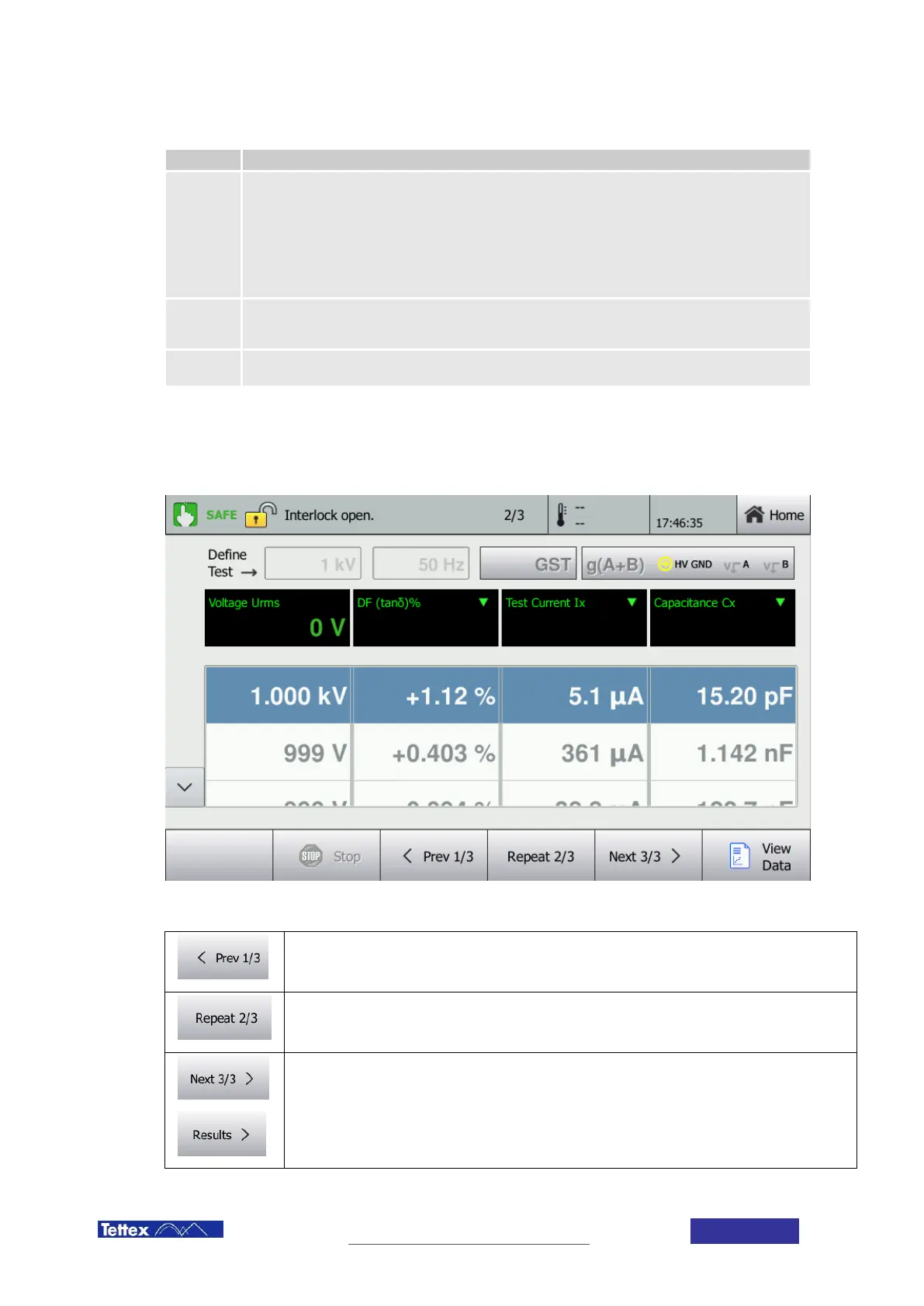

10.4.5 Toolbar
Every time a step is completed the user will be informed by a dialog. The user can then decide how to continue
measurement using the toolbar.
The toolbar allows the user to move forward or backward in the sequence or to review the measured values. The
table below describes the different options in detail.
Previous Step
Leads to the previous step.
Repeat Step
Repeats the measurement of the actual step.
Next Step / Results
If there are more steps to be completed in the measurement sequence, then the button “Next”
continues the measurement by going to the next step
If the last step has been completed, then a Results button will appear. This button leads to the final
Results screen.
