Setup

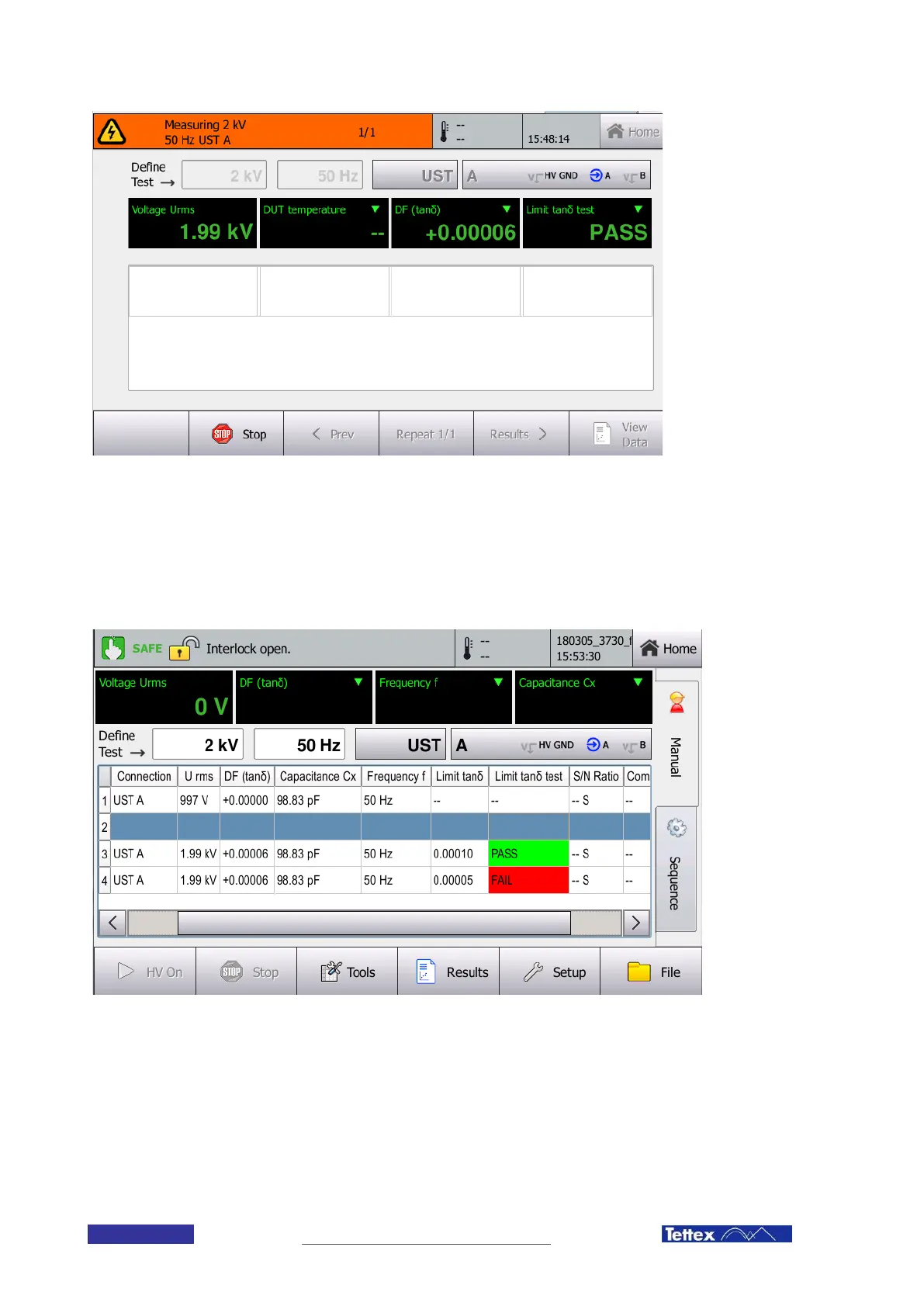

12.5.1 Limits in Advance mode
In advance mode, the limit values can be added as columns to the measurement, 2 columns can be added
• Limit tan δ -> contains the actual value used for comparison
• Limit tanδ test -> the pass/Fail Flag
12.5.1 Limits in Reports and Graph
The limit used for evaluation is recorded for every measurement, and will be shown in the report and in the CSV file for each
row.
