Connector JTAG
For JTAG tool
Connector BSL
For bootloader tool
Orient Pin 1 of MSP430 device
Jumper J1
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
Connector J2
External power connector
Jumper J1 to “ext”
Jumpers JP3 to JP8
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode

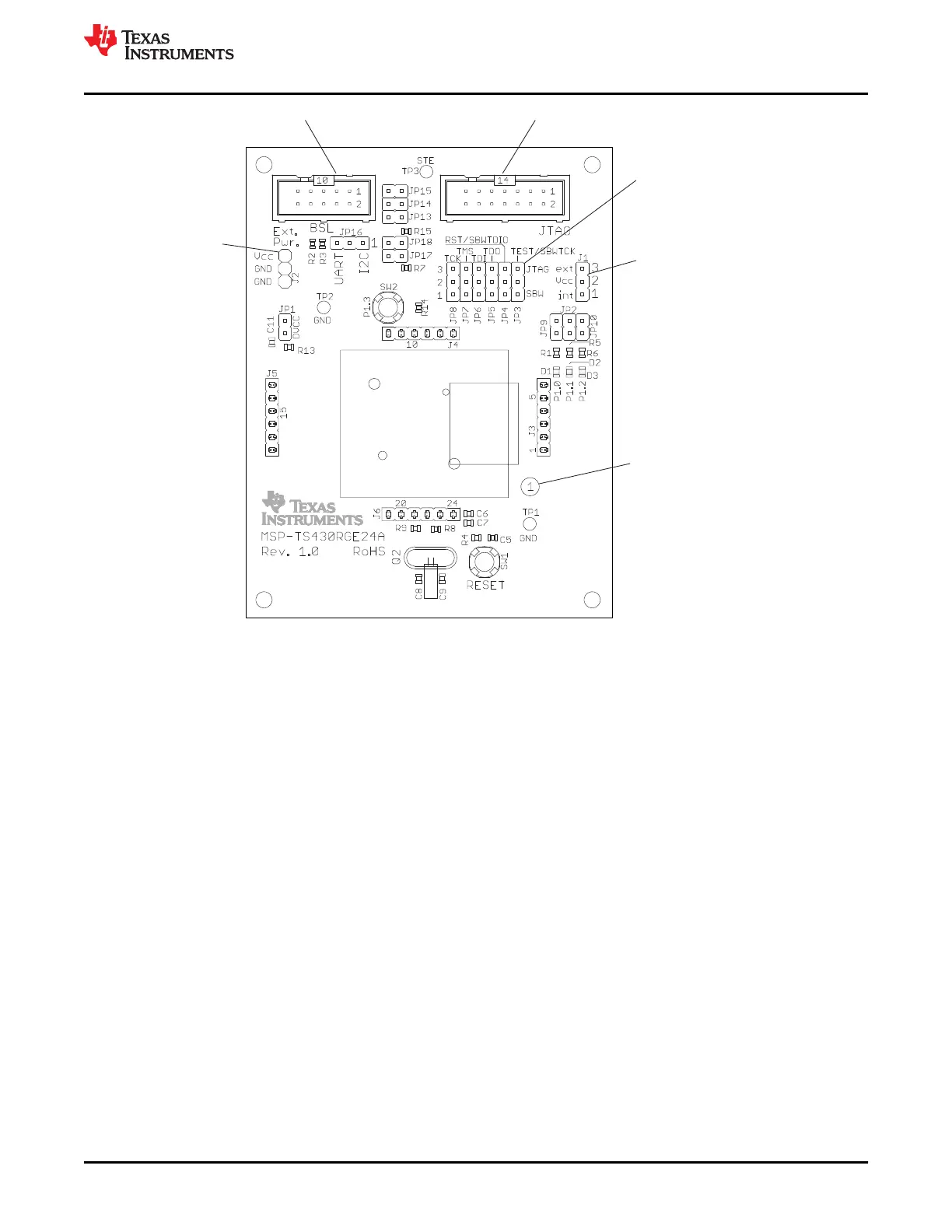

Figure B-17. MSP-TS430RGE24A Target Socket Module, PCB
www.ti.com
Hardware
SLAU278AG – MAY 2009 – REVISED DECEMBER 2020
Submit Document Feedback
MSP430™ Hardware Tools 55
Copyright © 2020 Texas Instruments Incorporated
