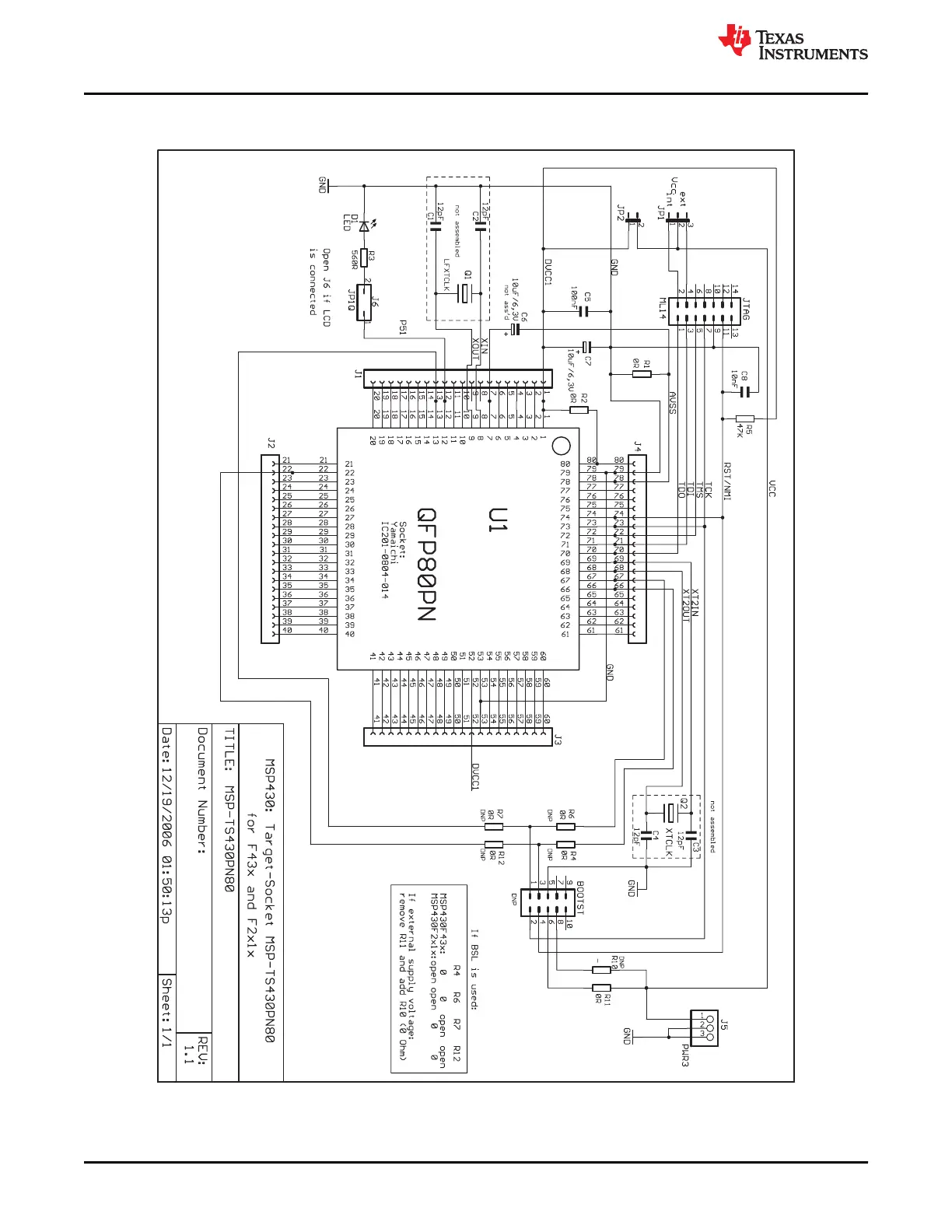

B.29 MSP-TS430PN80
A. For MSP430F47x and MSP430FG47x devices:
Connect pins 7 and 10 (GND) externally to DV
SS
(see data sheet).
Connect load capacitance on V
ref
pin 60 when SD16 is used (see data sheet).
