Texas Instruments MSP430 series

14
1
2
10
1
2
JP11
Jumper JP1
Open to measure current
Orient Pin 1 of MSP430 device
Jumpers JP9, JP2, JP10
Open to disconnect LEDs
D1 to D3
LEDs connected to P1.0 to P1.2
Connector J2
External power connector
Jumper J1 to "ext"
Jumpers JP3 to JP8
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode
Connector JTAG
For JTAG Tool
Connector BSL
For ToolBootloader
Jumper J1
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
SW1
Close to reset

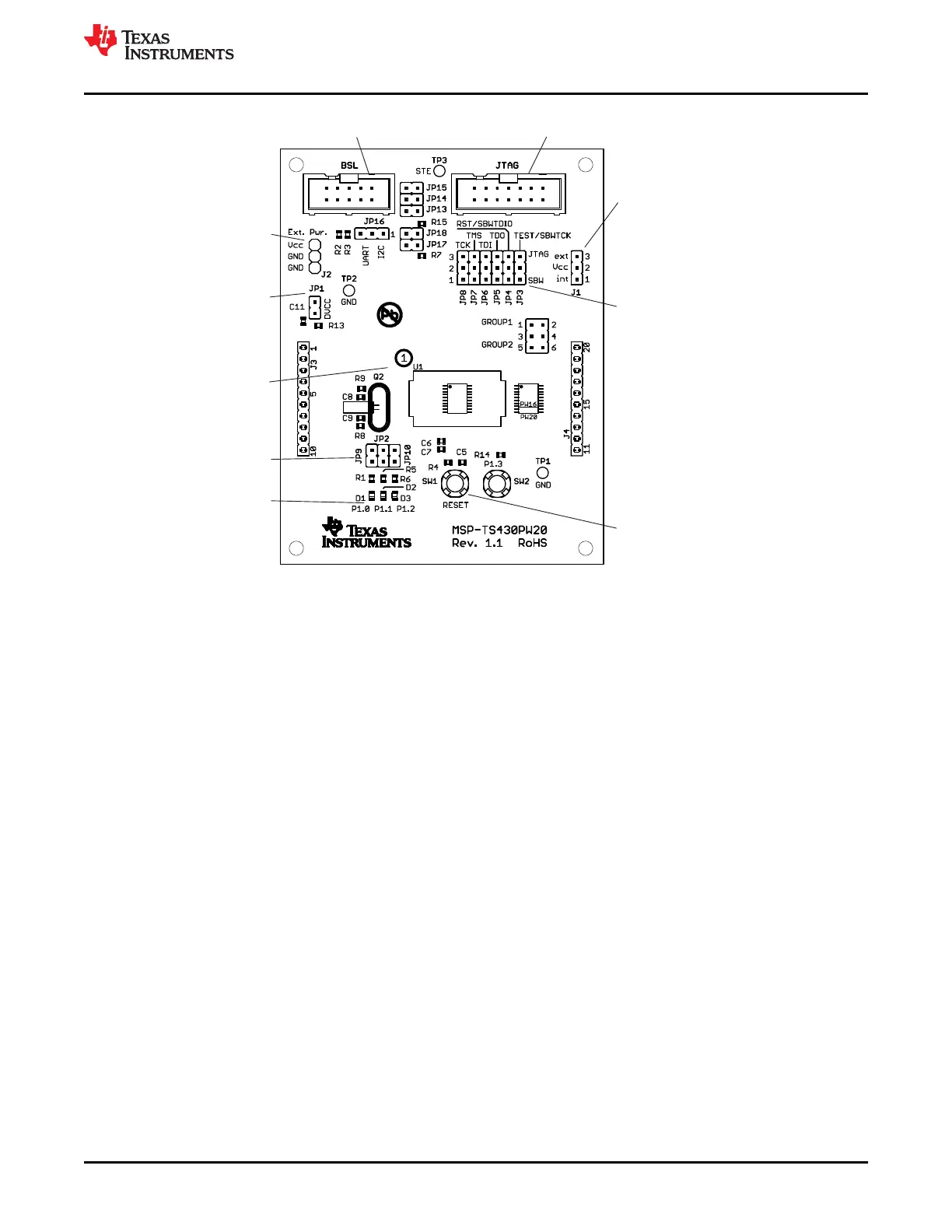

Figure B-11. MSP-TS430PW20 Target Socket Module, PCB
