Texas Instruments MSP430 series

B.34 MSP-TS430PZ100
A. Connections between the JTAG header and pins XOUT and XIN are no longer required and should not be made.

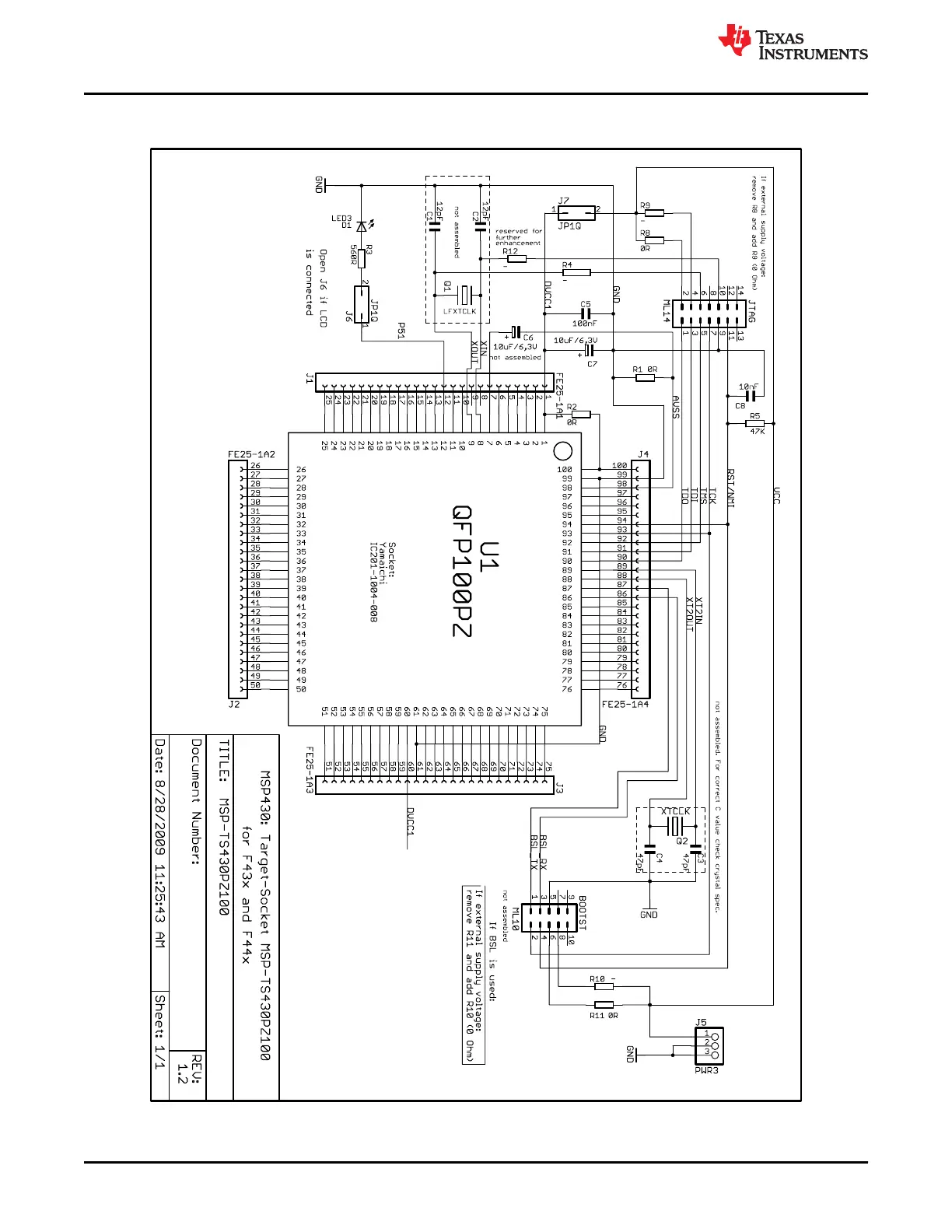

Figure B-68. MSP-TS430PZ100 Target Socket Module, Schematic
