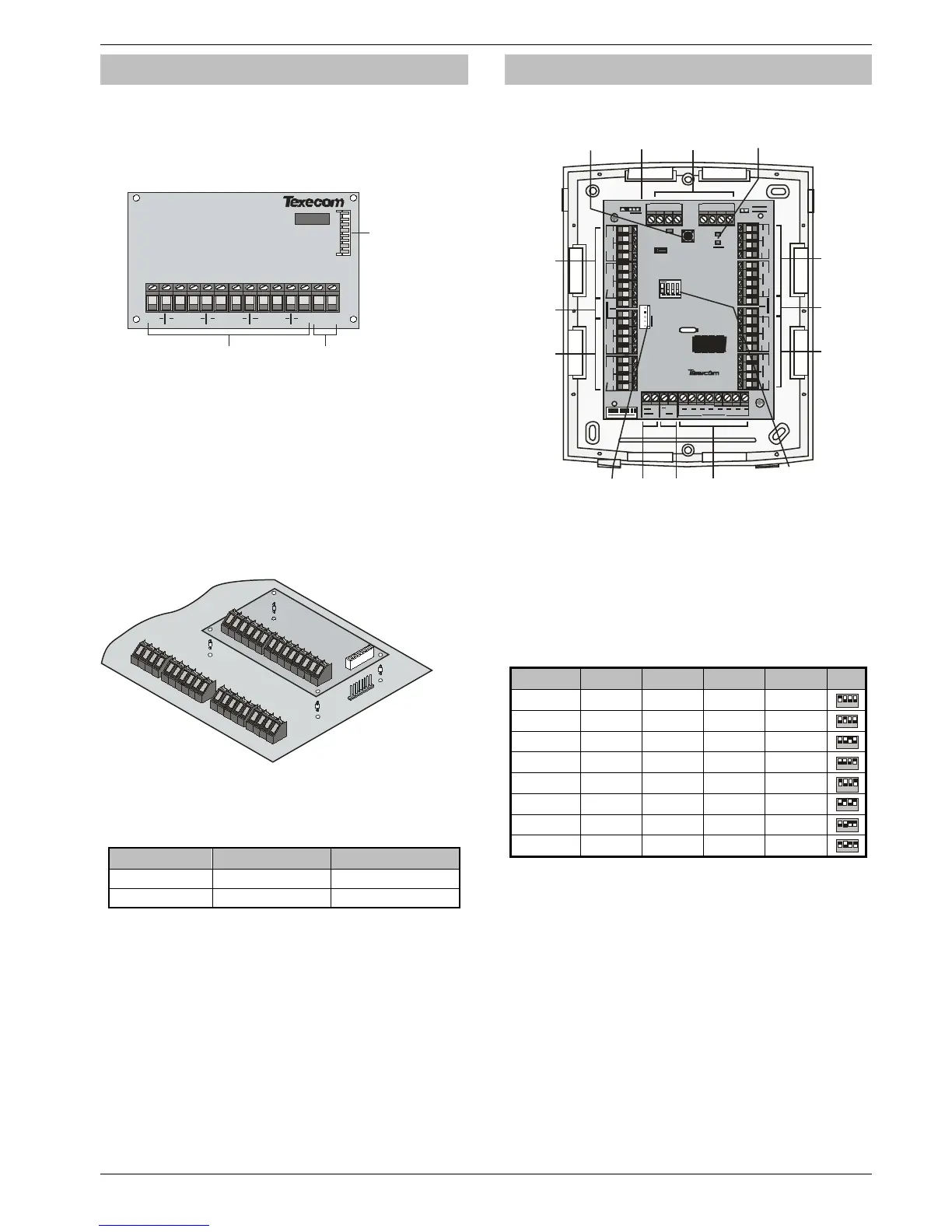

Premier Elite 24,24-W, 48,48-W, 88, 168 & 640 Installation Manual Installation
INS176-9 25
8XE Zone Expander (24 Only)
The 8XE Zone Expander has:
8 fully programmable zones
Aux 12V Output
Expander Layout
Z9 Z11
Z10 Z12
+
-
A ux12
Z13 Z15
Z14 Z16
Aux 12V
(1 Amp)
Zones 9-16 or
Tamp ers 1-8
Connector for
plugging on J P5
control panel
Connecting Expanders
The 8XE local zone expander plugs directly on to the terminals located
on the right hand side of the control panel (see below for details). To
install the local zone expander proceed as follows:
1. Ensure that all power is removed from the control panel (mains and
battery) before attempting to fit the expander.
2. Push the four support pillars (supplied) into the four locating
holes on the control panel PCB.
3. Align the local expander connector with the 8 way plug (JP5) on
the control panel. Push expander into place, ensuring that all
four pillars clip into the four locating holes on the local
expander.
Zone Numbering
The table below shows the zone allocation when the expanders are
installed:
Configuration Panel Zones Expander Zones
8XE = Zones 1 to 8 9 to 16
8XE= Tampers 1 to 8 Tampers 1 to 8
Expander Zones
The expander has eight programmable zones (see page 31 for wiring
details). Each zone is also fully programmable (see page 48 for
programming details).
8XP Zone Expander
Expander Layout
Zones
5 & 6
Po wer LE D
Ta mpe r
S w i tc h
E ngineers
Keypad
I n te r fa c e
Ne twork
Termina ls
Aux
12V
Aux
12V
Zones
7 & 8
Zones
1 & 2
Zones
3 & 4
O utputs
1 to 8
S peaker
Outp ut
Aux
Input
Com Port
Z on e 6 Z on e 5
-
Z on e 8 Z on e 7
TA TA TA TA
+
-
T R
+
-
T R
Z on e
2
Z on e
1
TA
-
+
Z on e 4Z on e 3
TA TA TA
-
-
D
S
Add res s
S w i tc h
Connecting Expanders
Expanders are connected to the network terminals located at the
bottom of the control panel (see pages 20 & 21 for details).
Expander Addressing
Each Expander must be assigned a different address using the DIL
switches located in the centre of the PCB. The table below shows the
expander addressing:
Address DIL 1 DIL 2 DIL 3 DIL 4
1* On or off Off Off Off
2
4
3
1
2* Off On Off Off
2
4
3
1
3** Off Off On Off
2
4
3
1
4** Off Off Off On
2
4
3
1
5*** On Off Off On
2
4
3
1
6*** Off On Off On
2
4
3
1
7*** Off Off On On
2
4
3
1
8*** On Off On On
2
4
3
1
Never set two expanders on the same network to the same
address.
* 24/48/88/168/640
** 48/88/168/640 only
*** 88 168 & 640 only
Expander Zones
The expander has eight programmable zones (see page 31 for wiring
details). Each zone is also fully programmable (see page 48 for
details).
