Texecom Premier Elite 24

Installation Premier Elite 24,24-W, 48,48-W, 88, 168 & 640 Installation Manual
34 INS176-9
Panel Outputs
The control panel has five programmable outputs, which can be used
to drive auxiliary devices such as LED’s, sounders or relays etc. (see
page 76 for details). The table below shows the electrical
characteristics for each output:
No Max Current Type
1 500mA Switched -ve
2 500mA Switched -ve
3 ** 500mA Switched +ve
4 ** 500mA Switched +ve
5 ** 3A Relay

** 88/168 & 640 only
Wiring Outputs

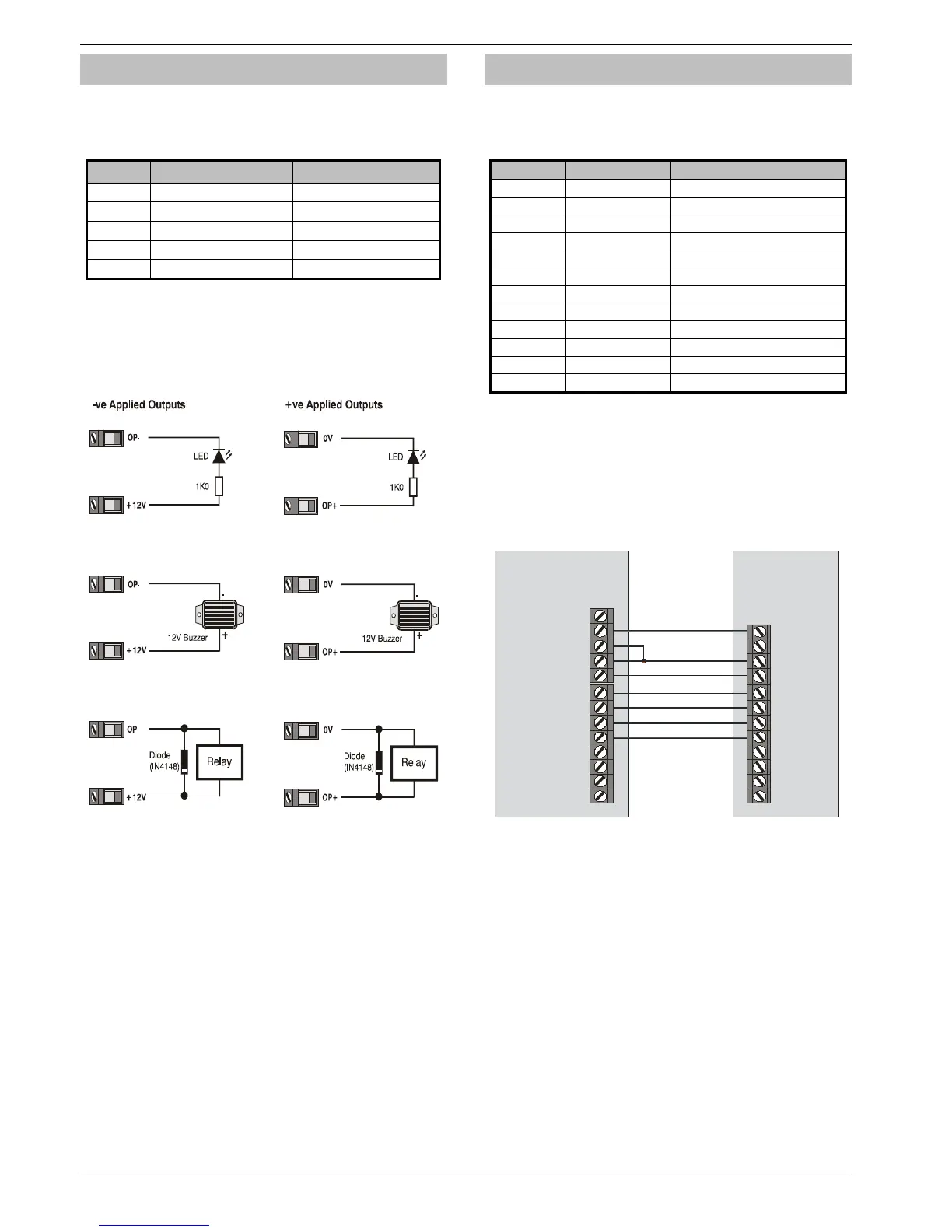

The diagram below shows some typical wiring examples:

For details on testing outputs, see page 113
Digicom Outputs 1 - 8
The control panel has eight programmable outputs, which can be
used for connecting to a stand-alone communicator (see page 77 for
details). The table below shows the electrical characteristics for each
output:
Terminal Max Current Operation
1 100mA Switched 0V
2 100mA Switched 0V
3 100mA Switched 0V
4 100mA Switched 0V
5 100mA Switched 0V
6 100mA Switched 0V
7 100mA Switched 0V
8 100mA Switched 0V
L/M N/A 12V applied = Line Fault *
R/R N/A 0V applied to reset
DC+ N/A +12V Power (unfused)
DC- N/A 0V Power
* Control Panel Line Fault Input (L/M)
In accordance with BSIA form 175, the line fault input on the control
can detect a single or a dual line fault for use with the ATS Remote
Test output type
Wiring a Stand Alone Communicator
The diagram below shows a typical wiring example:
C ontrol
Panel
Power
1
2
3
4
5
6
7
8
12 V
0V
S tand Alone
C ommunicator
NO
NC
C
DC +
L / M
R / R
DC -
1
2
3
4
5
6
7
8
C ha nne l I npu ts
Progra mmed
as Positive
Removed
Lin e Fa ult
D igic o m
Outputs

For details on testing the digicom outputs, see page 113
