Texecom Premier Elite 24

Premier Elite 24,24-W, 48,48-W, 88, 168 & 640 Installation Manual UDL & Digi Options
INS176-9 99
Chiron IRIS
The Chiron IRIS Touch range of communicators offers a way of
transmitting alarm signals to an Alarm Receiving Centre (ARC) over
an Ethernet (IP) path, GPRS path, and PSTN path or a Combination
as opposed to using a traditional PSTN lines.
To connect to the control panel an RS232 Interface is required. For
the IRIS 400 series this is a modified PC-Com JAA-0001 and for the
IRIS 600 series is a Chiron Tex 600 lead.
The TTL connection is made to either Com1 or Com 2 on the
Control panel.

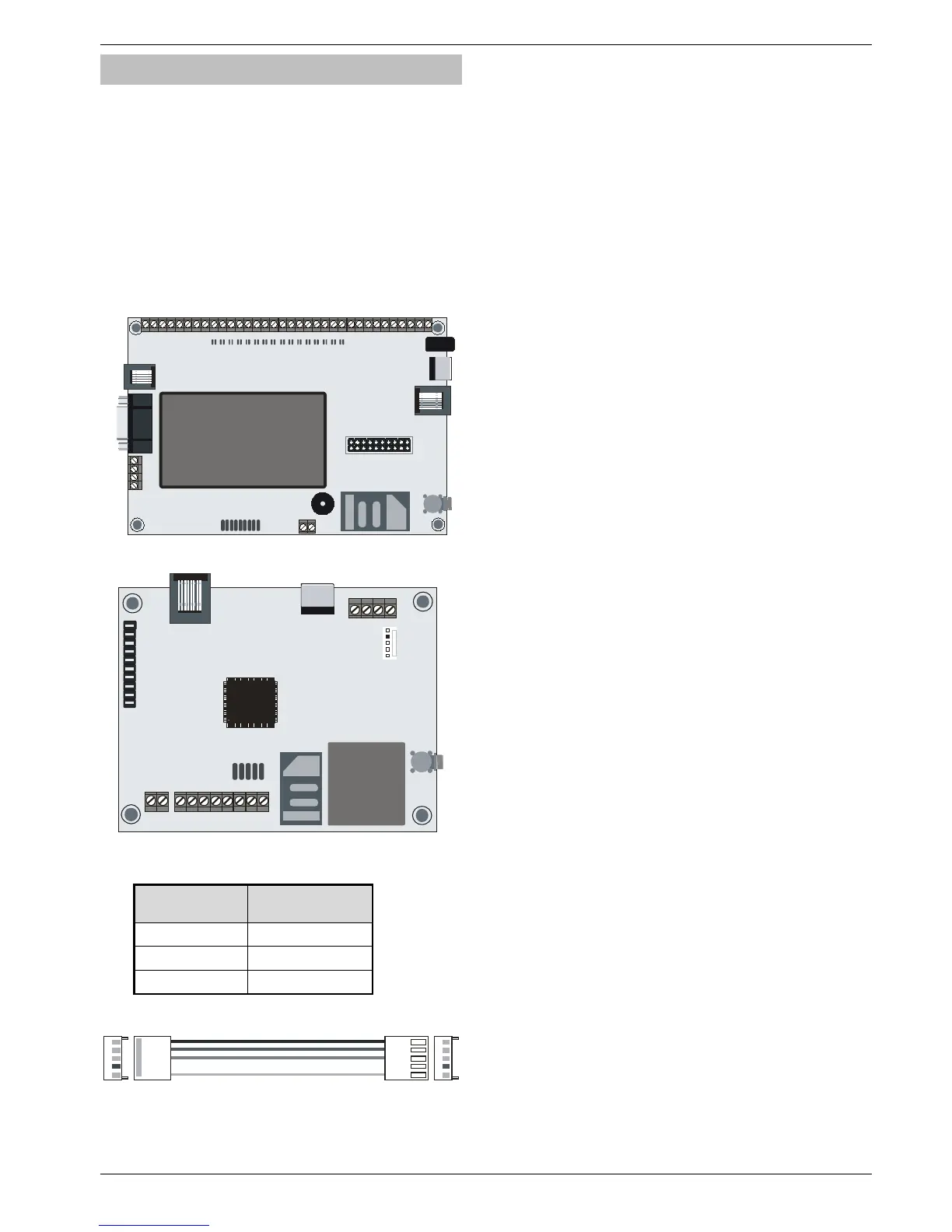

PCB Layout
A-A B -B C -C D-D 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
0V FOR INP UTS
INP UTS
INP UTS
TAM P E R
R s 485
D- D+ T- T+
P OWE R
S YS
P OLL
DIAL
US B
S ER IAL
RF
GPR S
E TH
PSTN
Chiron IRIS 400 Series
Aux
Voltag e
Serial RS 232
R ela y Outputs
Pin Inputs
E thernet
0V for Pin Inputs
Dia l
C apture
Antenna
S IM C a rd
A-A B-B
1 2 3 4
12V 0V
A B
POLL
SER
SYS
GPRS
E TH
IN P UT S
R EL AYS
Chiron IR IS 600 S eries
Aux
Voltag e
S erial
R S 232
E thernet
Antenna
S IM C a rd
Aux
Voltag e
PC Com Modification
Cut the DB9 Male end of off the PC Com and wire as follows
IRIS RS232 (DB9
Female)
PC Com
Pin 2 Yellow
Pin 3 Blue
Pin 5 Black
Tex600 Lead
300mm
Programming
For both Alarms and Wintex upload/download the following should
be programmed.
UDL/DIGI Options
For full details on the options listed please see page 84 to 94
Program Digi
Arc 1 Protocol
i.e. Fast Format, Contact ID, or SIA level 2/3.
Primary No
Set this to the IP address of the Monitoring Centre in
a 12 digit format 80.176.196.135 = 080176196135
Secondary No
Leave blanks as the IRIS System will receive the
secondary number from the Monitoring Centre
Secure Apps platform.
Account Number
Enter in the account number from the Monitoring
Centre, 4or 6 digits.
Dialler Attempts
Leave as the default 3
Report options
The Reporting Options will change depending on the
alarm format selected, please set up the various
reporting option for the Alarm event you wish to send
to the Monitoring Centre
Config
Enable the Connect via IP (Key press 7).
Digi Options
Enable the Digi (key press 1) you should now see E on option screen
now.
UDL Options
UDL Password Must match the UDL password in Wintex
Setup Modules
Setup IP Data 1 = ComIP Address for the IRIS e.g. 192.168.0.10
2 = ComIP Port
3 = ComIP Gateway e.g. 192.168.001.001
 To use DHCP leave the ComIP Address &
Gateway blank
ComIP Netmask Enter the network subnet mask i.e. 255.255.255.000
Polling/SMG IP
Set this to the IP address of the Monitoring Centre in
a 12 digit format i.e. 80.176.196.135 =
080176196135.
Com Port Setup
Com Port 1 Set to IRIS IP Module
GPRS Info
To programme the APN and the User Name & Password please see
page 93
To programme and commission any other features of the IRIS units
please refer to the Chiron IRIS installation manual.
