EX-TRACK
®
Operator Manual, Revision T-124

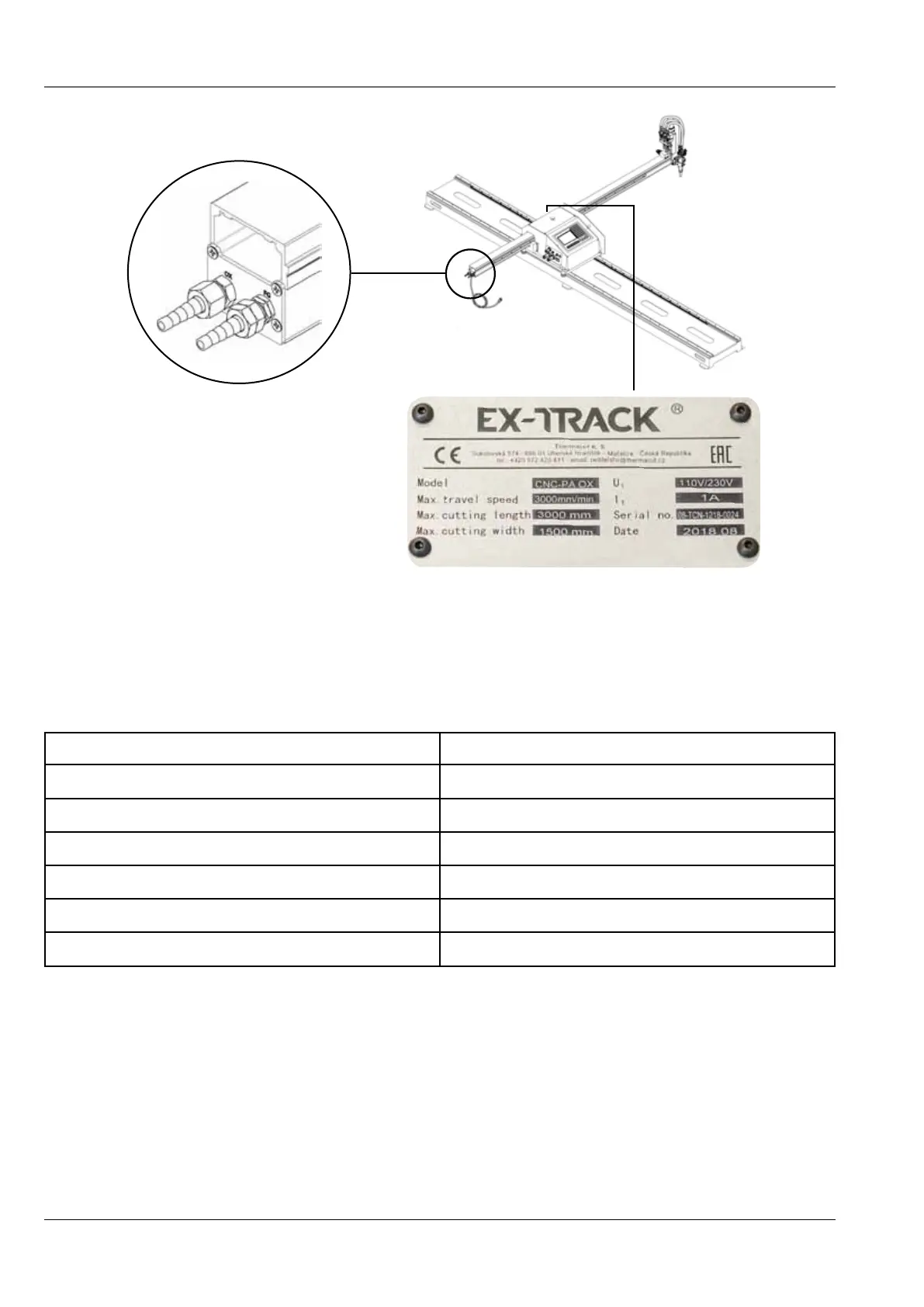

Oxy fuel input connectors:
OX - Oxygen
FG - Fuel gas (Propane)
Name plate fixed to the back of the main unit.
3.3. Technical parameters
Cutting area (mm) 1500 × 3000
Supply voltage AC110V/230V - 50HZ
Cutting torch 1
Cutting speed (mm/min) 50–3000
Maximum position speed (mm/min) 3000
Overall dimensions (l × h × w ) (mm) 3500 × 370 × 2200
Weight (kg) 134
3.4. Torch height controller
Oxy fuel Torch: comprises of torch body, two-way valve, gas supply hoses and fittings.
Plasma Torch: comprises of torch body, mounting tube, combined power cable/air hose lead set
and consumables.
WARNING: Do not use EX-TRACK® CNC unit with high frequency ignition plasma systems!
HF ignition can damage the unit.
To Next Page
