EX-TRACK
®
Operator Manual, Revision T-130

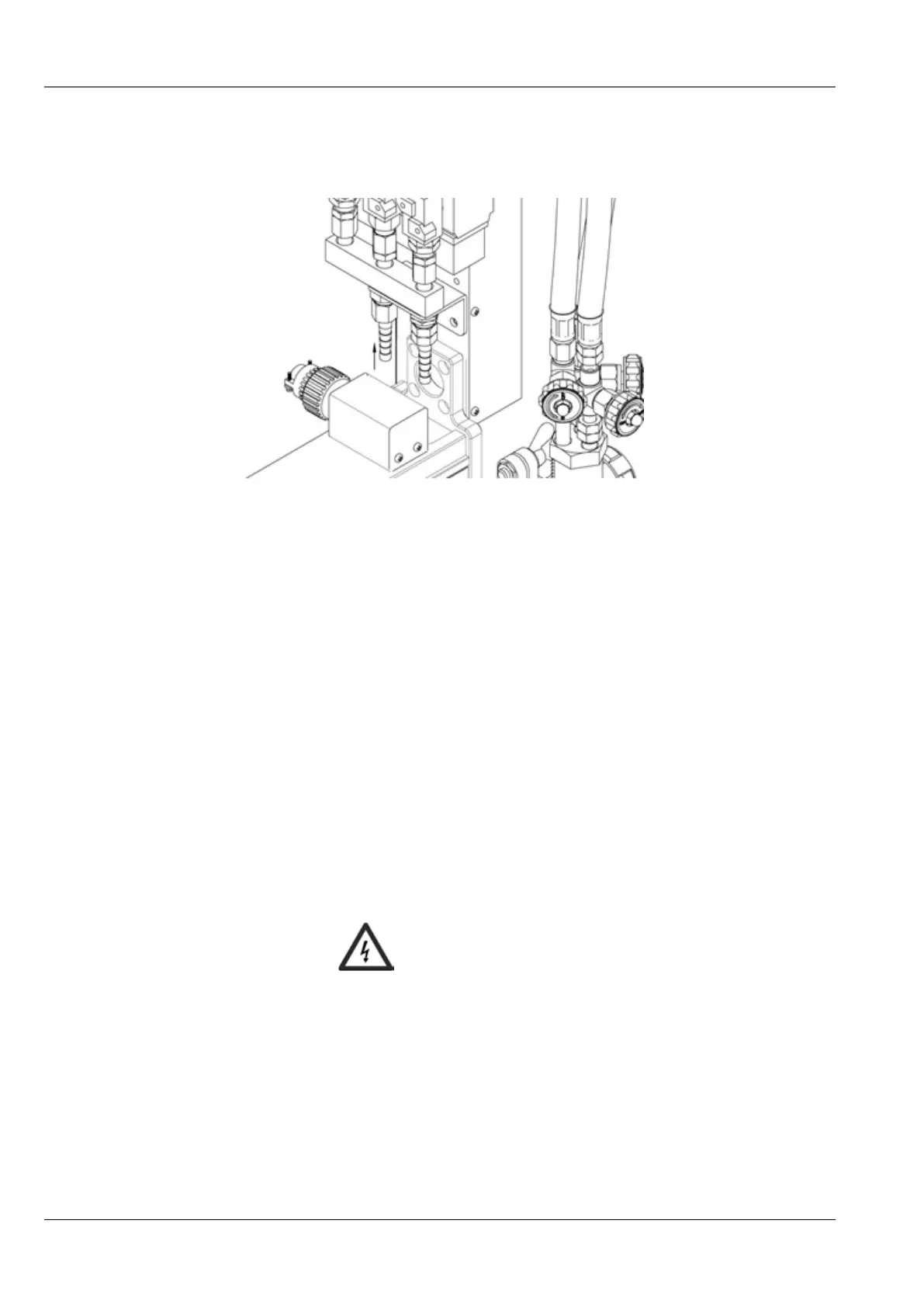

4.2.5. Gas supply connection
Connect the oxygen and fuel gas hoses to the manifold.
NOTE: OXY FUEL HOSE SAFETY
The hoses are color coded, RED for fuel gas and Blue for oxygen, the hose fittings have dissimilar
threads, the fittings on the fuel gas (RED) hose are “Left hand or Anti-clockwise” threads, the fittings
have a small groove machined in to the external surface as an identification mark. The fittings on the
oxygen (BLUE) hose are “Right hand or Clockwise” threads.
When the connection of the gas cutting equipment has been completed, a full working pressure
leak test should be performed. Use a suitable leak test product, ensure that there are no leaks prior
to use.
The Oxy fuel hoses fitted to this system are standard Ø8mm internal diameter hoses. Where
possible use the minimum length of hose between the gas supply point and the EX-TRACK
®
, this
reduces the risk of excess hose being damaged or causing a trip hazard. A shorter hose length may
improve gas flow.
4.2.6. Electrical connection
Check the input power voltage of the system before operation. The input power voltage should be
in the range of ±10% of the rated voltage. The system should not be operated outside of the range
specified on left side panel.
Insert the plug for the torch height motor (four pins) into the socket on the side of the main unit.
Connect the power lead to the main unit. (AC220V/AC120V for US). Connect the oxygen and fuel
gas supply hoses and tighten.
