EX-TRACK
®
Operator Manual, Revision T-168
CORNER RADIUS: radius to execute at corners in order to blend motion.
ARC SPEED: speed for cutting holes with radius smaller than Small Hole Radius.

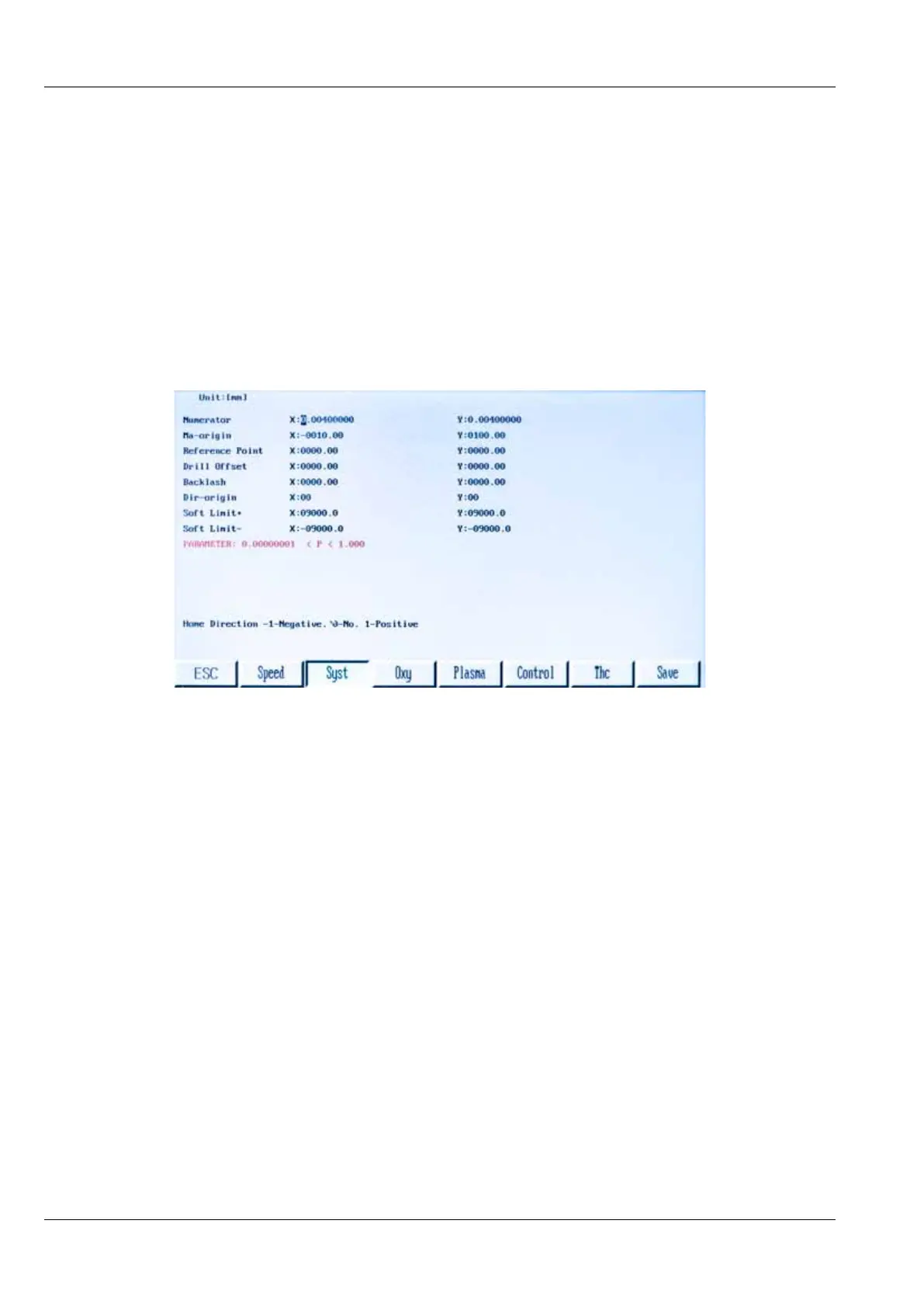

9.8.3. System parameters
The system parameters are accessed in the SETUP menu by pressing the [F2] key.
WARNING: Do not change the parameters below - except SOFT LIMIT parameters. Pre-adjusted
from the factory!
NUMERATOR: numerical analysis used for positioning accuracy.
MA ORIGIN: start point for the System Coordinates.
REFERENCE POINT: start point for the Program Coordinates.
DRILL OFFSETS: Function not used with EX-TRACK
®
CNC SYSTEM.
BACKLASH: Function not used with EX-TRACK
®
CNC SYSTEM.
DIR-ORIGIN: travel direction when the system returns to the start point.
SOFT LIMIT+: Software controlled limit in + direction. Maximal + lenght of the movement (cutting
area limitation). For activation SOFT LIMIT fuction go to CONTROL menu and set: SOFTWARE
LIMITS EF - „1“.
