PIERCE TIME: travel dwell period after arc-on signal is received, starts plasma piercing sequence.
Dwell period to suit material thickness.
FIRST PIERCE TIME: while the cutting program has more than one piercing point, the first piercing
time will be increase the set time for the gas preflow delay.
WATER INJECTION (0/1): while the main arc on, the water cooler cycle on: This function for water
cooler torch NOT USED here.
DIS.COR OFF AHCS: the corner distance to shut off the height controller: while the torch running
the corner to set distance, the height controller will be shut off.
SPEED FOR OFF AHCS: the speed to shut off the height controller: The cutting speed low than this
set parameter, the height controller will be shut off. This function main for cutting small hole.
9.9.1. Control parameters

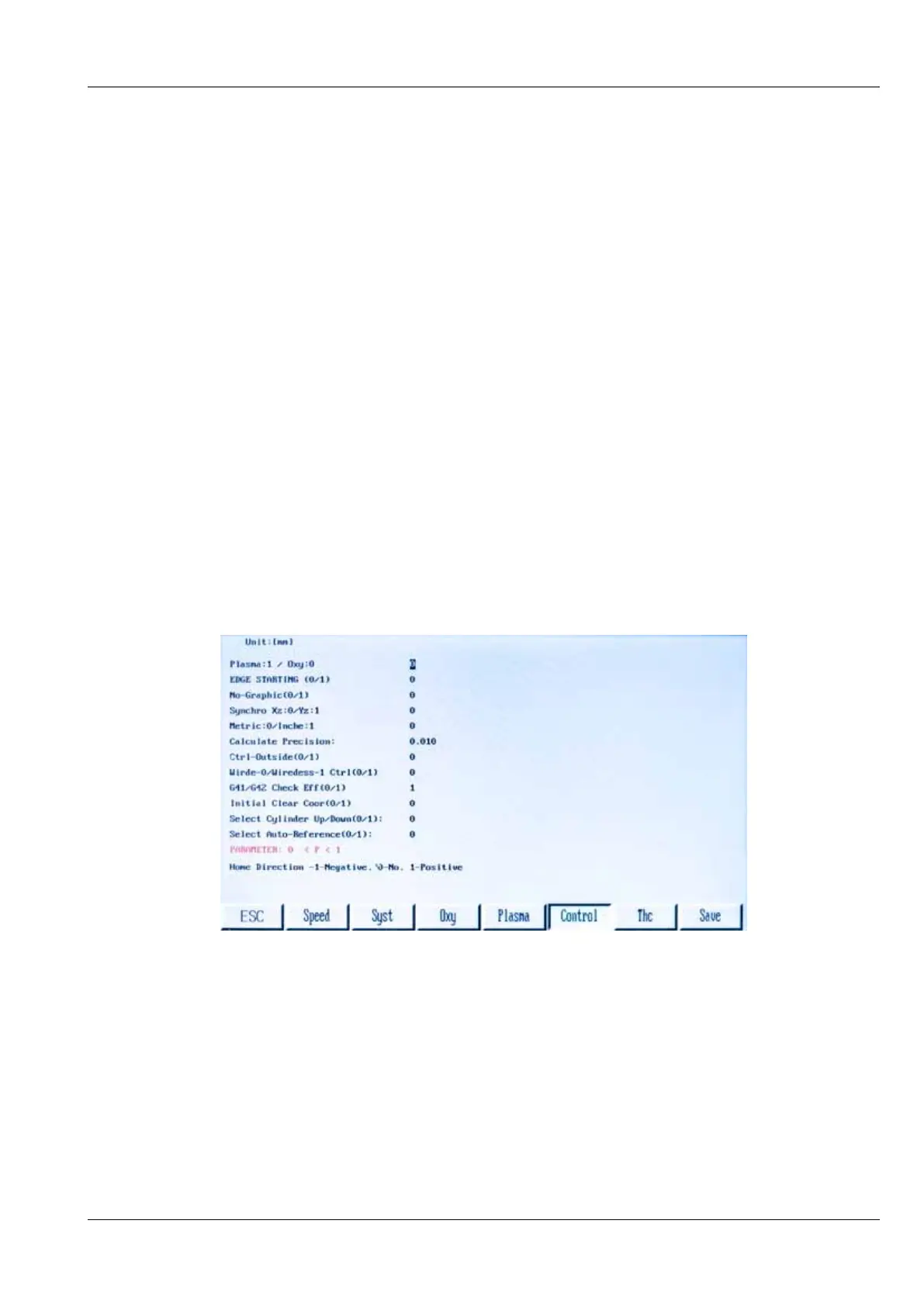

The control parameters are accessed in the SETUP menu by pressing the [F5] key. Use [↓] for more
parameters.
*PLASMA:1 / OXY:0: in Auto/MANUAL Modes, select 0 for oxy fuel and 1 for plasma.
*EDGE STARTING: is used to trim profile/plate edges; it is also used to cut within a profile that
already has a drilled/pierced hole. Edge starting can be used to cut thick and thin material.
*NO-GRAPHIC: in Auto Mode, stops on-screen display of the program parts, time is saved when
cutting a large nest/program.
*SYNCHRO XZ:0 / YZ:1: function not used with EX-TRACK
®
CNC SYSTEM.
